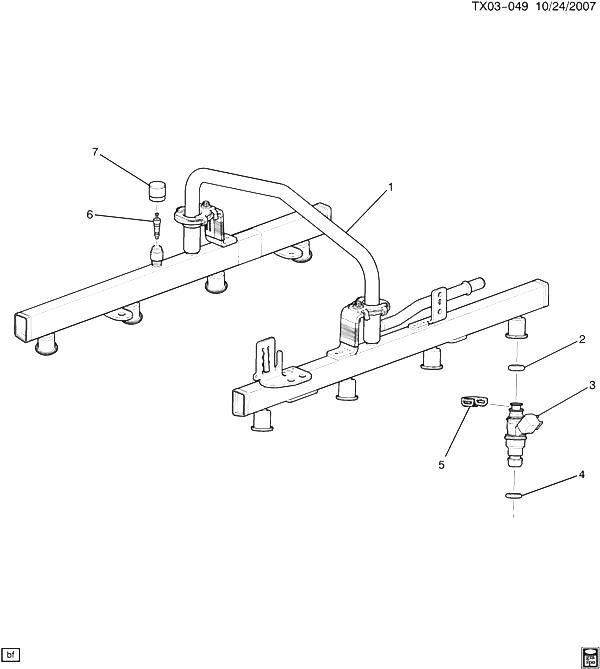

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12621668 |
RAIL, M/PORT F/INJN FUEL (HAS CRIMPED CROSSOVER TUBE RETAINER) (INCLS 6) |
ST1 (LH9) |
2010-2012 |
01 |
| 002 |
|
SEAL, F/INJR (O RING) (PART OF 3) (*KIT1) |
|
2010-2012 |
|
| 003 |
12613411 |
INJECTOR, SEQ M/PORT FUEL (INCLS 2, 4, 5) (ACDelco #217-3411) |
ST1 (LH9) |
2010-2012 |
08 |
| 004 |
|
SEAL, F/INJR (O RING) (PART OF 3) (*KIT1) |
|
2010-2012 |
|
| 005 |
12570620 |
RETAINER KIT, F/INJR (PART OF 3) (W/ 8 RETAINERS) (ACDelco #12570620) |
ST1 (LH9) |
2010-2012 |
06 |
| 006 |
|
VALVE, FUEL PRESS SERV (PART OF 1) (*KIT2) |
|
2010-2012 |
|
| 007 |
25532662 |
CAP, FUEL PRESS SERV VLV (CAP FOR PRESSURE TEST SCHRADER VALVE) (*01, 02, 03) (3.163) (ACDelco #214-1044) |
ST1 |
2010-2012 |
01 |
| K01 |
19169305 |
SEAL KIT, M/PORT F/INJR (INCLS 2, 4) (ACDelco #217-3092) |
ST1 (LH9) |
2010-2012 |
01 |
| K02 |
89060523 |
VALVE KIT, FUEL PRESS SERV (INCLS 6, 7) (ACDelco #89060523) |
ST1 (LH9) |
2010-2012 |
01 |
