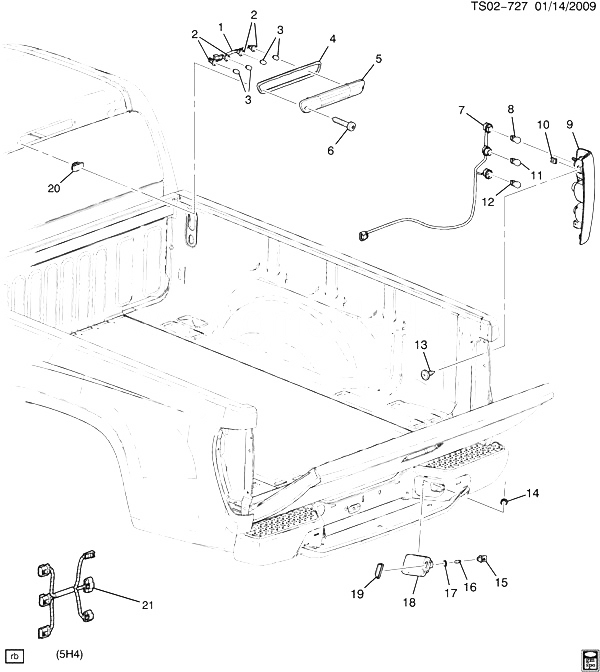

(TS02-727) 2006-2012 ST ЗАДНИЕ ФОНАРИ CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, HIGH MT S/LP (PART OF 5) 2006-2012
002 SOCKET, HIGH MT S/LP (PART OF 5) 2007-2012
003 09437173 BULB, 12 VOLTS, 1 AMP, 12 CP, TRADE NO. 912 (PART OF 5) (ACDelco #L912) 2006-2012 04
004 SEAL, HIGH MT S/LP (PART OF 5) 2006-2012
005 25971002 LAMP, HIGH MT STOP (INCLS 1-4) ST1 2007-2012 01
006 11514479 SCREW, PAN HD C/R W/WA, M4.2X1.41X25, PC (HIGH MT S/LP) 2006-2012 02
007 HARNESS, T/LP (PART OF 9) 2006-2012
008 09441839 BULB, 12 VOLTS, 2.1 AMPS, 32 CP, TRADE NO.3057 (PART OF 9) (ACDelco #L3057) 2006-2012 01
009 20825942 LAMP, TAIL (INCLS 7, 8, 10-12) (INCLS HARNESS SOCKETS) ST1 2006-2012 01
009 20825943 LAMP, TAIL (INCLS 7, 8, 10-12) (INCLS HARNESS SOCKETS) ST1 2006-2012 01
010 NUT, T/LP (PART OF 9) 2006-2012
011 09441839 BULB, 12 VOLTS, 2.1 AMPS, 32 CP, TRADE NO.3057 (PART OF 9) (ACDelco #L3057) 2006-2012 01
012 09441839 BULB, 12 VOLTS, 2.1 AMPS, 32 CP, TRADE NO.3057 (PART OF 9) (ACDelco #L3057) 2006-2012 01
013 20725768 SCREW, PAN HD W/FL WA, M4.2X1.41X13, 8.15 O.D., ABHL PT, 6010M, NO (T/LP) 2006-2012 04
014 11502553 NUT, STAMPED, M6.3 STUD, SELF THD, STL, PC (PART OF 18) 2006-2012 01
015 19120997 SOCKET, B/U LP (PART OF 18) (2-WAY FEMALE W/O LEADS) (MATING CONN W/LEADS USE 12101855) (ACDelco #LS117) ST1 2006-2012 01
016 09442399 BULB, (W5W) (PART OF 18) (ACDelco #W5W) 2006-2012 02
017 SEAL, RR LIC PLT LP (PART OF 18) 2006-2012
018 15886506 LAMP, RR LIC PLT (INCLS 14-17, 19) ST1 2006-2012 01
018 15886507 LAMP, RR LIC PLT (INCLS 14-17, 19) (MATING CONN W/LEADS USE 12101855) ST1 2006-2012 01
019 LENS, RR LIC PLT LP (PART OF 18) 2006-2012
020 11610510 NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (HIGH MT S/LP) 2006-2012 02
