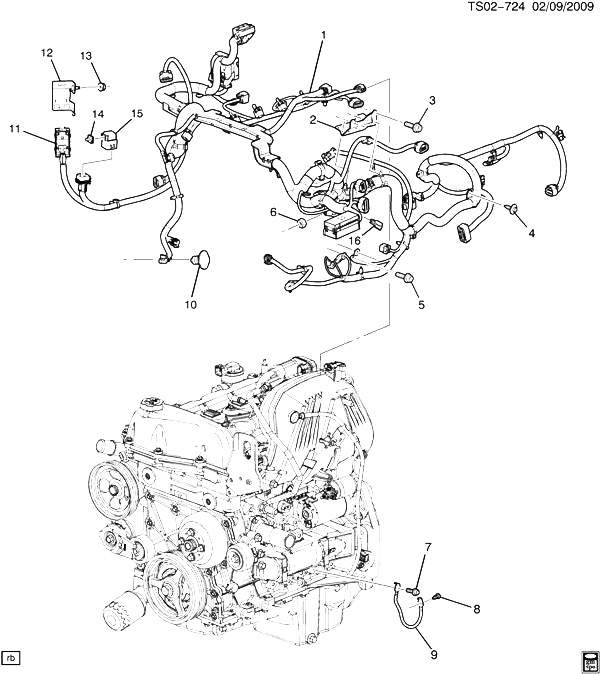

(TS02-724) 2008-2012 ST ЖГУТ ПРОВОДОВ/ДВИГАТЕЛЬ (LLV/2.9-9) CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25982026 HARNESS, ENG WRG (INCLS 11, 12, 14-16) T1 (LLV, M30, C60, UY7) 2009-2012 01
001 25982027 HARNESS, ENG WRG (INCLS 11, 12, 14-16) T1 (LLV, MA5, C60, UY7) 2009-2012 01
001 25982030 HARNESS, ENG WRG (INCLS 11, 12, 14-16) T1 (LLV, M30, C60) (EXC UY7) 2009-2012 01
001 25982031 HARNESS, ENG WRG (INCLS 11, 12, 14-16) T1 (LLV, MA5, C60) (EXC UY7) 2009-2012 01
002 15874095 BRACKET, ENG WRG HARN ST1 (LLR, LLV) 2008-2012 01
003 11517516 BOLT, HFH, M6X1X13, 9.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (ENG WRG HARN BRKT) 2008-2012 03
004 11516703 BOLT, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (ENG WRG HARN CLIP) (8.977) 2008-2012 02
005 11588564 BOLT, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN GND) 2008-2012 03
006 11609467 NUT, HEX, M5X0.8, 4.55 THK, 5 STL, GMW3200 (ENG WRG HARN START MTR LEAD) 2008-2012 01
007 11588564 BOLT, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG GND CBL) 2008-2012 01
008 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (ENG GND CBL (AT FRM)) 2008-2012 01
009 15269946 CABLE, ENG GND (ACDelco #15269946) ST1 (LLR, LLV, UY7) 2008-2012 01
010 15326116 RETAINER, ENG WRG HARN SECD AIR INJN PUMP INLINE CONN (2.530) ST1 (LLR, LLV) 2008-2012 01
011 BLOCK, PWR DISTR-RLY (PART OF 1) 2009-2012
012 BRACKET, SECD AIR INJN PUMP WRG HARN RLY (PART OF 1) 2008-2012
013 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (SECD AIR INJN PUMP WRG HARN RLY BRKT) 2008-2012 01
014 RETAINER, ENG WRG HARN RLY (PART OF 1) 2008-2012
015 RELAY, SECD AIR INJN PUMP (PART OF 1) 2009-2012
015 RELAY, AUTO LVL CONT (PART OF 1) 2009-2012
016 88909771 FUSE, MAXI 30 A (LT GREEN) (PART OF 1) (ACDelco #MAX30-5) 2008-2012 01
016 88861355 FUSE, MAXI, 50 AMP, RED (PART OF 1) (ACDelco #MAX50) 2008-2012 01
