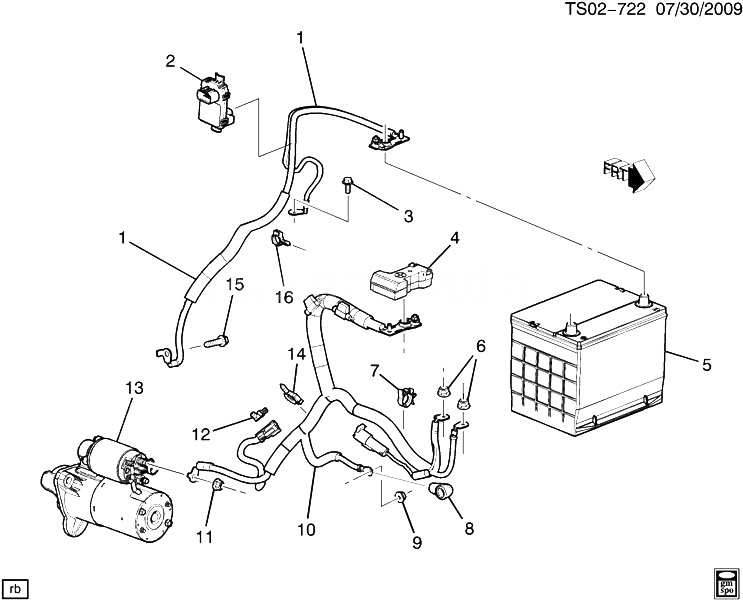

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19116221 |
CABLE, BAT NEG (INCLS 2, 3) (41LONG) (W/RVC SENSOR) (*KIT1) (ACDelco #19116221) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
| 002 |
25826405 |
MODULE, GEN BAT CONT (PART OF 1) (*KIT1) |
ST1 |
2009-2012 |
01 |
| 003 |
|
BOLT, BAT CBL TERM (PART OF 1) (*KIT1) |
|
2009-2012 |
|
| 004 |
19116717 |
COVER, BAT POS CBL TERM (PART OF 10) (*KIT1) |
ST1 |
2009-2012 |
01 |
| 005 |
|
BATTERY, (SEE GROUP 02.000 BATTERY MOUNTING FOR DETAILED ILLUSTRATED VIEW) (CCA 590) (TOP POST) (232X174X198) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) |
|
2009-2012 |
|
| 006 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS FUSE BLK CBL) |
|
2009-2012 |
02 |
| 007 |
12176839 |
CLIP, BAT CBL (TREE RETAINER FOR 16MM DIA CONDUIT) (*KIT1) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
| 008 |
12146809 |
COVER, GEN WIRE TERM (PART OF 10) (BLACK) (TERMINAL BOOT COVER) (*KIT1) (2.343) |
ST1 |
2009-2012 |
01 |
| 009 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (BAT POS CBL) (8.915) (ACDelco #11514596) |
|
2009-2012 |
01 |
| 011 |
11514597 |
NUT, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (STRTR) (2.383) |
|
2009-2012 |
01 |
| 012 |
88957197 |
LOCK, TERM-WRG SECD (SNAP ON) (PART OF 10) (*KIT1) |
ST1 |
2009-2012 |
01 |
| 013 |
|
STARTER, (SEE GROUP 02.000 STARTER MOTOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2012 |
|
| 014 |
12176839 |
CLIP, BAT CBL (TREE RETAINER FOR 16MM DIA CONDUIT) (*KIT1) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
| 015 |
11562004 |
BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT NEG CBL) |
|
2009-2012 |
01 |
| 016 |
|
CLIP, BAT POS CBL (*KIT1) |
|
2009-2012 |
|
| K01 |
20938077 |
CABLE, BAT POS NEG (INCLS 1-4, 7, 8, 10, 12, 14, 16) (2.342) (ACDelco #20938077) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
| K01 |
20938077 |
CABLE, BAT POS NEG (INCLS 1-4, 7, 8, 10, 12, 14, 16) (ACDelco #20938077) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
