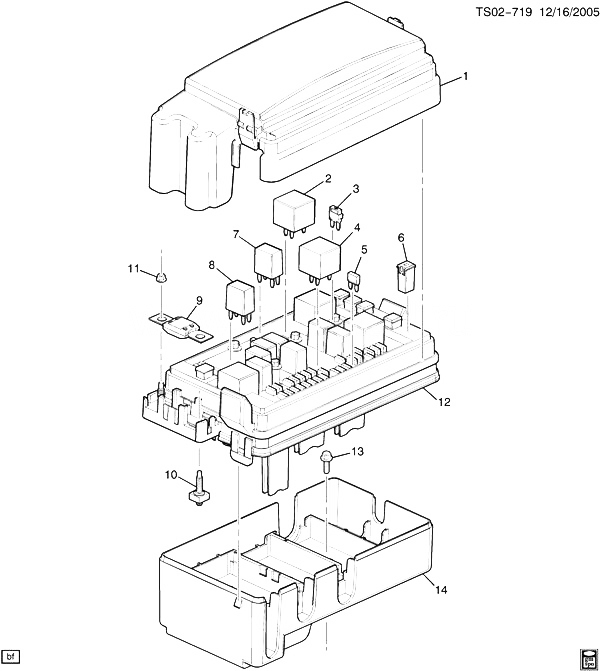

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 005 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 12) (ACDelco #ATM15-25) |
|
2005-2012 |
12 |
| 005 |
88909756 |
FUSE, MINI (25 AMP) (CLEAR) (QTY 25 (PART OF 12) (ACDelco #ATM25-25) |
|
2005-2012 |
01 |
| 005 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 12) |
|
2005-2012 |
21 |
| 005 |
88861352 |
FUSE, 20A, MINI, YELLOW (PART OF 12) (ACDelco #ATM20) |
|
2005-2012 |
05 |
| 006 |
15319477 |
FUSE, 30AMP, PINK, J-CASE, FEMALE, REGULAR (PART OF 12) |
|
2005-2012 |
04 |
| 006 |
15319478 |
FUSE, 40AMP, GREEN, J-CASE, FEMALE (PART OF 12) (ACDelco #15319478) |
|
2005-2012 |
02 |
| 007 |
19116057 |
RELAY, HDLP (PART OF 12) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
ST1 |
2005-2012 |
01 |
| 008 |
19116058 |
RELAY, A/C CMPR (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, MICRO, CODE 7866) (PART OF 12) (BLACK) (35AMP) (5 TERMINAL) (HIGH CURRENT MICRO 280) (2.483) (ACDelco #D1780C) |
ST1 |
2009-2012 |
01 |
| 008 |
19116057 |
RELAY, HDLP (PART OF 12) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
ST1 |
2005-2012 |
01 |
| 008 |
19116057 |
RELAY, FOG LP (PART OF 12) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
ST1 |
2005-2012 |
01 |
| 008 |
19116057 |
RELAY, HORN (PART OF 12) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
ST1 |
2005-2012 |
01 |
| 008 |
19116057 |
RELAY, PARK LP (PART OF 12) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
ST1 |
2005-2012 |
01 |
| 008 |
12193601 |
RELAY, A/C CMPR (CODE 3601, 7233 5-TERMINAL, SPDT 280 MINI) (PART OF 12) (BLACK) (USED W/CONNECTOR 15306045 W/O BRKTS 5-WAY MALE) |
ST1 |
2010-2012 |
01 |
| 008 |
19116057 |
RELAY, PCM (PART OF 12) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
ST1 |
2011-2012 |
01 |
| 009 |
15324251 |
FUSE, 100 AMP MEGA (PART OF 12) (FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) |
|
2005-2012 |
01 |
| 010 |
|
STUD, ENG WRG HARN J/BLK (PART OF 12) |
|
2005-2012 |
|
| 011 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (FUSE BLK) |
|
2005-2012 |
02 |
| 012 |
20885193 |
BLOCK, FUSE (INCLS 2-10) |
ST1 |
2009-2012 |
01 |
| 013 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FUSE BLK) |
|
2005-2012 |
03 |
| 014 |
20885194 |
COVER, MULTIUSE RLY |
ST1 |
2010-2012 |
01 |
| 014 |
21994524 |
COVER, ACSRY WRG J/BLK (USED UNDER BUSSED ELECTRICAL CENTER) (BOTTOM) |
ST1 |
2006-2012 |
01 |
| 001 |
20885194 |
COVER, MULTIUSE RLY |
ST1 |
2010-2012 |
01 |
| 002 |
12193606 |
RELAY, STRTR (PART OF 12) (BLUE) (4-TERMINAL) (SPST 280 MINI) (4.720) |
ST1 |
2009-2012 |
01 |
| 002 |
19116057 |
RELAY, STRTR (PART OF 12) (GRAY) (35AMP) (4-TERMINAL) (HIGH CURRENT MICRO RELAY) (2.483) (ACDelco #D1786C) |
ST1 |
2009-2012 |
01 |
| 003 |
12135037 |
DIODE, M/FUNC (PART OF 12) (1 AMP) |
ST1 |
2005-2012 |
02 |
| 004 |
19116058 |
RELAY, WSW MOT (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, MICRO, CODE 7866) (PART OF 12) (BLACK) (35AMP) (5 TERMINAL) (HIGH CURRENT MICRO 280) (2.483) (ACDelco #D1780C) |
ST1 |
2010-2012 |
01 |
