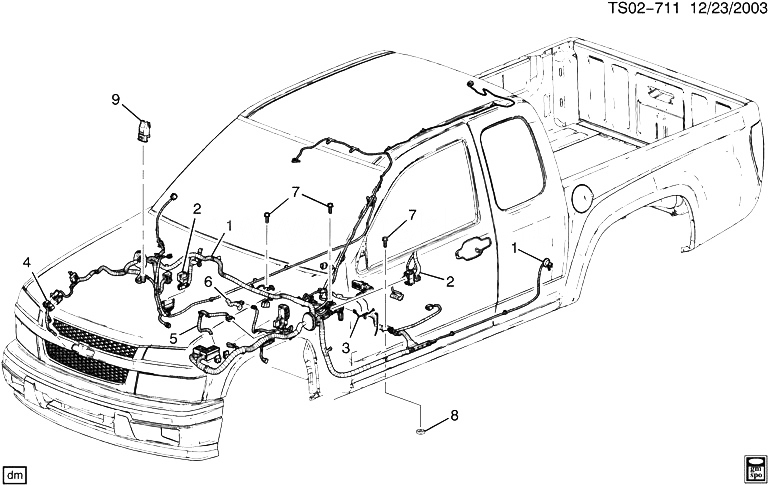

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20870962 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (AG1, ASF, A31, UY7) |
2010-2012 |
01 |
| 001 |
20870962 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (AG1, A31, UY7) (EXC ASF) |
2010-2012 |
01 |
| 001 |
20870962 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (AG1, ASF, A31) (EXC UY7) |
2010-2012 |
01 |
| 001 |
20870962 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (AG1, A31) (EXC ASF, UY7) |
2010-2012 |
01 |
| 001 |
20870964 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (ASF, UY7) (EXC AG1, A31) |
2010-2012 |
01 |
| 001 |
20870964 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (MA5, M30, ASF, UY7) (EXC AG1, AG2, A31) |
2010-2012 |
01 |
| 001 |
20870964 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (UY7) (EXC AG1, ASF, A31) |
2010-2012 |
01 |
| 001 |
20870964 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (ASF) (EXC AG1, A31, UY7) |
2010-2012 |
01 |
| 001 |
20870964 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (EXC AG1, ASF, A31, UY7) |
2010-2012 |
01 |
| 001 |
20925413 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (ASF, A31, UY7) (EXC AG1) |
2010-2012 |
01 |
| 001 |
20925413 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (A31, UY7) (EXC AG1, ASF) |
2010-2012 |
01 |
| 001 |
20925413 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (ASF, A31) (EXC AG1, UY7) |
2010-2012 |
01 |
| 001 |
20925413 |
HARNESS, BODY WRG (INCLS 9) |
T1 (53) (A31) (EXC AG1, ASF, UY7) |
2010-2012 |
01 |
| 001 |
25846567 |
HARNESS, BODY WRG (INCLS 9) |
T1 (MA5, BAE) |
2008-2012 |
01 |
| 002 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 003 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/SIDE FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 004 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 005 |
|
HARNESS, CHAS WRG (SEE GROUP 02.000 WIRING HARNESS/CHASSIS FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 006 |
|
HARNESS, ENG WRG (SEE GROUP 02.000 WIRING HARNESS/ENGINE FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 007 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BODY WRG HARN GND) |
|
2004-2012 |
03 |
| 008 |
10268593 |
NUT, RIVNUT, M6X1.0, FITS .375 - .413 HOLE, STL, ZN (BODY WRG HARN GND) |
|
2004-2012 |
02 |
| 009 |
|
COVER, BODY WRG HARN (PART OF 1) |
|
2004-2012 |
|
