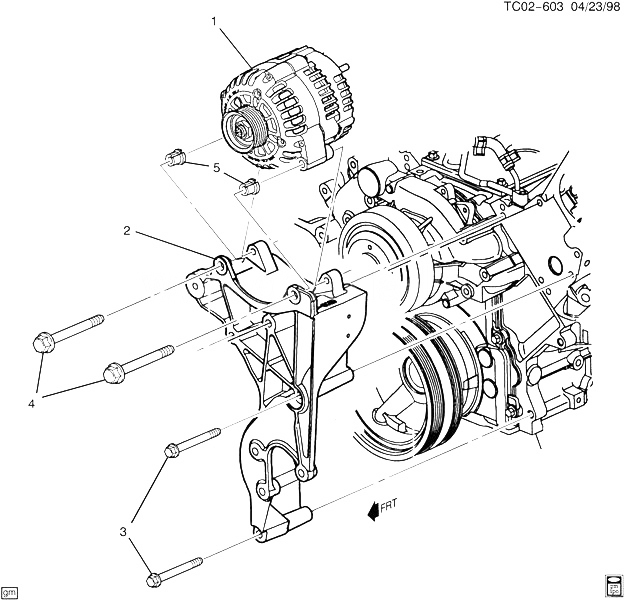

(TC02-603) 2010-2012 ST1 КРЕПЛЕНИЕ ГЕНЕРАТОРА (LH9/5.3P) CHEVROLET COLORADO EXT CAB (4WD) 2012
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 20881337 | GENERATOR, (2 WIRE GENERATOR) (ACDelco #20881337) | ST1 (LH9, KG3) | 2011-2012 | 01 |
| 002 | 12567922 | BRACKET, GEN P/S PUMP (INCLS 5) (INCLS SPACER) | ST1 (LH9) | 2010-2012 | 01 |
| 003 | 11519214 | BOLT, HFH M10X1.5X115, 30 MM THD, 22.3 OD, 9.8, 7114M, MAT POINT (GEN P/S PUMP BRKT) | 2009-2012 | 04 | |
| 004 | 11516360 | BOLT, HFH M10X1.2X90, 9.8, 7114M, 22.3 OD HDR PT (GEN) | 2009-2012 | 02 | |
| 005 | 12550090 | SPACER, GEN P/S PUMP BRKT (PART OF 2) | ST1 (LH9) | 2010-2012 | 02 |
