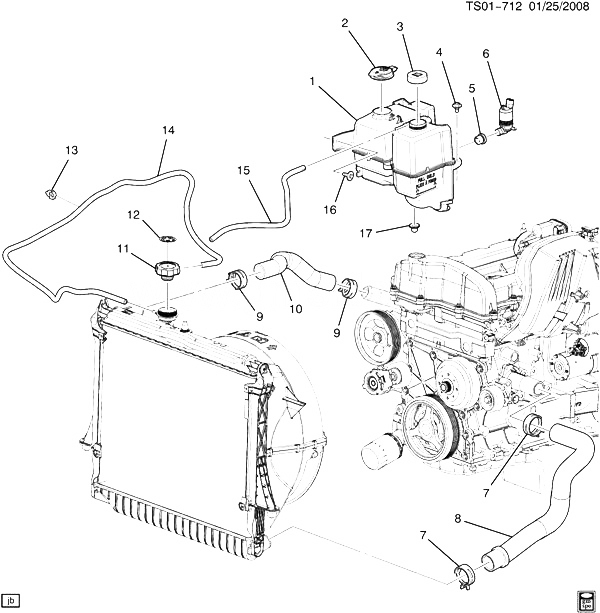

(TS01-712) 2009-2012 ST ШЛАНГИ РАДИАТОРА (LLV/2.9-9,LLR/3.7E) CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25792616 CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) (INCLS 17) (INTEGRATED COOLANT/WASHER CONTAINER) ST1 2007-2012 01
001 25792616 CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) (INCLS 17) (INTEGRATED COOLANT/WASHER CONTAINER) (16.065) ST1 2007-2012 01
002 25731418 CAP, WSWA SOLV CNTNR (10.154) ST1 2007-2012 01
003 15060681 CAP, COOL RCVY RSVR (ASSEMBLY) (DEX-COOL) (SCREW ON CAP) ST1 2007-2012 01
004 11515755 BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (WSWA SOLV CNTNR) (T/W 12345493 REPLCS 25534835) 2007-2012 01
005 12367271 GROMMET, WSWA PUMP (10.154) ST1 2007-2012 01
006 25792626 PUMP KIT, WSWA W/SEAL ST1 2008-2012 01
007 11519578 CLAMP, SPRING BAND 44.5 HOSE OD, 20 WIDTH, 6298M, 6164M (PART OF 8) ST1 (LLR) 2007-2012 02
007 11519578 CLAMP, SPRING BAND 44.5 HOSE OD, 20 WIDTH, 6298M, 6164M (PART OF 8) ST1 (LLV) 2007-2012 02
008 15136872 HOSE, RAD OTLT (INCLS CLAMPS) (INCLS 7) ST1 (LLV, JJA) 2007-2012 01
008 22896362 HOSE, RAD OTLT (INCLS 7) ST1 (LLR, JJA) 2007-2012 01
009 11570618 CLAMP, SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (PART OF 10) 2007-2012 02
010 15263235 HOSE, RAD INL (INCLS 9) ST1 (LLR, JJA) 2007-2012 01
010 15198678 HOSE, RAD INL (INCLS 9) ST1 (LLV, JJA) 2007-2012 01
011 15042975 CAP, RAD FIL (INCLS 12) (ACDelco #RC85) ST1 2007-2012 01
012 15063597 LABEL, RAD FIL CAP CAUTION (PART OF 11) (DOMESTIC) ST1 2007-2012 01
013 15955072 CLIP, COOL RCVY RSVR HOSE (.650MM DIA) (2.343) ST1 2007-2012 03
014 89018409 HOSE, COOL RCVY RSVR INL ST1 2007-2012 01
015 89018410 HOSE, RAD OVFL ST1 2007-2012 01
016 11609989 BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (WSWA SOLV CNTNR) 2007-2012 02
017 GROMMET, WSWA SOLV CNTNR (PART OF 1) 2009-2012
