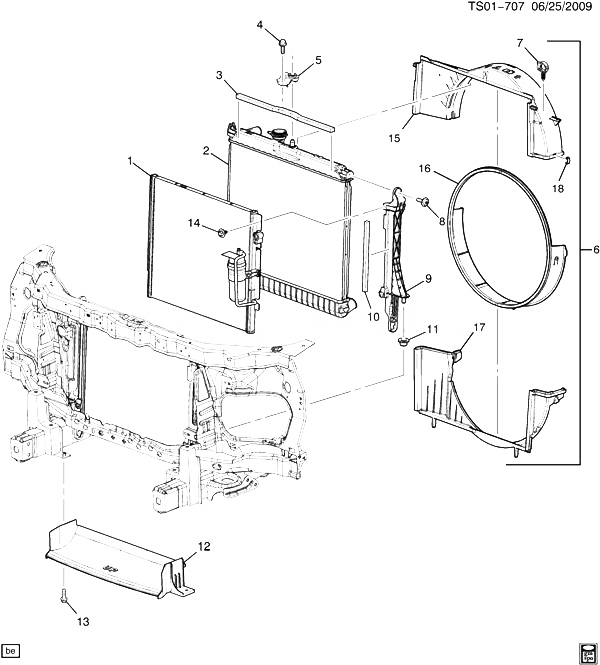

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CONDENSER, A/C (SEE GROUP 09.000 A/C REFRIGERATION SYSTEM FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 002 |
15120862 |
RADIATOR, (CORE SIZE 22 1/2 X 24 X 7/8) (ACDelco #21524) |
ST1 (LLR, LLV, M30, C60) |
2007-2012 |
01 |
| 002 |
15199308 |
RADIATOR, (CORE SIZE 22 1/2 X 24 X 7/8) (ACDelco #21511) |
ST1 (LLV, MA5, C60) |
2007-2012 |
01 |
| 003 |
89018403 |
SEAL, RAD UPR (ACDelco #89018403) |
ST1 (LLV, MA5, C60) |
2007-2012 |
01 |
| 003 |
89018403 |
SEAL, RAD UPR (ACDelco #89018403) |
ST1 (LLR, M30, C60) |
2010-2012 |
01 |
| 004 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (FRT GRL OPG) (T/W 12345493 REPLCS 25534835) |
|
2004-2012 |
01 |
| 005 |
97246409 |
BRACKET, RAD UPR |
ST1 |
2004-2012 |
01 |
| 006 |
15117016 |
SHROUD, ENG COOL FAN (INCLS UPPER LOWER SHROUD) (INCLS 15-18) (1.277) |
ST1 (LLR, M30, C60) |
2008-2012 |
01 |
| 006 |
15132136 |
SHROUD, ENG COOL FAN (INCLS 15-18) (INCLS UPPER AND LOWER SHROUD) (1.277) |
ST1 (LLV) |
2007-2012 |
01 |
| 006 |
15132136 |
SHROUD, ENG COOL FAN (INCLS 15-18) (INCLS UPPER AND LOWER SHROUD) |
ST1 (LLV) |
2007-2012 |
01 |
| 006 |
15117016 |
SHROUD, ENG COOL FAN (INCLS UPPER LOWER SHROUD) (INCLS 15-18) |
ST1 (LLR, M30, C60) |
2008-2012 |
01 |
| 007 |
22593362 |
CLAMP, RAD OTLT HOSE RAD (CLIP, RD WIRE, 37 ID, FITS 6.75 DIA HOLE, NYLON) (2.559) |
ST1 (LLV) |
2007-2012 |
01 |
| 007 |
22593362 |
CLAMP, RAD OTLT HOSE RAD (CLIP, RD WIRE, 37 ID, FITS 6.75 DIA HOLE, NYLON) (2.559) |
ST1 (LLR) |
2007-2012 |
01 |
| 008 |
89018401 |
BOLT, RAD |
ST1 (MA5) |
2008-2012 |
02 |
| 008 |
89018401 |
BOLT, RAD |
ST1 (LLR, M30, C60) |
2010-2012 |
02 |
| 009 |
89018399 |
BRACKET, RAD SI MTG |
ST1 (LLR) |
2007-2012 |
01 |
| 009 |
89018400 |
BRACKET, RAD SI MTG |
ST1 (LLR) |
2007-2012 |
01 |
| 009 |
89018399 |
BRACKET, RAD SI MTG |
ST1 (LLV) |
2007-2012 |
01 |
| 009 |
89018400 |
BRACKET, RAD SI MTG |
ST1 (LLV) |
2007-2012 |
01 |
| 010 |
15132137 |
SEAL, A/C CNDSR (ACDelco #15132137) |
ST1 |
2004-2012 |
02 |
| 010 |
13579649 |
SEAL, A/C CNDSR (AT A/C EVAP TUBE) |
ST1 |
2012-2012 |
01 |
| 011 |
89018402 |
INSULATOR, RAD |
ST1 |
2004-2012 |
02 |
| 012 |
20772039 |
GUIDE, FRT GRL |
ST1 (LLR, LLV) (EXC NZZ) |
2009-2012 |
01 |
| 013 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RAD GRL GDE) (ACDelco #11570082) |
|
2004-2012 |
02 |
| 014 |
11518449 |
BOLT, HFH, W/ADH, M6X1.0X16, 13.5THD, 14.2 O.D., 8.8, GMW3359 (A/C CNDSR) |
|
2004-2012 |
02 |
| 015 |
|
SHROUD, ENG COOL FAN UPR (PART OF 6) |
|
2009-2012 |
|
| 016 |
|
EXTENSION, ENG COOL FAN SHRD LWR (PART OF 6) |
|
2009-2012 |
|
| 017 |
|
SHROUD, ENG COOL FAN LWR (PART OF 6) |
|
2009-2012 |
|
| 018 |
89018398 |
CLIP, ENG COOL FAN SHRD (PART OF 6) |
ST1 |
2004-2012 |
06 |
