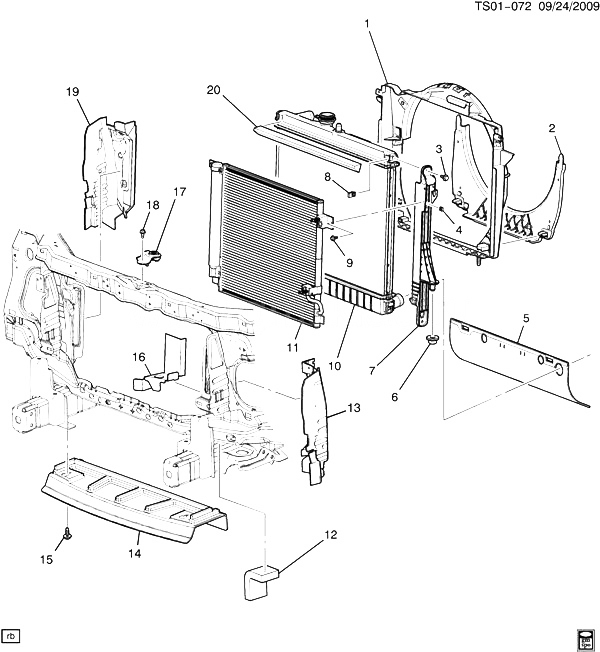

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25862433 |
SHROUD, ENG COOL FAN UPR |
ST1 (LH9, M30) |
2010-2012 |
01 |
| 002 |
25862431 |
SHROUD, ENG COOL FAN LWR |
ST1 (LH9, M30) |
2010-2012 |
01 |
| 003 |
11561360 |
BOLT, A/C RCVR DEHYDR BRKT |
ST1 (LH9, M30) |
2010-2012 |
01 |
| 004 |
11561363 |
NUT, RAD |
ST1 |
2009-2012 |
02 |
| 005 |
15948095 |
SEAL, RAD LWR (ACDelco #15948095) |
ST1 (M30) |
2009-2012 |
01 |
| 006 |
10399672 |
MOUNT, RAD LWR |
ST1 (M30) |
2009-2012 |
02 |
| 007 |
25964055 |
BRACKET, RAD SI MTG |
ST1 (LH9, M30) |
2010-2012 |
01 |
| 007 |
25964056 |
BRACKET, RAD SI MTG |
ST1 (LH9, M30) |
2010-2012 |
01 |
| 008 |
11561362 |
NUT, RAD LIFT BRKT |
ST1 (M30) |
2009-2012 |
02 |
| 009 |
11569695 |
BOLT, HEX W/FL WA, M6X1X20, 11 THD, 17 OD, 9.8, GMW3359-BLACK W/ADH 6175M (RAD SI MT BRKT) |
|
2009-2012 |
02 |
| 010 |
25964054 |
RADIATOR, (ACDelco #22000) |
ST1 (LH9, M30) |
2010-2012 |
01 |
| 011 |
25964057 |
CONDENSER, A/C (SEE GROUP 09.000 RADIATOR MOUNTING RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-63555) |
ST1 (LH9, M30) |
2010-2012 |
01 |
| 012 |
25852294 |
SEAL, RAD AIR SI LWR |
ST1 |
2009-2012 |
02 |
| 013 |
25917771 |
SEAL, RAD AIR SI |
ST1 |
2009-2012 |
01 |
| 014 |
25991692 |
DEFLECTOR, FRT AIR |
ST1 |
2009-2012 |
01 |
| 015 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RAD GRL GDE) (ACDelco #11570082) |
|
2009-2012 |
02 |
| 016 |
97247212 |
BRACKET, RAD LWR MTG PNL |
ST1 |
2009-2012 |
01 |
| 016 |
97247213 |
BRACKET, RAD LWR MTG PNL |
ST1 |
2009-2012 |
01 |
| 017 |
97246409 |
BRACKET, RAD UPR |
ST1 |
2009-2012 |
01 |
| 018 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (RAD UPR MT BRKT) (T/W 12345493 REPLCS 25534835) |
|
2009-2012 |
01 |
| 019 |
25917772 |
SEAL, RAD AIR SI |
ST1 |
2009-2012 |
01 |
| 020 |
15806298 |
SEAL, RAD UPR (ACDelco #15806298) |
ST1 (LH9, M30) |
2010-2012 |
01 |
