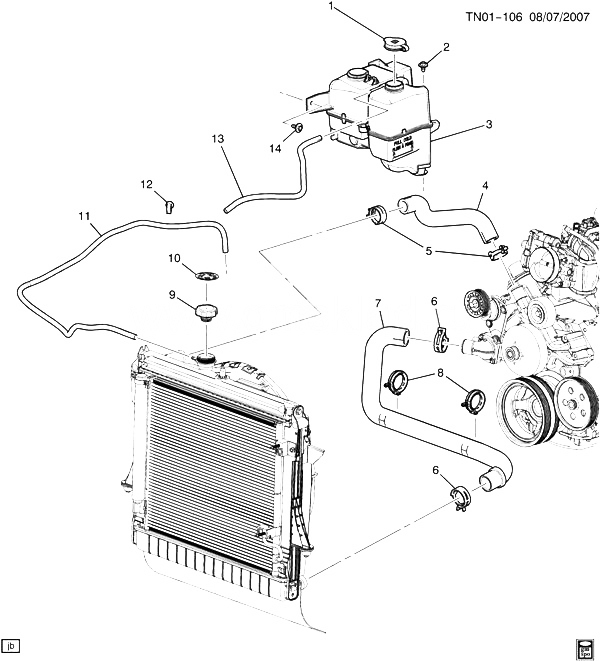

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15060681 |
CAP, COOL RCVY RSVR (ASSEMBLY) (DEX-COOL) (SCREW ON CAP) |
ST1 |
2009-2012 |
01 |
| 002 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (WSWA SOLV CNTNR) (T/W 12345493 REPLCS 25534835) |
|
2009-2012 |
01 |
| 003 |
25792616 |
CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) (SEE GROUP 16.000 WIPER SYSTEM FOR DETAILED ILLUSTRATED VIEW) (INTEGRATED COOLANT/WASHER CONTAINER) |
ST1 |
2009-2012 |
01 |
| 003 |
25792616 |
CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) (SEE GROUP 16.000 WIPER SYSTEM FOR DETAILED ILLUSTRATED VIEW) (INTEGRATED COOLANT/WASHER CONTAINER) (16.065) |
ST1 |
2009-2012 |
01 |
| 004 |
25802006 |
HOSE, RAD INL |
ST1 (LH9, JJA) |
2010-2012 |
01 |
| 005 |
11570618 |
CLAMP, SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (RAD INL HOSE) |
|
2009-2012 |
02 |
| 006 |
11519578 |
CLAMP, SPRING BAND 44.5 HOSE OD, 20 WIDTH, 6298M, 6164M (RAD OTLT HOSE) |
|
2009-2012 |
02 |
| 007 |
25802007 |
HOSE, RAD OTLT |
ST1 (LH9, JJA) |
2010-2012 |
01 |
| 008 |
15035355 |
CLIP, RAD OTLT HOSE (55MM DIA) |
ST1 (LH9) |
2010-2012 |
02 |
| 009 |
15042975 |
CAP, RAD FIL (INCLS 10) (ACDelco #RC85) |
ST1 |
2009-2012 |
01 |
| 010 |
15063597 |
LABEL, RAD FIL CAP CAUTION (PART OF 9) (DOMESTIC) |
ST1 |
2009-2012 |
01 |
| 011 |
89018409 |
HOSE, COOL RCVY RSVR INL |
ST1 |
2009-2012 |
01 |
| 012 |
15955072 |
CLIP, COOL RCVY RSVR HOSE (.650MM DIA) (2.343) |
ST1 |
2009-2012 |
03 |
| 013 |
89018410 |
HOSE, RAD OVFL |
ST1 |
2009-2012 |
01 |
| 014 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (WSWA SOLV CNTNR) |
|
2009-2012 |
02 |
