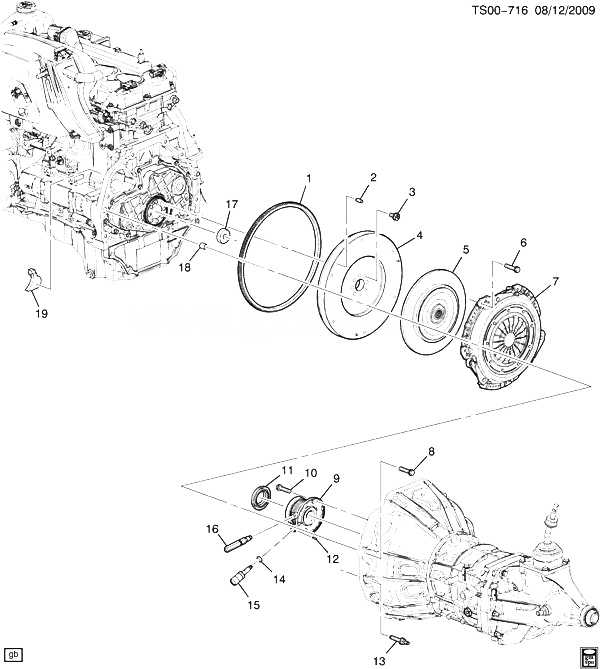

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
GEAR, STRTR DRVN RING (PART OF 4) |
|
2007-2012 |
|
| 002 |
11503504 |
PIN, M6X16, STL, PLAIN (PART OF 4) |
|
2004-2012 |
03 |
| 003 |
12568932 |
BOLT, FLYWHL (PART OF 4) (M10X1.0X23.7 MATLSTEEL (SAE 4037)) |
ST1 (LLV) |
2007-2012 |
08 |
| 004 |
89060406 |
FLYWHEEL, ENG (INCLS 1-3) (BOLTS NOT INCLUDED) |
ST1 (LLV) |
2007-2012 |
01 |
| 005 |
24230638 |
PLATE, CLU DRVN (PART OF 7) |
ST1 (MA5) |
2004-2012 |
01 |
| 006 |
11518102 |
BOLT, HEX W/SLOTTED HD, M8X1.25X15.15, 10.15 THD, 10.9, 4435M, MACH, HDR-PT (CLU PRESS PLT) (0.862) |
|
2004-2012 |
06 |
| 007 |
24259733 |
PLATE, CLU PRESS DRVN (W/CVR) (INCLS 5) |
ST1 (LLV, MA5) |
2007-2012 |
01 |
| 008 |
11519894 |
BOLT, HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (TRANS) |
|
2004-2012 |
09 |
| 009 |
24263807 |
CYLINDER, CLU ACTR (INCLS 11, 12, 14-16) |
ST1 (MA5) |
2007-2012 |
01 |
| 010 |
11561025 |
BOLT, HFH, M6X1X16, 13.5 THD, 14.2 OD, GMW25 STL, GMW3200, MACH, HDR-PT (CLU ACTR CYL) |
|
2004-2012 |
02 |
| 011 |
89060001 |
BEARING KIT, CLU REL (PART OF 9) (W/CARR) (ACDelco #CT1101) |
ST1 (MA5) |
2004-2012 |
01 |
| 012 |
12386924 |
PIN, CLU ACTR CYL (PART OF 9) |
ST1 (MA5) |
2004-2012 |
01 |
| 013 |
24221931 |
STUD, TRANS (M10X1.5X50, M8X1.25X20, 20 OD) |
ST1 |
2010-2012 |
01 |
| 014 |
12549117 |
SEAL, CLU ACTR CYL (O RING) (PART OF 9) |
ST1 (MA5) |
2004-2012 |
01 |
| 015 |
|
COUPLING, CLU REL BRG LUB HOSE LUB FTG (PART OF 9) |
|
2007-2012 |
|
| 016 |
|
VALVE, CLU ACTR CYL BL (PART OF 9) |
|
2007-2012 |
|
| 017 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (ACDelco #CT1082) |
ST1 (LLV) |
2007-2012 |
01 |
| 018 |
12569598 |
PIN, TRANS LOC |
ST1 (LLV) |
2007-2012 |
02 |
| 019 |
12571613 |
PLUG, FLYWHL HSG |
ST1 (LLR, LLV, JJA) |
2010-2012 |
01 |
