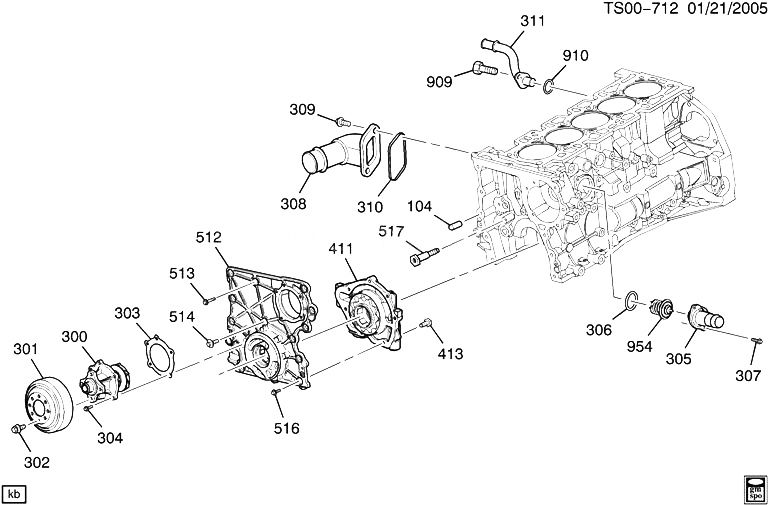

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 104 |
03525915 |
PIN, ENG FRT CVR LOC (DOWEL, 5.99X17.25, CHAM BOTH ENDS, 10.9) |
ST1 (LLR) |
2007-2012 |
02 |
| 300 |
12620226 |
PUMP, WAT (W/GSKT) (INCLS 303) (ACDelco #251-731) |
ST1 (LLR) |
2009-2012 |
01 |
| 301 |
24576970 |
PULLEY, W/PMP (ACDelco #24576970) |
ST1 (LLR) |
2007-2012 |
01 |
| 302 |
24576757 |
BOLT, W/PMP PUL (M8X1.25X19, 10.9) |
ST1 (LLR) |
2007-2012 |
04 |
| 303 |
24576956 |
GASKET, W/PMP (PART OF 300) (*KIT1) (ACDelco #251-2029) |
ST1 (LLR) |
2007-2012 |
01 |
| 304 |
11517521 |
BOLT, HFH, M6X1X35, 17 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (W/PMP) |
|
2007-2012 |
05 |
| 305 |
12622316 |
HOUSING, ENG COOL THERM (INCLS THERMOSTAT) (INCLS 306, 954) (ACDelco #15-11073) |
ST1 (LLR) |
2007-2012 |
01 |
| 306 |
12561155 |
SEAL, ENG COOL THERM HSG (O RING) (PART OF 305) (1.123) |
ST1 (LLR) |
2007-2012 |
01 |
| 307 |
11561026 |
BOLT, HFH, M6X1X25, 22 THD, 14.2 OD, 9.8, GMW3200, MACH, HDR-PT (ENG COOL THERM HSG) |
|
2007-2012 |
02 |
| 308 |
12605785 |
OUTLET, WAT (INCLS OUTLET, CONNECTOR, SEAL) (INCLS 310) (ACDelco #15-10715) |
ST1 (LLR) |
2007-2012 |
01 |
| 309 |
11588714 |
BOLT, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (WAT OTLT) |
|
2007-2012 |
02 |
| 310 |
12579977 |
SEAL, CLNT OTLT (O RING) (PART OF 308) (*KIT1) (ACDelco #15-33215) |
ST1 (LLR) |
2007-2012 |
01 |
| 311 |
12619219 |
PIPE, HTR INL (INCLS 910) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
| 411 |
|
COVER, O/PMP (SEE GROUP 00.000 OIL PUMP, PAN RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (PART OF 512) |
|
2007-2012 |
|
| 413 |
24577281 |
BOLT, O/PMP (M6X1.0X23 THD..MATLGM500M (9.8)STEEL..FINISHPER GM4435M, CODE G.) (PART OF 512) (M6X1.0X22) |
ST1 (LLR) |
2007-2012 |
07 |
| 512 |
12628565 |
COVER, ENG FRT (W/OIL PMP) (INCLS SEAL (FRT CVR), GEARS, PLUG AND RELIEF VALVE) (INCLS 411, 413, 513, 514, 516) |
ST1 (LLR) |
2007-2012 |
01 |
| 513 |
11588718 |
BOLT, ENG FRT CVR (-HFH, M6X1X50, 22.7 THD, 14.2 OD, 8.8, GMW3359, MAT PT) (PART OF 512) (M6X1X50) |
ST1 (LLR) |
2007-2012 |
02 |
| 514 |
11570143 |
BOLT, ENG FRT CVR (PART OF 512) |
ST1 (LLR) |
2007-2012 |
01 |
| 516 |
11519038 |
BOLT, HFH, M6X1X30, 24 THD, 13.2 OD, 10.9, GMW3359, W/ADHESIVE ON THREADS (PART OF 512) |
|
2007-2012 |
11 |
| 517 |
12567157 |
SPACER, ENG FRT CVR BOLT |
ST1 (LLR) |
2007-2012 |
01 |
| 909 |
11517518 |
BOLT, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (HTR INL PIPE) (ACDelco #11517518) |
|
2007-2012 |
01 |
| 909 |
12345382 |
COMPOUND, ADHESIVE/SEALANT, THREAD, MED STRENGTH, (6ML) (HTR INL PIPE) (ACDelco #10-1009) |
|
2007-2012 |
AR |
| 910 |
12575032 |
SEAL, HTR INL PIPE (O RING) (PART OF 311) (ACDelco #12575032) |
ST1 |
2007-2012 |
01 |
| 954 |
|
THERMOSTAT, ENG COOL (PART OF 305) |
|
2007-2012 |
|
| K01 |
89060396 |
GASKET KIT, CYL HD (INCLS GASKETS, SEALS) (INCLS 303, 310) |
ST1 (LLR) |
2007-2012 |
01 |
