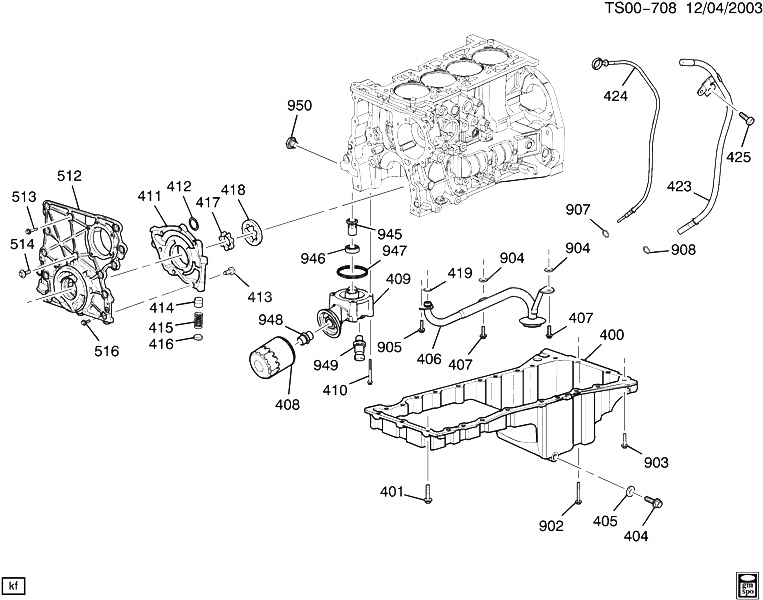

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 400 |
12600499 |
PAN, OIL (INCLSPAN, PLUG, BOLTS, RETAINERS) (INCLS 401, 404, 405, 902, 903) |
ST1 (LLV) |
2007-2012 |
01 |
| 401 |
11519886 |
BOLT, HFH, M6X1X28, 24.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PTPT (PART OF 400) |
|
2007-2012 |
03 |
| 404 |
11562588 |
PLUG, OIL PAN DRN (PART OF 400) (INCLS 405) (M12X1.75X25) (W/SEAL) (EXC MAGNET) |
ST1 (LLV) |
2007-2012 |
01 |
| 405 |
12616850 |
SEAL, OIL PAN DRN PLUG (O RING) (PART OF 400, 404) |
ST1 (LLV) |
2007-2012 |
01 |
| 406 |
12589064 |
SCREEN, O/PMP (W/SUC PIPE) (INCLS 407, 419, 904, 905) |
ST1 (LLV) |
2007-2012 |
01 |
| 407 |
11517692 |
BOLT-HFH, M6X1X25, 21.5 THD, 14.2 OD, 9.8, 6280M, MACH, 6124M, HDR-PT (PART OF 406) |
|
2007-2012 |
02 |
| 408 |
19210283 |
FILTER, OIL (ACDelco #PF46E) (DURAGUARD) |
ST1 (LLV) |
2007-2012 |
01 |
| 409 |
12580302 |
ADAPTER, OIL FLTR |
ST1 (LLV) |
2007-2012 |
01 |
| 410 |
11519974 |
BOLT, HFH, RDUCD BDY, M6X1X70, 18 THD, 14.2 O.D., 8.8, GMW3359 (OIL FLTR ADAP) |
|
2007-2012 |
04 |
| 411 |
|
COVER, O/PMP (PART OF 512) |
|
2007-2012 |
|
| 412 |
24576940 |
SEAL, ENG FRT CVR (PART OF 512) |
ST1 (LLV) |
2007-2012 |
01 |
| 413 |
24577281 |
BOLT, O/PMP (M6X1.0X23 THD..MATLGM500M (9.8)STEEL..FINISHPER GM4435M, CODE G.) (PART OF 512) (M6X1.0X22) |
ST1 (LLV) |
2007-2012 |
07 |
| 414 |
|
VALVE, OIL PRESS RLF (PART OF 512) |
|
2007-2012 |
|
| 415 |
24100119 |
SPRING, OIL PRESS RLF VLV (PART OF 512) |
ST1 (LLV) |
2007-2012 |
01 |
| 416 |
|
PLUG, OIL PRESS RLF VLV BORE (PART OF 512) |
|
2007-2012 |
|
| 417 |
|
GEAR, O/PMP DRVN (PART OF 512) |
|
2007-2012 |
|
| 418 |
|
GEAR, O/PMP DRV (PART OF 512) |
|
2007-2012 |
|
| 419 |
12575550 |
SEAL, O/PMP SUC PIPE (PART OF 406) |
ST1 (LLV) |
2007-2012 |
01 |
| 423 |
12590590 |
TUBE, OIL LVL IND (INCLSEAL) (INCLS 908) |
ST1 (LLV) |
2007-2012 |
01 |
| 424 |
12580811 |
INDICATOR, OIL LVL (INCLS 907) |
ST1 (LLV) |
2007-2012 |
04 |
| 425 |
11517516 |
BOLT, HFH, M6X1X13, 9.5 THD, 14.2 OD, 9.8, 6280M, MACH, HDR-PT (OIL LVL IND TUBE) |
|
2007-2012 |
01 |
| 512 |
12628565 |
COVER, ENG FRT (W/OIL PMP) (INCLS SEAL (FRT CVR), GEARS, PLUG AND RELIEF VALVE) (INCLS 411-418, 513, 516) |
ST1 (LLV) |
2007-2012 |
01 |
| 513 |
11588718 |
BOLT, ENG FRT CVR (-HFH, M6X1X50, 22.7 THD, 14.2 OD, 8.8, GMW3359, MAT PT) (PART OF 512) (M6X1X50) |
ST1 (LLV) |
2007-2012 |
02 |
| 514 |
11570143 |
BOLT, ENG FRT CVR |
ST1 (LLV) |
2007-2012 |
01 |
| 516 |
11588714 |
BOLT, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (PART OF 512) |
|
2007-2012 |
11 |
| 902 |
11588719 |
BOLT, HFH, M6X1X60, 18MM THD, 14.2 O.D., 8.8, 3359GMW (PART OF 400) |
|
2007-2012 |
02 |
| 903 |
11588364 |
BOLT, HFH, M8X1.25X34, 25 THD, 18 O.D., 9.8, GMW3359 (PART OF 400) |
|
2007-2012 |
15 |
| 904 |
11609738 |
NUT, PUSH ON, M6X1, 12.7 OD, 2.18 THK, SAE 1050 STL, GMW3200. (PART OF 406) (8.921) |
|
2007-2012 |
02 |
| 905 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PART OF 406) |
|
2007-2012 |
01 |
| 907 |
24504031 |
SEAL, OIL LVL IND (O RING) (PART OF 424) (RED) |
ST1 (LLV) |
2007-2012 |
01 |
| 908 |
24504031 |
SEAL, OIL LVL IND TUBE (O RING) (PART OF 423) (RED) |
ST1 (LLV) |
2007-2012 |
04 |
| 945 |
25014612 |
VALVE, OIL FLTR BYPASS (W/O VAPOR SEPARATOR) (OPENING PRESSURE 21 PSI NOMINAL) (ACDelco #25014612) (PART HAS A 16.10MM MAX OD FITS A 15.84 HOLE IN BLOCK) |
ST1 (LLV) |
2007-2012 |
01 |
| 946 |
12569369 |
SEAL, OIL FLTR ADAP |
ST1 (LLV) |
2007-2012 |
01 |
| 947 |
12579720 |
GASKET, OIL FLTR ADAP (1.550) |
ST1 (LLV) |
2007-2012 |
01 |
| 948 |
24575062 |
FITTING, OIL FLTR |
ST1 (LLV) |
2007-2012 |
01 |
| 949 |
12635957 |
SWITCH, ENG OIL PRESS (ACDelco #D1843A) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
| 950 |
11588559 |
BOLT, HEX, W/SLNT, M16X2X15, 10 THD, 8.8, GMW3044C (ENG BLK OIL GAL) |
|
2007-2012 |
01 |
