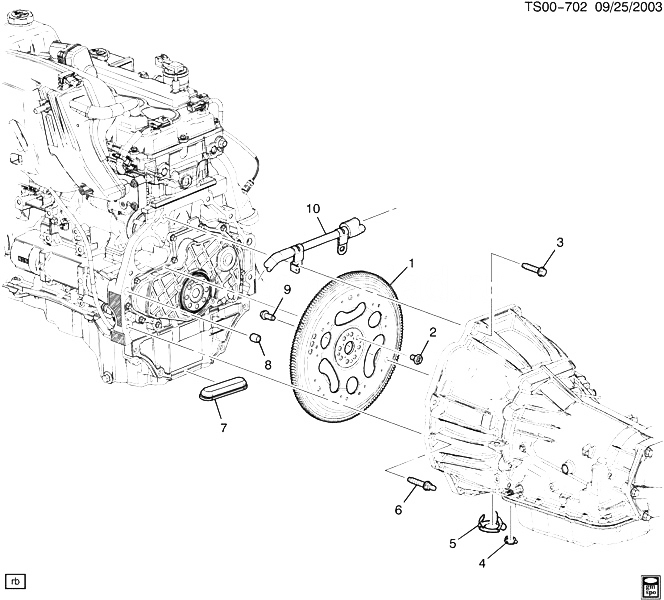

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24100345 |
PLATE, A/TRNS FLEX |
ST1 (LLV, M30) |
2007-2012 |
01 |
| 001 |
24100345 |
PLATE, A/TRNS FLEX |
ST1 (LLR, M30) |
2007-2012 |
01 |
| 002 |
11570716 |
BOLT, A/TRNS FLEX PLT (M10X1X19.1, 15 THD) |
ST1 (LLR, M30) |
2008-2012 |
08 |
| 002 |
11570716 |
BOLT, A/TRNS FLEX PLT (M10X1X19.1, 15 THD) |
ST1 (LLV, M30) |
2008-2012 |
08 |
| 003 |
11519894 |
BOLT, HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (TRANS) |
|
2004-2012 |
09 |
| 004 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
ST1 (M30) |
2004-2012 |
01 |
| 005 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) |
ST1 (M30) |
2004-2012 |
01 |
| 006 |
24221931 |
STUD, TRANS (M10X1.5X50, M8X1.25X20, 20 OD) |
ST1 (LLV, LLR) |
2008-2012 |
01 |
| 007 |
12569419 |
PLUG, OIL PAN HOLE |
ST1 (LLV) |
2008-2012 |
01 |
| 007 |
12569419 |
PLUG, OIL PAN HOLE |
ST1 (LLR) |
2008-2012 |
01 |
| 008 |
12569598 |
PIN, TRANS LOC |
ST1 (LLV) |
2007-2012 |
02 |
| 008 |
12569598 |
PIN, TRANS LOC |
ST1 (LLR) |
2007-2012 |
02 |
| 009 |
11519358 |
BOLT, TRANS T/CV |
ST1 (LLR, LLV, M30) |
2004-2012 |
03 |
| 009 |
11519358 |
BOLT, TRANS T/CV |
ST1 (M30) |
2004-2012 |
03 |
| 010 |
|
HOSE, HTR INL (SEE GROUP 08.000 HOSES PIPES/HEATER FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
