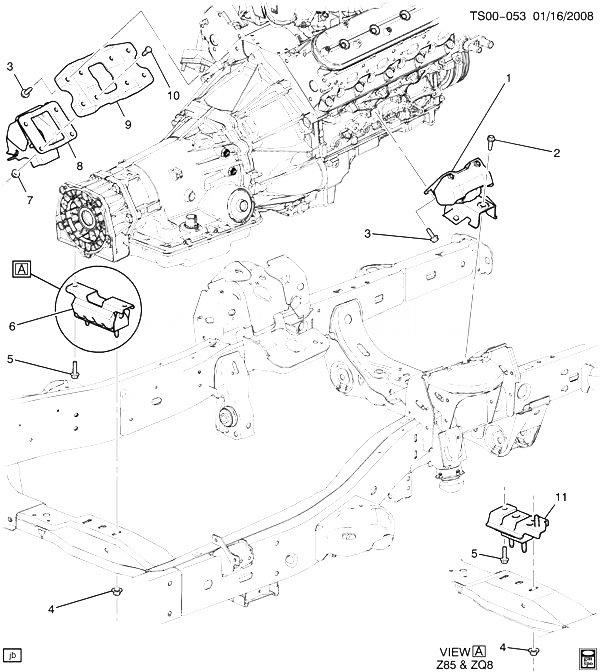

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15931529 |
MOUNT, ENG |
ST1 (LH9, JJA) |
2010-2012 |
01 |
| 001 |
15931530 |
MOUNT, ENG |
ST1 (LH9, JJA) |
2010-2012 |
01 |
| 002 |
11609475 |
BOLT, HFH W/CON SPR WA, M10X1.5X33, 24 THD, 22.3 OD, 10.9, GMW3359 (ENG MT SUPT) |
|
2009-2012 |
06 |
| 003 |
11588738 |
BOLT, HFH, M10X1.5X30.4, 22.5 THD, 22.3 OD, 10.9, GMW3359, M- POINT (ENG FRT MT) |
|
2009-2012 |
08 |
| 004 |
11516754 |
NUT, HEX, W/CON SPR WA, M10X1.5, 10THK, 28 O.D., 10, 7111M (TRANS MT) |
|
2009-2012 |
02 |
| 005 |
11518388 |
BOLT, TRANS MT (M10X1.5X45) |
|
2009-2012 |
|
| 006 |
15931534 |
MOUNT, TRANS |
T1 (LH9, JJA) |
2010-2012 |
01 |
| 007 |
|
NUT, ENG MT (PART OF 8) |
|
2010-2012 |
|
| 008 |
15931529 |
MOUNT, ENG (INCLS 7, 9, 10) |
ST1 (LH9, JJA) |
2010-2012 |
01 |
| 009 |
|
BRACKET, ENG MT (PART OF 8) |
|
2010-2012 |
|
| 010 |
|
STUD, ENG MT (PART OF 8) |
|
2010-2012 |
|
| 011 |
15931534 |
MOUNT, TRANS |
T1 (LH9, JJA) |
2010-2012 |
01 |
