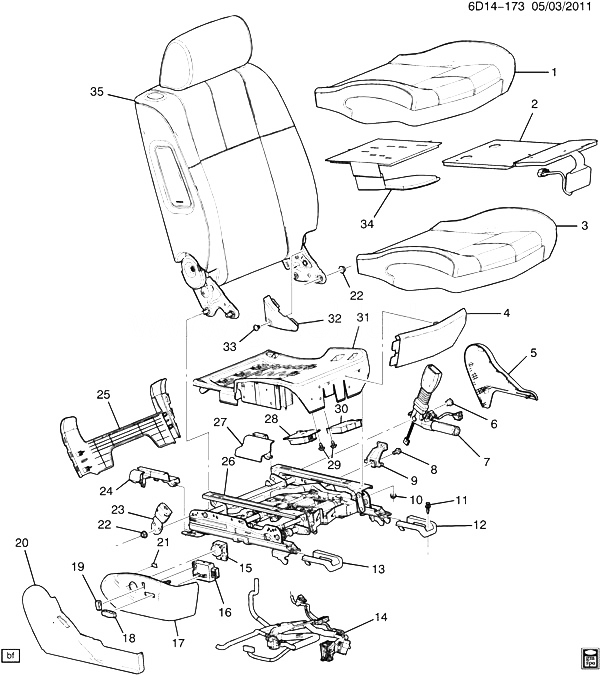

(6D14-173) 2010-2011 DW29 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-ПОДУШКА (POWER LUMBAR AL2, HEATED/COOLED KB6) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19122965 COVER, P/SEAT CUSH (EBONY) DW (AL2, AQ9, EBS, KB6, 01G) (EXC KA1) 2010-2011 01
001 19122967 COVER, P/SEAT CUSH (CASHMERE) DW (AL2, AQ9, EBS, KB6, 01D) (EXC KA1) 2010-2011 01
001 19122969 COVER, P/SEAT CUSH (GRAY) DW (AL2, AQ9, EBS, KB6, 02K) (EXC KA1) 2010-2011 01
001 88995092 COVER, P/SEAT CUSH (CASHMERE) DW (ECR, KB6, 01D) (EXC KA1) 2010-2011 01
001 88995093 COVER, P/SEAT CUSH (EBONY) DW (ECR, KB6, 01G) (EXC KA1) 2010-2011 01
001 88995267 COVER, P/SEAT CUSH (GRAY) (14.924) DW (ECR, KB6, 02K) (EXC KA1) 2010-2011 01
002 SENSOR, AIRBAG FRT PASS PRESENCE (*KIT1) 2010-2011
003 PAD, P/SEAT CUSH (*KIT1) 2010-2011
004 19122908 COVER, P/SEAT CUSH FRT (CASHMERE) DW (01D) 2010-2011 01
004 19122909 COVER, P/SEAT CUSH FRT (EBONY) DW (01G) 2010-2011 01
004 19122910 COVER, P/SEAT CUSH FRT (GRAY) DW (02K) 2010-2011 01
005 88993992 COVER, P/SEAT RECL FIN (GRAY) (INBOARD) DW (02K) 2010-2011 01
005 88993993 COVER, P/SEAT RECL FIN (EBONY) (INBOARD) DW (01G) 2010-2011 01
005 88993994 COVER, P/SEAT RECL FIN (CASHMERE) (INBOARD) DW (01D) 2010-2011 01
006 88995198 NUT, P/SEAT BELT (BKL SI) (M10X1.5) (11.561) D 2010-2011 01
007 10367763 BELT, P/SEAT (BKL SI) (CASHMERE) DW (AX4, 01D) (EXPORT) 2010-2011 01
007 10367764 BELT, P/SEAT (BKL SI) (GRAY) DW (AX4, 02K) (EXPORT) 2010-2011 01
007 10367765 BELT, P/SEAT (BKL SI) (EBONY) DW (AX4, 01G, 02H) (EXPORT) 2010-2011 01
008 11515756 BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (P/SEAT) 2010-2011 01
009 88994342 BRACKET, P/SEAT RECL LWR FIN CVR DW 2010-2011 01
010 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (P/SEAT) 2010-2011 06
011 11589289 RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (P/SEAT ADJR FIN CVR) 2010-2011 02
012 88996371 COVER, P/SEAT INR ADJR FRT FIN (GRAY) (FRT) (I/B) (FLOOR) DW (02K) 2010-2011 01
012 88996372 COVER, P/SEAT INR ADJR FRT FIN (CASHMERE) (FRT) (I/B) (FLOOR) DW (01D) 2010-2011 01
012 88996373 COVER, P/SEAT INR ADJR FRT FIN (EBONY) (FRT) (I/B) (FLOOR) DW (01G) 2010-2011 01
012 88996372 COVER, P/SEAT INR ADJR FRT FIN (CASHMERE) (FRT) (I/B) (FLOOR) DW (01D) 2010-2011 01
012 88996373 COVER, P/SEAT INR ADJR FRT FIN (EBONY) (FRT) (I/B) (FLOOR) DW (01G) 2010-2011 01
013 88994022 COVER, P/SEAT OTR ADJR FRT FIN (GRAY) (FRT) (O/B) (FLOOR) DW (01G) 2010-2011 01
013 88994023 COVER, P/SEAT OTR ADJR FRT FIN (EBONY) (FRT) (O/B) (FLOOR) DW (01D) 2010-2011 01
013 88994024 COVER, P/SEAT OTR ADJR FRT FIN (CASHMERE) (FRT) (O/B) (FLOOR) DW (02K) 2010-2011 01
013 88994022 COVER, P/SEAT OTR ADJR FRT FIN (GRAY) (FRT) (O/B) (FLOOR) DW (01G) 2010-2011 01
013 88994023 COVER, P/SEAT OTR ADJR FRT FIN (EBONY) (FRT) (O/B) (FLOOR) DW (01D) 2010-2011 01
013 88994024 COVER, P/SEAT OTR ADJR FRT FIN (CASHMERE) (FRT) (O/B) (FLOOR) DW (02K) 2010-2011 01
014 88996099 HARNESS, P/SEAT WRG DW29 (AL2, AQ9, IL2, KB6, UY5) (EXC KA1) 2011-2011 01
014 19123419 HARNESS, P/SEAT WRG (LUMBAR/HEAT COOL) DW29 (AL2, AQ9, AX4, EBS, KB6, UX8) (EXC KA1) 2010-2011 01
015 25802502 SWITCH, P/SEAT LUMBAR CONT (EBONY) (16.682) D29 (AL2, 01G) 2010-2011 01
015 25802502 SWITCH, P/SEAT LUMBAR CONT (EBONY) (16.682) D29 (ECH, 01G, 02W) 2010-2011 01
015 25802504 SWITCH, P/SEAT LUMBAR CONT (CASHMERE) (16.682) D29 (01D) 2010-2011 01
015 20844712 SWITCH, P/SEAT LUMBAR CONT (GRAY) DW (02K) 2010-2011 01
016 12451440 SWITCH, P/SEAT ADJR RECL (8-WAY) (W/O KNOBS/BUTTONS) D29 2010-2011 01
017 88993974 BEZEL, P/SEAT ADJR SW (GRAY) DW (AL2, 02K) 2010-2011 01
017 88993975 BEZEL, P/SEAT ADJR SW (EBONY) DW (AL2, 01G) 2010-2011 01
017 88993976 BEZEL, P/SEAT ADJR SW (CASHMERE) DW (AL2, 01D) 2010-2011 01
018 25752512 KNOB, P/SEAT ADJR SW (GRAY) DW (02K) 2010-2011 01
018 25770402 KNOB, P/SEAT ADJR SW (CASHMERE) D29 (01D) 2010-2011 01
018 12451443 KNOB, P/SEAT ADJR SW (EBONY) (11.588) D29 (01G) 2010-2011 01
019 25752511 KNOB, P/SEAT RECL (GRAY) DW (02K) 2010-2011 01
019 25770401 KNOB, P/SEAT RECL (CASHMERE) D29 (01D) 2010-2011 01
019 12451464 KNOB, P/SEAT RECL (EBONY) (2-WAY) D29 (01G) 2010-2011 01
020 88993986 COVER, P/SEAT RECL FIN (GRAY) (OUTBOARD) DW (02K) 2010-2011 01
020 88993987 COVER, P/SEAT RECL FIN (EBONY) (OUTBOARD) DW (01G) 2010-2011 01
020 88993988 COVER, P/SEAT RECL FIN (CASHMERE) (OUTBOARD) DW (01D) 2010-2011 01
021 88995686 TAPE, P/SEAT CUSH CVR FSTN DW 2010-2011 02
022 11517996 NUT, P/SEAT BELT (RETR SI) (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) DW 2010-2011 01
023 25742613 PLATE, P/SEAT BELT ANC (RETR SI) D29 2010-2011 01
024 88994016 COVER, P/SEAT OTR ADJR RR FIN (GRAY) (RR) (O/B) (FLOOR) DW (01G) 2010-2011 01
024 88994017 COVER, P/SEAT OTR ADJR RR FIN (EBONY) (RR) (O/B) (FLOOR) DW (01D) 2010-2011 01
024 88994018 COVER, P/SEAT OTR ADJR RR FIN (CASHMERE) (RR) (O/B) (FLOOR) DW (02K) 2010-2011 01
024 88994016 COVER, P/SEAT OTR ADJR RR FIN (GRAY) (RR) (O/B) (FLOOR) DW (01G) 2010-2011 01
024 88994017 COVER, P/SEAT OTR ADJR RR FIN (EBONY) (RR) (O/B) (FLOOR) DW (01D) 2010-2011 01
024 88994018 COVER, P/SEAT OTR ADJR RR FIN (CASHMERE) (RR) (O/B) (FLOOR) DW (02K) 2010-2011 01
025 88994004 COVER, P/SEAT INR ADJR RR FIN (GRAY) (RR) (TOE KICK) DW (02K) 2010-2011 01
025 88994006 COVER, P/SEAT INR ADJR RR FIN (CASHMERE) (RR) (TOE KICK) DW (01D) 2010-2011 01
025 88994004 COVER, P/SEAT INR ADJR RR FIN (GRAY) (RR) (TOE KICK) DW (02K) 2010-2011 01
025 88994005 COVER, P/SEAT INR ADJR RR FIN (EBONY) (RR) (TOE KICK) DW (02K) 2010-2011 01
025 88994006 COVER, P/SEAT INR ADJR RR FIN (CASHMERE) (RR) (TOE KICK) DW (01D) 2010-2011 01
026 88992728 ADJUSTER, P/SEAT DW 2010-2011 01
027 88994010 COVER, P/SEAT INR ADJR LWR RR FIN (GRAY) (RR) (I/B) (FLOOR) DW (02K) 2010-2011 01
027 88994012 COVER, P/SEAT INR ADJR LWR RR FIN (CASHMERE) (RR) (I/B) (FLOOR) DW (01D) 2010-2011 01
027 88994010 COVER, P/SEAT INR ADJR LWR RR FIN (GRAY) (RR) (I/B) (FLOOR) DW (02K) 2010-2011 01
027 88994011 COVER, P/SEAT INR ADJR LWR RR FIN (EBONY) (RR) (I/B) (FLOOR) DW (01G) 2010-2011 01
027 88994012 COVER, P/SEAT INR ADJR LWR RR FIN (CASHMERE) (RR) (I/B) (FLOOR) DW (01D) 2010-2011 01
027 88994011 COVER, P/SEAT INR ADJR LWR RR FIN (EBONY) (RR) (I/B) (FLOOR) DW (01G) (EXPORT) 2010-2011 01
028 88993047 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL DW (KB6) 2010-2011 01
029 11509428 SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (P/SEAT) (8.977) 2010-2011 02
030 88992747 MODULE, P/SEAT HTR CONT (HEAT COOL) DW (KB6) (EXC KA1) 2010-2011 01
031 88952676 FRAME, P/SEAT CUSH DW 2010-2011 01
032 88994292 COVER, P/SEAT BELT OPG TR (RETR SI) (CASHMERE) DW (01D) 2010-2011 01
032 88994296 COVER, P/SEAT BELT OPG TR (RETR SI) (GRAY) DW (02K) 2010-2011 01
032 88994298 COVER, P/SEAT BELT OPG TR (RETR SI) (EBONY) DW (01G) 2010-2011 01
033 00332364 RETAINER, PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT BK FIN PNL (PUSH IN)) 2010-2011 08
034 88993045 HEATER, P/SEAT CUSH DW (KB6) (EXC KA1) 2010-2011 01
035 COVER, P/SEAT BK (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) (GRAY) (W/HEAT) 2010-2011
K01 19123721 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 2, 3) DW (KB6) (EXC KA1) 2010-2011 01
