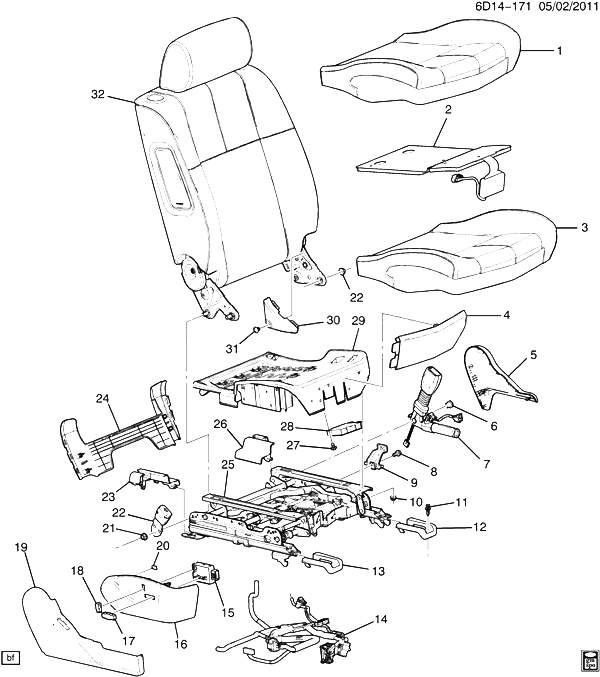

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19122949 |
COVER, P/SEAT CUSH (EBONY) |
DW (AQ9, 01G) (EXC AL2, KA1, KB6) |
2010-2011 |
01 |
| 001 |
19122951 |
COVER, P/SEAT CUSH (CASHMERE) |
DW (AQ9, 01D) (EXC AL2, KA1, KB6) |
2010-2011 |
01 |
| 001 |
19122953 |
COVER, P/SEAT CUSH (GRAY) |
DW (AQ9, 02K) (EXC AL2, KA1, KB6) |
2010-2011 |
01 |
| 001 |
88995092 |
COVER, P/SEAT CUSH (CASHMERE) |
DW (ECR, KB6, 01D) (EXC KA1) |
2010-2011 |
01 |
| 001 |
88995093 |
COVER, P/SEAT CUSH (EBONY) |
DW (ECR, KB6, 01G) (EXC KA1) |
2010-2011 |
01 |
| 001 |
88995267 |
COVER, P/SEAT CUSH (GRAY) (14.924) |
DW (ECR, KB6, 02K) (EXC KA1) |
2010-2011 |
01 |
| 002 |
|
SENSOR, AIRBAG FRT PASS PRESENCE (*KIT1) |
|
2010-2011 |
|
| 003 |
|
PAD, P/SEAT CUSH (*KIT1) |
|
2010-2011 |
|
| 004 |
19122908 |
COVER, P/SEAT CUSH FRT (CASHMERE) |
DW (01D) |
2010-2011 |
01 |
| 004 |
19122909 |
COVER, P/SEAT CUSH FRT (EBONY) |
DW (01G) |
2010-2011 |
01 |
| 004 |
19122910 |
COVER, P/SEAT CUSH FRT (GRAY) |
DW (02K) |
2010-2011 |
01 |
| 005 |
88993992 |
COVER, P/SEAT RECL FIN (GRAY) (INBOARD) |
DW (02K) |
2010-2011 |
01 |
| 005 |
88993993 |
COVER, P/SEAT RECL FIN (EBONY) (INBOARD) |
DW (01G) |
2010-2011 |
01 |
| 005 |
88993994 |
COVER, P/SEAT RECL FIN (CASHMERE) (INBOARD) |
DW (01D) |
2010-2011 |
01 |
| 006 |
88995198 |
NUT, P/SEAT BELT (BKL SI) (M10X1.5) (11.561) |
D |
2010-2011 |
01 |
| 007 |
89024406 |
BELT KIT, P/SEAT (BKL SI) (W/PRE-TENSR) (CASHMERE) |
DW (01D) (EXC AX4) |
2010-2011 |
01 |
| 007 |
89024408 |
BELT KIT, P/SEAT (BKL SI) (W/PRE-TENSR) (EBONY) |
DW29 (01G, 02H) (EXC AX4) |
2010-2011 |
01 |
| 007 |
89024407 |
BELT KIT, P/SEAT (BKL SI) (W/PRE-TENSR) (GRAY) |
DW (02K) (EXC AX4) |
2010-2011 |
01 |
| 007 |
10367763 |
BELT, P/SEAT (BKL SI) (CASHMERE) |
DW (AX4, 01D) (EXPORT) |
2010-2011 |
01 |
| 007 |
10367764 |
BELT, P/SEAT (BKL SI) (GRAY) |
DW (AX4, 02K) (EXPORT) |
2010-2011 |
01 |
| 007 |
10367765 |
BELT, P/SEAT (BKL SI) (EBONY) |
DW (AX4, 01G, 02H) (EXPORT) |
2010-2011 |
01 |
| 008 |
11515756 |
BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (P/SEAT) |
|
2010-2011 |
01 |
| 009 |
88994342 |
BRACKET, P/SEAT RECL LWR FIN CVR |
DW |
2010-2011 |
01 |
| 010 |
11517068 |
NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (P/SEAT) |
|
2010-2011 |
06 |
| 011 |
11589289 |
RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (P/SEAT ADJR FIN CVR) |
|
2010-2011 |
02 |
| 012 |
88996371 |
COVER, P/SEAT INR ADJR FRT FIN (GRAY) (FRT) (I/B) (FLOOR) |
DW (02K) |
2010-2011 |
01 |
| 012 |
88996372 |
COVER, P/SEAT INR ADJR FRT FIN (CASHMERE) (FRT) (I/B) (FLOOR) |
DW (01D) |
2010-2011 |
01 |
| 012 |
88996373 |
COVER, P/SEAT INR ADJR FRT FIN (EBONY) (FRT) (I/B) (FLOOR) |
DW (01G) |
2010-2011 |
01 |
| 012 |
88996372 |
COVER, P/SEAT INR ADJR FRT FIN (CASHMERE) (FRT) (I/B) (FLOOR) |
DW (01D) |
2010-2011 |
01 |
| 012 |
88996373 |
COVER, P/SEAT INR ADJR FRT FIN (EBONY) (FRT) (I/B) (FLOOR) |
DW (01G) |
2010-2011 |
01 |
| 013 |
88994022 |
COVER, P/SEAT OTR ADJR FRT FIN (GRAY) (FRT) (O/B) (FLOOR) |
DW (01G) |
2010-2011 |
01 |
| 013 |
88994023 |
COVER, P/SEAT OTR ADJR FRT FIN (EBONY) (FRT) (O/B) (FLOOR) |
DW (01D) |
2010-2011 |
01 |
| 013 |
88994024 |
COVER, P/SEAT OTR ADJR FRT FIN (CASHMERE) (FRT) (O/B) (FLOOR) |
DW (02K) |
2010-2011 |
01 |
| 013 |
88994022 |
COVER, P/SEAT OTR ADJR FRT FIN (GRAY) (FRT) (O/B) (FLOOR) |
DW (01G) |
2010-2011 |
01 |
| 013 |
88994023 |
COVER, P/SEAT OTR ADJR FRT FIN (EBONY) (FRT) (O/B) (FLOOR) |
DW (01D) |
2010-2011 |
01 |
| 013 |
88994024 |
COVER, P/SEAT OTR ADJR FRT FIN (CASHMERE) (FRT) (O/B) (FLOOR) |
DW (02K) |
2010-2011 |
01 |
| 014 |
88996096 |
HARNESS, P/SEAT WRG (BASE, SUP) |
DW (EXC AL2) |
2010-2011 |
01 |
| 015 |
12451440 |
SWITCH, P/SEAT ADJR RECL (8-WAY) (W/O KNOBS/BUTTONS) |
D29 |
2010-2011 |
01 |
| 016 |
88993980 |
BEZEL, P/SEAT ADJR SW (GRAY) |
DW (02K) (EXC AL2) |
2010-2011 |
01 |
| 016 |
88994856 |
BEZEL, P/SEAT ADJR SW (EBONY) |
DW (01G) (EXC AL2) |
2010-2011 |
01 |
| 016 |
88994857 |
BEZEL, P/SEAT ADJR SW (CASHMERE) |
DW (01D) (EXC AL2) |
2010-2011 |
01 |
| 017 |
25752512 |
KNOB, P/SEAT ADJR SW (GRAY) |
DW (02K) |
2010-2011 |
01 |
| 017 |
25770402 |
KNOB, P/SEAT ADJR SW (CASHMERE) |
D29 (01D) |
2010-2011 |
01 |
| 017 |
12451443 |
KNOB, P/SEAT ADJR SW (EBONY) (11.588) |
D29 (01G) |
2010-2011 |
01 |
| 018 |
25752511 |
KNOB, P/SEAT RECL (GRAY) |
DW (02K) |
2010-2011 |
01 |
| 018 |
25770401 |
KNOB, P/SEAT RECL (CASHMERE) |
D29 (01D) |
2010-2011 |
01 |
| 018 |
12451464 |
KNOB, P/SEAT RECL (EBONY) (2-WAY) |
D29 (01G) |
2010-2011 |
01 |
| 019 |
88993986 |
COVER, P/SEAT RECL FIN (GRAY) (OUTBOARD) |
DW (02K) |
2010-2011 |
01 |
| 019 |
88993987 |
COVER, P/SEAT RECL FIN (EBONY) (OUTBOARD) |
DW (01G) |
2010-2011 |
01 |
| 019 |
88993988 |
COVER, P/SEAT RECL FIN (CASHMERE) (OUTBOARD) |
DW (01D) |
2010-2011 |
01 |
| 020 |
88995686 |
TAPE, P/SEAT CUSH CVR FSTN |
DW |
2010-2011 |
02 |
| 021 |
11517996 |
NUT, P/SEAT BELT (RETR SI) (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
DW |
2010-2011 |
01 |
| 022 |
25742613 |
PLATE, P/SEAT BELT ANC (RETR SI) |
D29 |
2010-2011 |
01 |
| 023 |
88994016 |
COVER, P/SEAT OTR ADJR RR FIN (GRAY) (RR) (O/B) (FLOOR) |
DW (01G) |
2010-2011 |
01 |
| 023 |
88994017 |
COVER, P/SEAT OTR ADJR RR FIN (EBONY) (RR) (O/B) (FLOOR) |
DW (01D) |
2010-2011 |
01 |
| 023 |
88994018 |
COVER, P/SEAT OTR ADJR RR FIN (CASHMERE) (RR) (O/B) (FLOOR) |
DW (02K) |
2010-2011 |
01 |
| 023 |
88994016 |
COVER, P/SEAT OTR ADJR RR FIN (GRAY) (RR) (O/B) (FLOOR) |
DW (01G) |
2010-2011 |
01 |
| 023 |
88994017 |
COVER, P/SEAT OTR ADJR RR FIN (EBONY) (RR) (O/B) (FLOOR) |
DW (01D) |
2010-2011 |
01 |
| 023 |
88994018 |
COVER, P/SEAT OTR ADJR RR FIN (CASHMERE) (RR) (O/B) (FLOOR) |
DW (02K) |
2010-2011 |
01 |
| 024 |
88994004 |
COVER, P/SEAT INR ADJR RR FIN (GRAY) (RR) (TOE KICK) |
DW (02K) |
2010-2011 |
01 |
| 024 |
88994006 |
COVER, P/SEAT INR ADJR RR FIN (CASHMERE) (RR) (TOE KICK) |
DW (01D) |
2010-2011 |
01 |
| 024 |
88994004 |
COVER, P/SEAT INR ADJR RR FIN (GRAY) (RR) (TOE KICK) |
DW (02K) |
2010-2011 |
01 |
| 024 |
88994005 |
COVER, P/SEAT INR ADJR RR FIN (EBONY) (RR) (TOE KICK) |
DW (02K) |
2010-2011 |
01 |
| 024 |
88994006 |
COVER, P/SEAT INR ADJR RR FIN (CASHMERE) (RR) (TOE KICK) |
DW (01D) |
2010-2011 |
01 |
| 025 |
88992728 |
ADJUSTER, P/SEAT |
DW |
2010-2011 |
01 |
| 026 |
88994010 |
COVER, P/SEAT INR ADJR LWR RR FIN (GRAY) (RR) (I/B) (FLOOR) |
DW (02K) |
2010-2011 |
01 |
| 026 |
88994012 |
COVER, P/SEAT INR ADJR LWR RR FIN (CASHMERE) (RR) (I/B) (FLOOR) |
DW (01D) |
2010-2011 |
01 |
| 026 |
88994010 |
COVER, P/SEAT INR ADJR LWR RR FIN (GRAY) (RR) (I/B) (FLOOR) |
DW (02K) |
2010-2011 |
01 |
| 026 |
88994011 |
COVER, P/SEAT INR ADJR LWR RR FIN (EBONY) (RR) (I/B) (FLOOR) |
DW (01G) |
2010-2011 |
01 |
| 026 |
88994012 |
COVER, P/SEAT INR ADJR LWR RR FIN (CASHMERE) (RR) (I/B) (FLOOR) |
DW (01D) |
2010-2011 |
01 |
| 026 |
88994011 |
COVER, P/SEAT INR ADJR LWR RR FIN (EBONY) (RR) (I/B) (FLOOR) |
DW (01G) (EXPORT) |
2010-2011 |
01 |
| 027 |
11509428 |
SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (P/SEAT) (8.977) |
|
2010-2011 |
02 |
| 028 |
|
MODULE, AIRBAG FRT PASS PRESENCE (*KIT1) |
|
2010-2011 |
|
| 029 |
88952676 |
FRAME, P/SEAT CUSH |
DW |
2010-2011 |
01 |
| 030 |
88994292 |
COVER, P/SEAT BELT OPG TR (RETR SI) (CASHMERE) |
DW (01D) |
2010-2011 |
01 |
| 030 |
88994296 |
COVER, P/SEAT BELT OPG TR (RETR SI) (GRAY) |
DW (02K) |
2010-2011 |
01 |
| 030 |
88994298 |
COVER, P/SEAT BELT OPG TR (RETR SI) (EBONY) |
DW (01G) |
2010-2011 |
01 |
| 031 |
00332364 |
RETAINER, PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT BK FIN PNL (PUSH IN)) |
|
2010-2011 |
08 |
| 032 |
|
COVER, P/SEAT BK (SEE GROUP 14.000 SEAT ASM/PASSENGER-BACK FOR DETAILED ILLUSTRATED VIEW) (GRAY) (W/HEAT) |
|
2010-2011 |
|
| K01 |
19123721 |
MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 2, 3, 28) |
DW (KB6) (EXC KA1) |
2010-2011 |
01 |
| K01 |
19293282 |
MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 2, 3, 28) |
DW (EXC KB6) |
2010-2011 |
01 |
