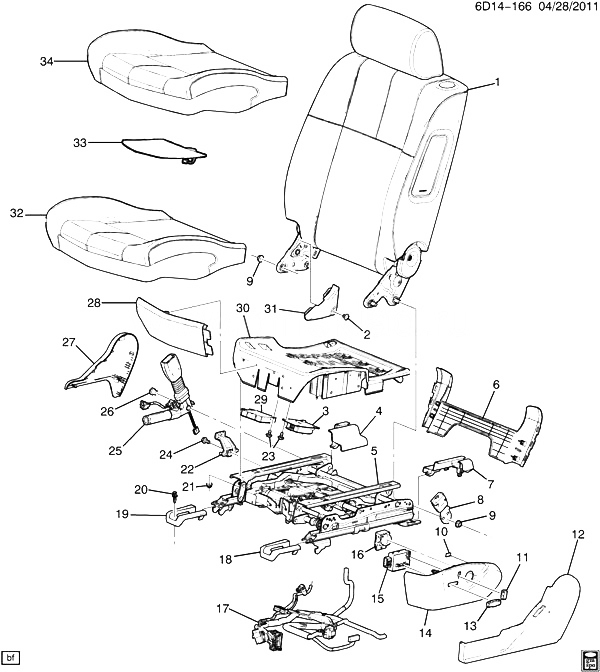

(6D14-166) 2010-2011 DW29 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-ПОДУШКА (POWER LUMBAR AL2, HEATED/SEAT KA1) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COVER, D/SEAT BK (SEE GROUP 14.000 SEAT ASM/DRIVER-BACK FOR DETAILED ILLUSTRATED VIEW) 2005-2011
002 00332364 RETAINER, PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT BK FIN PNL (PUSH IN)) 2005-2011 08
004 88994007 COVER, D/SEAT INR ADJR LWR RR FIN (FLOOR) (PAINT TO MATCH) DW 2010-2011 01
004 88994008 COVER, D/SEAT INR ADJR LWR RR FIN (EBONY) (FLOOR) DW (01G) 2010-2011 01
005 88952671 ADJUSTER, D/SEAT (W/MOTORS) DW (A45) 2005-2011 01
005 88992727 ADJUSTER, D/SEAT DW (EXC A45) 2005-2011 01
006 88994001 COVER, D/SEAT INR ADJR RR FIN (GRAY) DW (02K) 2010-2011 01
006 88994003 COVER, D/SEAT INR ADJR RR FIN (CASHMERE) DW (01D) 2010-2011 01
006 88994002 COVER, D/SEAT INR ADJR RR FIN (EBONY) DW (01G) 2011-2011 01
007 88994013 COVER, D/SEAT OTR ADJR RR FIN (GRAY) (FLOOR) DW (01G, 02K) 2010-2011 01
007 88994014 COVER, D/SEAT OTR ADJR RR FIN (EBONY) (FLOOR) DW (01D) 2010-2011 01
008 25742613 PLATE, D/SEAT BELT ANC (RETR SI) D29 2005-2011 01
009 11517996 NUT, D/SEAT BELT (RETR SI) (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) DW 2005-2011 04
010 88995686 TAPE, D/SEAT CUSH CVR FSTN DW 2005-2011 02
011 25752511 KNOB, D/SEAT RECL LVR (GRAY) DW (02K) 2010-2011 01
011 25770401 KNOB, D/SEAT RECL LVR (CASHMERE) D29 (01D) 2010-2011 01
011 12451464 KNOB, D/SEAT RECL LVR (EBONY) (2-WAY) D29 (01G) 2010-2011 01
012 88993983 COVER, D/SEAT RECL FIN (GRAY) (OUTBOARD) DW (02K) 2010-2011 01
012 88993984 COVER, D/SEAT RECL FIN (EBONY) (OUTBOARD) DW (01G) 2010-2011 01
012 88993985 COVER, D/SEAT RECL FIN (CASHMERE) (OUTBOARD) DW (01D) 2010-2011 01
013 12451443 KNOB, D/SEAT ADJR SW (EBONY) (11.588) D29 (01G) 2010-2011 01
013 25752512 KNOB, D/SEAT ADJR SW (GRAY) DW (02K) 2010-2011 01
013 25770402 KNOB, D/SEAT ADJR SW (CASHMERE) D29 (01D) 2010-2011 01
014 88993971 BEZEL, D/SEAT ADJR SW (GRAY) DW (AL2, 02K) 2010-2011 01
014 88993972 BEZEL, D/SEAT ADJR SW (EBONY) DW (AL2, 01G) 2010-2011 01
014 88993973 BEZEL, D/SEAT ADJR SW (CASHMERE) DW (AL2, 01D) 2010-2011 01
015 12451439 SWITCH, D/SEAT ADJR RECL (8-WAY W/O KNOBS/BUTTONS, ADJR RECL) D29 2005-2011 01
016 20844712 SWITCH, D/SEAT LUMBAR CONT (GRAY) DW (02K) 2010-2011 01
016 25802504 SWITCH, D/SEAT LUMBAR CONT (CASHMERE) (16.682) D29 (01D) 2010-2011 01
016 25802502 SWITCH, D/SEAT LUMBAR CONT (EBONY) (16.682) D29 (AL2, 01G) 2010-2011 01
017 88992752 HARNESS, D/SEAT WRG (W/LUMBAR/MEMORY/HEAT) DW (AL2, AQ9, A45, IL2, KA1, UX8) (EXC KB6) 2005-2011 01
017 88994226 HARNESS, D/SEAT WRG DW (AL2, AQ9, A45, KA1, UY5) (EXC KB6) 2005-2011 01
018 88994020 COVER, D/SEAT OTR ADJR FRT FIN (EBONY) (FLOOR) DW (01G) 2010-2011 01
018 88994021 COVER, D/SEAT OTR ADJR FRT FIN (CASHMERE) (FLOOR) DW (01D) 2010-2011 01
018 88994019 COVER, D/SEAT OTR ADJR FRT FIN (GRAY) (FLOOR) DW (02K) 2010-2011 01
019 88996368 COVER, D/SEAT INR ADJR FRT FIN (GRAY) DW (02K) 2010-2011 01
019 88996370 COVER, D/SEAT INR ADJR FRT FIN (EBONY) DW (01G) 2010-2011 01
019 88996369 COVER, D/SEAT ADJR FIN (CASHMERE) (FRT) (I/B) (FLOOR) DW (01D) 2010-2011 01
020 11589289 RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (P/SEAT ADJR FIN CVR) 2005-2011 02
021 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (D/SEAT) 2005-2011 06
022 88994341 BRACKET, D/SEAT RECL FIN CVR DW 2005-2011 01
023 11509428 SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (D/SEAT) (8.977) 2005-2011 03
024 11515756 BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (D/SEAT) 2005-2011 01
025 BELT, D/SEAT (BKL SI) (W/TENSR) (323, 393) 2005-2011
025 10367772 BELT, D/SEAT (BKL SI) (CASHMERE) DW (AX4, 01D) (EXPORT) 2010-2011 01
025 10367773 BELT, D/SEAT (BKL SI) (GRAY) DW (AX4, 02K) (EXPORT) 2010-2011 01
025 10367774 BELT, D/SEAT (BKL SI) (EBONY) DW (AX4, 01G) (EXPORT) 2010-2011 01
026 88995198 NUT, D/SEAT BELT (BKL SI) (M10X1.5) (11.561) D 2005-2011 01
027 88993989 COVER, D/SEAT RECL FIN (GRAY) (INBOARD) DW (02K) 2010-2011 01
027 88993990 COVER, D/SEAT RECL FIN (EBONY) (INBOARD) DW (01G) 2010-2011 01
027 88993991 COVER, D/SEAT RECL FIN (CASHMERE) (INBOARD) DW (01D) 2010-2011 01
028 88993995 COVER, D/SEAT CUSH FRT (GRAY) (11.573) DW (02K) 2010-2011 01
028 88993996 COVER, D/SEAT CUSH FRT (EBONY) (11.573) DW (01G) 2010-2011 01
028 88993997 COVER, D/SEAT CUSH FRT (CASHMERE) (11.573) DW (01D) 2010-2011 01
029 15870719 MODULE, D/SEAT ADJR MEMORY (W/LUMBAR) (INCLS SEAT HTR VENT CTRLS) (11.558) D29 2005-2011 01
029 15870719 MODULE, D/SEAT ADJR MEMORY (W/LUMBAR) (INCLS SEAT HTR VENT CTRLS) D29 2005-2011 01
030 88952675 FRAME, D/SEAT CUSH DW 2005-2011 01
031 88994291 COVER, D/SEAT BELT OPG TR (RETR SI) (GRAY) DW (02K) 2010-2011 01
031 88994295 COVER, D/SEAT BELT OPG TR (RETR SI) (EBONY) DW (01G) 2010-2011 01
031 88994297 COVER, D/SEAT BELT OPG TR (RETR SI) (CASHMERE) DW (01D) 2010-2011 01
032 88952680 PAD, D/SEAT CUSH DW (EXC KB6) 2005-2011 01
033 HEATER, F/SEAT CUSH FRT EXTN (PART OF 34) 2008-2011
034 19122958 COVER, D/SEAT CUSH (INCLS 33) (EBONY) DW (AL2, AQ9, A45, KA1, 01G) (EXC KB6) 2010-2011 01
034 19122960 COVER, D/SEAT CUSH (INCLS 33) (CASHMERE) DW (AL2, AQ9, KA1, 01D) (EXC KB6) 2010-2011 01
034 19122962 COVER, D/SEAT CUSH (INCLS 33) (GRAY) DW (AL2, AQ9, KA1, 02K) (EXC KB6) 2010-2011 01
