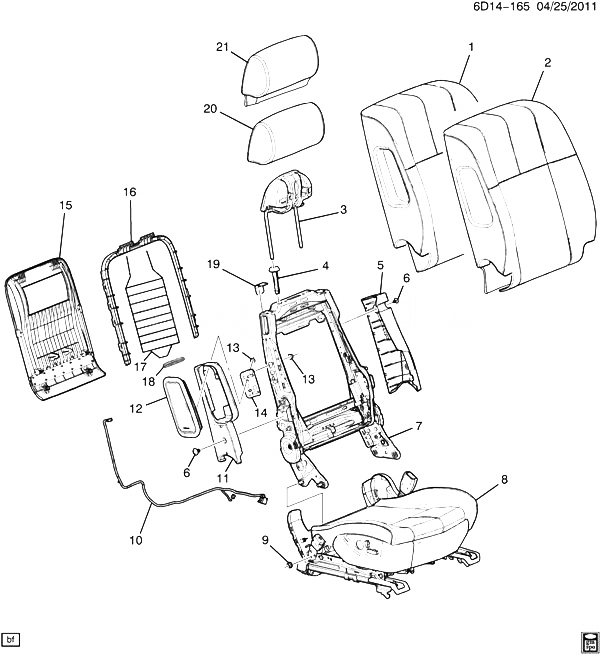

(6D14-165) 2009-2011 DW29 СИДЕНЬЕ В СБОРЕ/ПАССАЖИРА-СПИНКА (EXC POWER LUMBAR AL2, VENTED/HEATED KB6) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88952679 PAD, P/SEAT BK (W/SIAB) (W/O BOSE) DW (EXC KB6) 2005-2011 01
001 88994075 PAD, P/SEAT BK (W/BOSE, SIAB) DW (KA1) (EXC KB6) 2005-2011 01
002 19122917 COVER, P/SEAT BK (EBONY) DW (AQ9, 01G) (EXC AL2, KA1, KB6) 2010-2011 01
002 19122919 COVER, P/SEAT BK (CASHMERE) DW (AQ9, 01D) (EXC AL2, KA1, KB6) 2010-2011 01
002 19122921 COVER, P/SEAT BK (GRAY) DW (AQ9, 02K) (EXC AL2, KA1, KB6) 2010-2011 01
003 88897670 SUPPORT, P/SEAT H/RST D29 2008-2011 01
004 88994546 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) DW (01G) 2010-2011 01
004 88994608 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DW (02K) 2010-2011 01
004 88994609 GUIDE, P/SEAT H/RST (CASHMERE) (W/BUTTON) (11.625) DW (01D) 2010-2011 01
004 88994611 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) DW (02K) 2010-2011 01
004 88994612 GUIDE, P/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) DW (01D) 2010-2011 01
005 88992768 PANEL, P/SEAT BK FIN (FILLER) (INBOARD) DW 2005-2011 01
006 00332364 RETAINER, PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT BK FIN PNL (PUSH IN)) 2005-2011 08
007 88994921 FRAME, P/SEAT BK (W/O MEMORY) (W/RECL MOTOR) DW 2010-2011 01
008 COVER, P/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/PASSENGER-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2005-2011
009 11517996 NUT, P/SEAT BELT (RETR SI) (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) DW 2005-2011 01
010 15218855 HARNESS, AIRBAG WRG D29 (IL2, IL3, IL4) 2006-2011 02
010 15218855 HARNESS, AIRBAG WRG DW29 (AQ9, EBS) 2011-2011 01
011 88992020 PANEL, P/SEAT BK FIN (FILLER) (OUTBOARD) DW 2005-2011 01
012 15939007 AIRBAG, P/SEAT SI (CASHMERE) DW29 (01D) 2010-2011 01
012 15939008 AIRBAG, P/SEAT SI (EBONY) DW29 (EBS, ECR, 01G) (EXC AX4) 2010-2011 01
012 15939009 AIRBAG, P/SEAT SI (GRAY) DW29 (02K) 2010-2011 01
013 11517068 NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (P/SEAT) 2005-2011 06
014 88993161 HOUSING, F/SEAT SI AIRBAG DW 2005-2011 01
014 88993162 HOUSING, F/SEAT SI AIRBAG DW 2005-2011 01
015 88995213 PANEL, P/SEAT BK FIN (CASHMERE) DW (ECR, 01D) 2010-2011 01
015 88995214 PANEL, P/SEAT BK FIN (EBONY) DW (ECR, 01G) 2010-2011 01
015 88995265 PANEL, P/SEAT BK FIN (GRAY) DW (ECR, 02K) 2010-2011 01
015 19123713 PANEL, P/SEAT BK FIN (GRAY) (MATTE FINISH) DW (EBS, 02K) 2010-2011 01
015 19123714 PANEL, P/SEAT BK FIN (EBONY) (MATTE FINISH) DW (EBS, 01G) 2010-2011 01
015 19123715 PANEL, P/SEAT BK FIN (CASHMERE) (MATTE FINISH) DW (EBS, 01D) 2010-2011 01
016 88993281 RETAINER, P/SEAT BK FIN PNL (TRIM RING) (14.924) DW 2005-2011 01
017 88992736 SUPPORT, P/SEAT BK PAD DW 2005-2011 01
018 88995199 SPRING, P/SEAT BK PAD SUPT WIRE DW 2005-2011 01
019 88994323 CAP, D/SEAT H/RST GDE DW 2005-2011 01
019 88994324 CAP, D/SEAT H/RST GDE DW 2005-2011 01
020 88952658 PAD, P/SEAT H/RST D29 2005-2011 01
021 19124934 COVER, P/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 19122914) DW (EBS, 02K) (2ND DES) 2011-2011 01
021 19124935 COVER, P/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 19122912) DW (EBS, 01G) (2ND DES) 2011-2011 01
021 19124936 COVER, P/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 19122913) DW (EBS, 01D) (2ND DES) 2011-2011 01
021 19124938 COVER, P/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 88995270) DW (ECR, 02K) (EXC KA1) (2ND DES) 2011-2011 01
021 19124939 COVER, P/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 88995099) DW (ECR, 01G) (EXC KA1) (2ND DES) 2011-2011 01
021 19124940 COVER, P/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 88995098) DW (ECR, 01D) (EXC KA1) (2ND DES) 2011-2011 01
021 19122912 COVER, P/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124935) DW (EBS, 01G) (1ST DES) 2011-2011 01
021 19122913 COVER, P/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124936) DW (EBS, 01D) (1ST DES) 2011-2011 01
021 19122914 COVER, P/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124934) DW (EBS, 02K) (1ST DES) 2011-2011 01
021 88995098 COVER, P/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124940) DW (ECR, 01D) (EXC KA1) (1ST DES) 2011-2011 01
021 88995099 COVER, P/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124939) DW (ECR, 01G) (EXC KA1) (1ST DES) 2011-2011 01
021 88995270 COVER, P/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124938) DW (ECR, 02K) (1ST DES) 2011-2011 01
