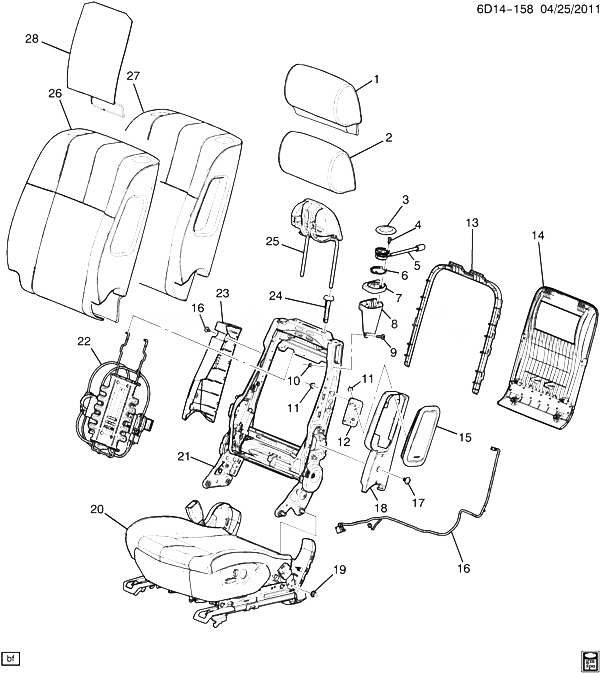

(6D14-158) 2010-2011 DW29 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-СПИНКА (POWER LUMBAR AL2, EXC VENTED/HEATED KB6) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19124934 COVER, D/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 19122914) DW (EBS, 02K) (2ND DES) 2011-2011 01
001 19124935 COVER, D/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 19122912) DW (EBS, 01G) (2ND DES) 2011-2011 01
001 19124936 COVER, D/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 19122913) DW (EBS, 01D) (2ND DES) 2011-2011 01
001 19124938 COVER, D/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 88995270) DW (ECR, 02K) (EXC KA1) (2ND DES) 2011-2011 01
001 19124939 COVER, D/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 88995099) DW (ECR, 01G) (EXC KA1) (2ND DES) 2011-2011 01
001 19124940 COVER, D/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 8 INCHES) (FOR 1ST DES SEE 88995098) DW (ECR, 01D) (EXC KA1) (2ND DES) 2011-2011 01
001 19122912 COVER, D/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124935) DW (EBS, 01G) (1ST DES) 2011-2011 01
001 19122913 COVER, D/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124936) DW (EBS, 01D) (1ST DES) 2011-2011 01
001 19122914 COVER, D/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124934) DW (EBS, 02K) (1ST DES) 2011-2011 01
001 88995098 COVER, D/SEAT H/RST (CASHMERE) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124940) DW (ECR, 01D) (EXC KA1) (1ST DES) 2011-2011 01
001 88995099 COVER, D/SEAT H/RST (EBONY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124939) DW (ECR, 01G) (EXC KA1) (1ST DES) 2011-2011 01
001 88995270 COVER, D/SEAT H/RST (GRAY) (RESTRAINT HGHT OF 6 INCHES) (FOR 2ND DES SEE 19124938) DW (ECR, 02K) (1ST DES) 2011-2011 01
002 88952658 PAD, D/SEAT H/RST D29 2005-2011 01
003 88994025 GRILLE, D/SEAT H/RST SPKR (LT. GREY) DW29 (02K) 2011-2011 02
003 88994026 GRILLE, D/SEAT H/RST SPKR (EBONY) DW29 (01G) 2011-2011 02
003 88994027 GRILLE, D/SEAT H/RST SPKR (CASHMERE) DW29 (01D) 2010-2011 02
004 11519849 SCREW, PAN HD W/FLAT WA, M4.2X1.41X20, 8.15 O.D., ABHL PT, STL, 6138M (D/SEAT) 2005-2011 04
005 25773787 SPEAKER, D/SEAT H/RST DW29 2005-2011 02
006 88992600 SUPPORT, D/SEAT H/RST SPKR HSG DW29 2005-2011 02
007 88992595 HOUSING, D/SEAT H/RST SPKR (UPPER) D29 2005-2011 01
007 88992596 HOUSING, D/SEAT H/RST SPKR (UPPER) D29 2005-2011 01
008 88992597 HOUSING, D/SEAT H/RST SPKR (LOWER) D29 2005-2011 01
008 88992598 HOUSING, D/SEAT H/RST SPKR (LOWER) D29 2005-2011 01
009 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (D/SEAT) 2005-2011 02
010 11570654 NUT, D/SEAT (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) D29 2005-2011 02
011 NUT, D/SEAT SI AIRBAG 2010-2011
012 88993161 HOUSING, F/SEAT SI AIRBAG DW 2005-2011 01
013 88993281 RETAINER, D/SEAT BK FIN PNL (TRIM RING) (14.924) DW 2005-2011 01
014 88995213 PANEL, D/SEAT BK FIN (CASHMERE) DW (ECR, 01D) 2010-2011 01
014 88995214 PANEL, D/SEAT BK FIN (EBONY) DW (ECR, 01G) 2010-2011 01
014 88995265 PANEL, D/SEAT BK FIN (GRAY) DW (ECR, 02K) 2010-2011 01
014 19123713 PANEL, D/SEAT BK FIN (GRAY) (MATTE FINISH) DW (EBS, 02K) 2010-2011 01
014 19123714 PANEL, D/SEAT BK FIN (EBONY) (MATTE FINISH) DW (EBS, 01G) 2010-2011 01
014 19123715 PANEL, D/SEAT BK FIN (CASHMERE) (MATTE FINISH) DW (EBS, 01D) 2010-2011 01
015 15939003 AIRBAG, D/SEAT SI (CASHMERE) DW29 (01D) 2010-2011 01
015 15939004 AIRBAG, D/SEAT SI (EBONY) DW29 (01G) 2010-2011 01
015 15939005 AIRBAG, D/SEAT SI (GRAY) DW (02K) 2010-2011 01
016 15218855 HARNESS, AIRBAG WRG D29 (IL2, IL3, IL4) 2006-2011 02
016 15218855 HARNESS, AIRBAG WRG DW29 (AQ9, EBS) 2011-2011 01
017 00332364 RETAINER, PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT BK FIN PNL (PUSH IN)) 2005-2011 08
018 88992019 PANEL, D/SEAT BK FIN (FILLER) (OUTBOARD) DW 2006-2011 01
019 11517996 NUT, D/SEAT BELT (RETR SI) (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) DW 2005-2011 04
020 COVER, D/SEAT CUSH (SEE GROUP 14.000 SEAT ASM/DRIVER-CUSHION FOR DETAILED ILLUSTRATED VIEW) 2005-2011
021 88994920 FRAME, D/SEAT BK (W/O MEMORY) (INCLS RECL MOTOR) DW 2005-2011 01
021 88994922 FRAME, D/SEAT BK (MAY NEED TO ORDER EITHER JUMPER 19250561 (FOR WHITE CONNECTOR) OR JUMPER 19250562 (FOR BLACK CONNECTOR) TO ASSIST IN CONNECTING W/WIRE HARNESS) (W/MEMORY) (INCLS RECL MOTOR) DW 2005-2011 01
022 88992732 LUMBAR SUB, D/SEAT (4-WAY PWR) (W/MEMORY) (INCLS MOTORS) D29 2005-2011 01
023 88992767 PANEL, D/SEAT BK FIN (FILLER) (INBOARD) DW 2006-2011 01
024 88994608 GUIDE, D/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DW (02K) 2010-2011 01
024 88994609 GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) (11.625) DW (01D) 2010-2011 01
024 88994611 GUIDE, D/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) DW (02K) 2010-2011 01
024 88994612 GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) DW (01D) 2010-2011 01
024 88994550 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) DW (01G) 2010-2011 01
024 88994550 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) DW (01G) 2010-2011 01
024 88994546 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) DW (01G) 2010-2011 01
025 88897670 SUPPORT, D/SEAT H/RST D29 2008-2011 01
026 19122918 COVER, D/SEAT BK (INCLS 28) (EBONY) DW (AQ9, 01G) (EXC AL2, KA1, KB6) 2010-2011 01
026 19122920 COVER, D/SEAT BK (INCLS 28) (CASHMERE) DW (AQ9, 01D) (EXC AL2, KA1, KB6) 2010-2011 01
026 19122922 COVER, D/SEAT BK (INCLS 28) (GRAY) DW (AQ9, EBS, UX8, 02K) (EXC AL2, AX4, A45, KA1, KB6) 2010-2011 01
026 19122926 COVER, D/SEAT BK (INCLS 28) (EBONY) (W/HEAT) DW (AL2, AQ9, A45, KA1, 01G) (EXC KB6) 2010-2011 01
026 19122928 COVER, D/SEAT BK (INCLS 28) (CASHMERE) (W/HEAT) DW (AL2, AQ9, A45, KA1, 01D) (EXC KB6) 2010-2011 01
026 19122930 COVER, D/SEAT BK (INCLS 28) (GRAY) (W/HEAT) DW (AL2, AQ9, A45, KA1, 02K) (EXC KB6) 2010-2011 01
026 19122934 COVER, D/SEAT BK (INCLS 28) (EBONY) (W/HEAT BOSE) DW (AL2, AQ9, AX4, A45, KA1, 01G) (EXC KB6) (EXPORT) 2010-2011 01
026 19122936 COVER, D/SEAT BK (INCLS 28) (CASHMERE) (W/HEAT BOSE) DW (AL2, AQ9, AX4, A45, KA1, 01D) (EXC KB6) (EXPORT) 2010-2011 01
026 19122938 COVER, D/SEAT BK (INCLS 28) (GRAY) (W/HEAT BOSE) DW (AL2, AQ9, AX4, A45, KA1, 02K) (EXC KB6) (EXPORT) 2010-2011 01
027 88952678 PAD, D/SEAT BK (W/O BOSE) DW (EXC KB6) 2005-2011 01
027 88994074 PAD, D/SEAT BK (W/BOSE) DW (KA1) (EXC KB6) 2005-2011 01
028 HEATER, D/SEAT BK (PART OF 26) 2010-2011
