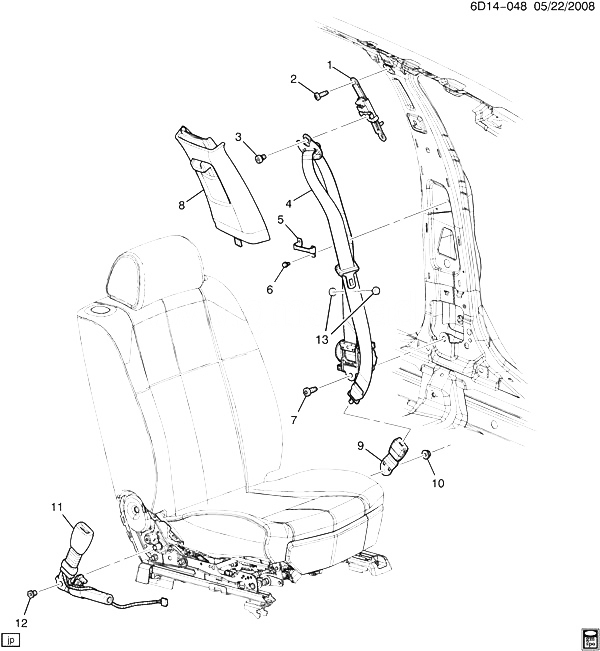

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15209571 |
ADJUSTER, D/SEAT SHLDR BELT GDE (INCLS 2) |
D29 |
2005-2011 |
01 |
| 002 |
|
BOLT, D/SEAT SHLDR BELT GDE TRK (PART OF 1) |
|
2010-2011 |
|
| 003 |
|
BOLT, D/SEAT SHLDR BELT UPR (PART OF 4) |
|
2010-2011 |
|
| 004 |
19207850 |
BELT KIT, D/SEAT (RETR SI) (INCLS 3, 7, 13) (EBONY) |
DW (4AL) (EXC AX4, W21) |
2010-2011 |
01 |
| 004 |
19207851 |
BELT KIT, D/SEAT (RETR SI) (INCLS 3, 7, 13) (GRAY) |
DW (4BF) (EXC AX4) |
2010-2011 |
01 |
| 004 |
19207852 |
BELT KIT, D/SEAT (RETR SI) (INCLS 3, 7, 13) (CASHMERE) |
DW (4AC, 4BG) (EXC AX4) |
2010-2011 |
01 |
| 004 |
19208554 |
BELT KIT, D/SEAT (RETR SI) (INCLS 3, 7, 13) (EBONY) |
DW (W21, 4AL) (EXC AX4) |
2010-2011 |
01 |
| 004 |
20763965 |
BELT, D/SEAT (RETR SI) (INCLS 3, 7, 13) (EBONY) |
DW (AX4, W21, 4AL) (EXPORT) |
2010-2011 |
01 |
| 004 |
25965948 |
BELT, D/SEAT (RETR SI) (INCLS 3, 7, 13) (EBONY) |
DW (AX4, 4AL) (EXC W21) (EXPORT) |
2010-2011 |
01 |
| 004 |
25965949 |
BELT, D/SEAT (RETR SI) (INCLS 3, 7, 13) (GRAY) |
DW (AX4, 4BF) (EXPORT) |
2010-2011 |
01 |
| 005 |
10197674 |
GUIDE, D/SEAT SHLDR BELT (BLACK) |
DW29 |
2005-2011 |
01 |
| 006 |
11515704 |
BOLT, D/SEAT SHLDR BELT GDE (M6X1X16, 13 THD) (8.900) |
DW |
2010-2011 |
02 |
| 007 |
|
BOLT, D/SEAT SHLDR BELT LOWER (PART OF 4) |
|
2010-2011 |
|
| 008 |
|
PANEL, CTR PLR UPR TR (SEE GROUP 14.000 TRIM/CENTER PILLAR QUARTER FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
| 009 |
25742613 |
PLATE, D/SEAT BELT ANC (RETR SI) |
D29 |
2005-2011 |
01 |
| 010 |
11517996 |
NUT, D/SEAT BELT (RETR SI) (M10X1.5, 11.2THK) (21.5 OD) (8.917) (ACDelco #11517996) |
DW |
2005-2011 |
04 |
| 011 |
89024409 |
BELT KIT, D/SEAT (BKL SI) (W/PRE-TENSR) (CASHMERE) |
DW (01D) (EXC AX4) |
2010-2011 |
01 |
| 011 |
89024410 |
BELT KIT, D/SEAT (BKL SI) (W/PRE-TENSR) (GRAY) |
DW (02K) (EXC AX4) |
2010-2011 |
01 |
| 011 |
89024411 |
BELT KIT, D/SEAT (BKL SI) (W/PRE-TENSR) (EBONY) |
DW (01G) (EXC AX4) |
2010-2011 |
01 |
| 011 |
10367772 |
BELT, D/SEAT (BKL SI) (CASHMERE) |
DW (AX4, 01D) (EXPORT) |
2010-2011 |
01 |
| 011 |
10367773 |
BELT, D/SEAT (BKL SI) (GRAY) |
DW (AX4, 02K) (EXPORT) |
2010-2011 |
01 |
| 011 |
10367774 |
BELT, D/SEAT (BKL SI) (EBONY) |
DW (AX4, 01G) (EXPORT) |
2010-2011 |
01 |
| 012 |
88995198 |
NUT, D/SEAT BELT (BKL SI) (M10X1.5) (11.561) |
D |
2005-2011 |
01 |
| 013 |
12475408 |
STOP KIT, BELT LAT (RETR SI) (PART OF 4) (GRAY) (16.714) |
D (4BF) |
2010-2011 |
01 |
| 013 |
19121443 |
STOP KIT, BELT LAT (RETR SI) (PART OF 4) (TITANIUM) |
D (4AM) |
2010-2011 |
01 |
| 013 |
19121445 |
STOP KIT, BELT LAT (RETR SI) (PART OF 4) (CASHMERE) |
D (4AC, 4BG) |
2010-2011 |
01 |
| 013 |
19121446 |
STOP KIT, BELT LAT (RETR SI) (PART OF 4) (EBONY) |
D (4AL, 4AR) |
2010-2011 |
01 |
