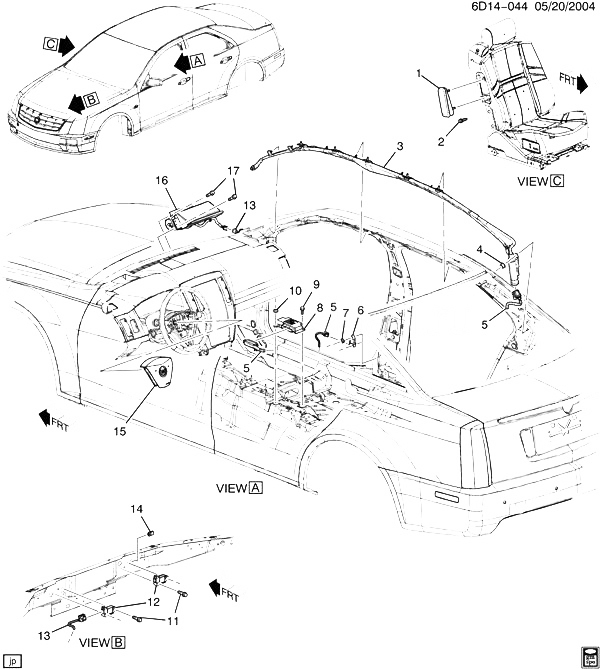

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15939003 |
AIRBAG, D/SEAT SI (CASHMERE) |
DW29 (01D) |
2010-2011 |
01 |
| 001 |
15939004 |
AIRBAG, D/SEAT SI (EBONY) |
DW29 (01G) |
2010-2011 |
01 |
| 001 |
15939005 |
AIRBAG, D/SEAT SI (GRAY) |
DW (02K) |
2010-2011 |
01 |
| 001 |
15939007 |
AIRBAG, P/SEAT SI (CASHMERE) |
DW29 (01D) |
2010-2011 |
01 |
| 001 |
15939008 |
AIRBAG, P/SEAT SI (EBONY) |
DW29 (EBS, ECR, 01G) (EXC AX4) |
2010-2011 |
01 |
| 001 |
15939009 |
AIRBAG, P/SEAT SI (GRAY) |
DW29 (02K) |
2010-2011 |
01 |
| 002 |
11514623 |
BOLT, HEX W/CON WA, M6X1X20 (P/SEAT SI AIRBAG) |
|
2005-2011 |
02 |
| 002 |
11514623 |
BOLT, HEX W/CON WA, M6X1X20 (D/SEAT SI AIRBAG) |
|
2005-2011 |
02 |
| 003 |
15929880 |
AIRBAG, RF S/RL |
D29 |
2005-2011 |
01 |
| 003 |
15929881 |
AIRBAG, RF S/RL |
D29 |
2005-2011 |
01 |
| 004 |
11609411 |
NUT, R/RAIL AIRBAG (ATTACHES TO INNER PILLAR) (6 X 1, 5.07THK) (HEX-CHROME FREE FINISH) (8.917) |
DW29 |
2005-2011 |
04 |
| 005 |
|
HARNESS, BODY WRG (SEE GROUP 13.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
| 006 |
25782701 |
SENSOR, AIRBAG SI IMP |
D29 |
2009-2011 |
02 |
| 007 |
11561645 |
NUT, FRT S/D AIRBAG SI IMP (2 NUTS PER SIDE IMPACT SATELLITE) (2 NUTS PER SIDE IMPACT SATELLITE) (M6X1, 3.45THK, 13.5 OD) (CONTAINS CONDUCTIVE FINISH FOR ELECTRICAL GROUND) (8.915) |
DW29 |
2010-2011 |
04 |
| 008 |
25816180 |
MODULE, AIRBAG SEN DIAGN |
D29 |
2011-2011 |
01 |
| 009 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (AIRBAG DIAGN ENGY RESV MDL) |
|
2005-2011 |
01 |
| 010 |
11561645 |
NUT, AIRBAG DIAGN ENGY RESV MDL (SDM CASE GROUNDING ATTACHMENT) (M6X1, 3.45THK, 13.5 OD) (CONTAINS CONDUCTIVE FINISH FOR ELECTRICAL GROUND) (8.915) |
D |
2006-2011 |
02 |
| 011 |
11519385 |
BOLT, AIRBAG F/END DISCRM SEN (M6X1X33, 17 OD) (8.900) |
DW |
2007-2011 |
04 |
| 012 |
25782720 |
SENSOR, AIRBAG F/END DISCRM |
DW |
2009-2011 |
02 |
| 013 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
| 014 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (AIRBAG F/END DISCRM SEN) |
|
2010-2011 |
04 |
| 015 |
20808933 |
AIRBAG, STRG WHL (EBONY) |
DW29 (4AL, 4BF, 4BH) |
2010-2011 |
01 |
| 015 |
20808933 |
AIRBAG, STRG WHL (EBONY) (14.865) |
DW29 (4AL, 4BF) |
2010-2011 |
01 |
| 015 |
20808934 |
AIRBAG, STRG WHL (CASHMERE) |
DW29 (4BG) |
2010-2011 |
01 |
| 015 |
20808934 |
AIRBAG, STRG WHL (CASHMERE) (14.865) |
DW29 (4BG) |
2010-2011 |
01 |
| 015 |
20808932 |
AIRBAG, STRG WHL (COCOA) |
DW29 (4AC) |
2010-2011 |
01 |
| 015 |
20808932 |
AIRBAG, STRG WHL (COCOA) (14.865) |
DW29 (4AC) |
2010-2011 |
01 |
| 016 |
15281906 |
AIRBAG, I/P |
DW29 |
2006-2011 |
01 |
| 017 |
11609538 |
BOLT-HEX, W/FL WA, M7X1X25, 16 THD, 17 OD, 6202M, GMW3200, TAPTITE. (I/P AIRBAG) |
|
2005-2011 |
AR |
