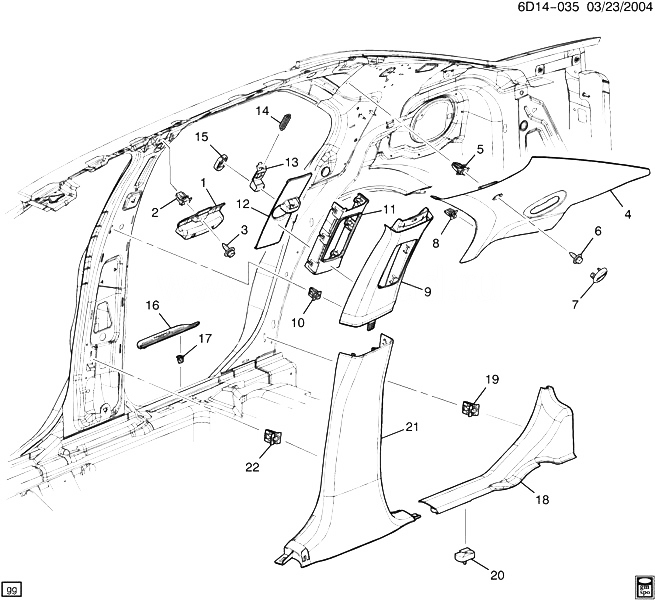

(6D14-035) 2005-2011 D29 TRIM/CENTER PILLAR QUARTER CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25751892 BRACKET, CTR PLR T/PNL (INCLS 2, 3) DW 2006-2011 02
002 11609651 CLIP, CTR PLR CTR T/PNL (PART OF 1) (METAL PUSH-IN NUT, M4.2X1.41, 21.8X15X20.5) (14.731) D29 2006-2011 02
003 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 1) 2005-2011 02
004 25782799 PANEL, QTR UPR TR (INCLS 5-8) (GRAY) DW (4BF) 2010-2011 01
004 25782799 PANEL, QTR UPR TR (INCLS 5-8) (GRAY) DW (4AL) (EXC W21) 2010-2011 01
004 25782800 PANEL, QTR UPR TR (INCLS 5-8) (GRAY) DW (4BF) 2010-2011 01
004 25782800 PANEL, QTR UPR TR (INCLS 5-8) (GRAY) DW (4AL) (EXC W21) 2010-2011 01
004 25782801 PANEL, QTR UPR TR (INCLS 5-8) (CASHMERE) DW (4AC, 4BG) (EXC W21) 2010-2011 01
004 25782802 PANEL, QTR UPR TR (INCLS 5-8) (CASHMERE) DW (4AC, 4BG) (EXC W21) 2010-2011 01
004 25831765 PANEL, QTR UPR TR (INCLS 5-8) (CASHMERE) DW (W21, 4AC, 4AL) 2010-2011 01
004 25831766 PANEL, QTR UPR TR (INCLS 5-8) (CASHMERE) DW (W21, 4AC, 4AL) 2010-2011 01
005 11609651 RETAINER, QTR UPR T/PNL (PART OF 4) (METAL PUSH-IN NUT, M4.2X1.41, 21.8X15X20.5) (14.731) DW29 (W21) 2008-2011 02
005 11609651 NUT, W/S G/MLDG (PART OF 4) (METAL PUSH-IN NUT, M4.2X1.41, 21.8X15X20.5) (14.731) DW29 2010-2011 02
006 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (PART OF 4) 2005-2011 02
007 25772916 PLUG, CTR PLR UPR G/MLDG BOLT HOLE FIN (PART OF 4) (GRAY) (AIRBAG) (14.865) DW (4AL, 4BF, 4BH) 2010-2011 02
007 10393499 PLUG, CTR PLR UPR G/MLDG BOLT HOLE FIN (PART OF 4) (CASHMERE) (AIRBAG) (14.865) DW29 (4AC, 4BG) (EXC W21) 2010-2011 02
007 10393499 PLUG, CTR PLR UPR G/MLDG BOLT HOLE FIN (PART OF 4) (CASHMERE) (AIRBAG) (14.865) DW29 (4AC, 4BG) (EXC W21) (EXPORT) 2010-2011 02
008 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 4) 2005-2011 04
009 25831757 PANEL, CTR PLR UPR TR (INCLS 10-15) (CASHMERE) DW (W21, 4AC, 4AL) 2010-2011 01
009 25831758 PANEL, CTR PLR UPR TR (INCLS 10-15) (CASHMERE) DW (W21, 4AC, 4AL) 2010-2011 01
009 25885455 PANEL, CTR PLR UPR TR (INCLS 10-15) (GRAY) DW (4AL) (EXC W21) 2010-2011 01
009 25885455 PANEL, CTR PLR UPR TR (INCLS 10-15) (GRAY) DW (4BF) 2010-2011 01
009 25885456 PANEL, CTR PLR UPR TR (INCLS 10-15) (GRAY) DW (4AL) (EXC W21) 2010-2011 01
009 25885456 PANEL, CTR PLR UPR TR (INCLS 10-15) (GRAY) DW (4BF) 2010-2011 01
009 25885457 PANEL, CTR PLR UPR TR (INCLS 10-15) (CASHMERE) DW (4AC, 4BG) (EXC W21) 2010-2011 01
009 25885458 PANEL, CTR PLR UPR TR (INCLS 10-15) (CASHMERE) DW (4AC, 4BG) (EXC W21) 2010-2011 01
010 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 9) 2005-2011 04
011 89023585 INSERT, BODY SI T/PNL (PART OF 9) (GRAY) DW (4AL) (EXC W21) 2010-2011 01
011 89023585 INSERT, BODY SI T/PNL (PART OF 9) (GRAY) DW (4BF) 2010-2011 01
011 89023587 INSERT, BODY SI T/PNL (PART OF 9) (CASHMERE) DW (4AC, 4BG) (EXC W21) 2010-2011 01
011 89023588 INSERT, BODY SI T/PNL (PART OF 9) (GRAY) DW (4AL) (EXC W21) 2010-2011 01
011 89023588 INSERT, BODY SI T/PNL (PART OF 9) (GRAY) DW (4BF) 2010-2011 01
011 89023584 INSERT, BODY SI T/PNL (PART OF 9) (CASHMERE) DW (4AC, 4BG) (EXC W21) 2010-2011 01
012 89023306 PLATE, BODY SI INR PNL UPR (PART OF 9) DW (4AC, 4BG) (EXC W21) 2010-2011 01
012 89023579 PLATE, BODY SI INR PNL UPR (PART OF 9) (GRAY) DW29 (4BF) 2010-2011 01
012 89023579 PLATE, BODY SI INR PNL UPR (PART OF 9) (GRAY) DW29 (4AL) (EXC W21) 2010-2011 01
012 89023581 PLATE, BODY SI INR PNL UPR (PART OF 9) (CASHMERE) DW (4AC, 4BG) (EXC W21) 2010-2011 01
012 89023582 PLATE, BODY SI INR PNL UPR (PART OF 9) (GRAY) DW29 (4BF) 2010-2011 01
012 89023582 PLATE, BODY SI INR PNL UPR (PART OF 9) (GRAY) DW29 (4AL) (EXC W21) 2010-2011 01
013 19181700 HINGE, BODY SI WDO UPR (PART OF 9) (GRAY) (CTR PUSHBUTTON) DW29 (4AL, 4BF) (EXC W21) 2010-2011 02
013 19181701 HINGE, BODY SI WDO UPR (PART OF 9) (CASHMERE) (CTR PUSHBUTTON) DW (4AC, 4BG) (EXC W21) 2010-2011 02
014 89023301 EXTENSION, BODY SI UPR T/PNL (PART OF 9) (14.545) DW (EXC W21) 2005-2011 02
015 89023303 COVER, CTR PLR UPR T/PNL BOLT (PART OF 9) (CASHMERE) D29 2005-2011 02
015 89023304 COVER, CTR PLR UPR T/PNL BOLT (PART OF 9) (GRAY) D29 2005-2011 02
016 15795698 PLATE, RR S/D SILL NA (INCLS 17) (CADILLAC) DW (W21) 2007-2011 02
016 25762034 PLATE, RR S/D SILL NA (INCLS 17) (CADILLAC) DW (EXC W21) 2007-2011 02
017 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 16) 2005-2011 02
018 25769891 PLATE, RR S/D SILL TR (INCLS 19, 20) (EBONY) DW (4AL) 2010-2011 01
018 25769892 PLATE, RR S/D SILL TR (INCLS 19, 20) (CASHMERE) DW (4AC, 4BG) 2010-2011 01
018 25769893 PLATE, RR S/D SILL TR (INCLS 19, 20) (GRAY) DW (4BF) 2010-2011 01
018 25769894 PLATE, RR S/D SILL TR (INCLS 19, 20) (EBONY) DW (4AL) 2010-2011 01
018 25769895 PLATE, RR S/D SILL TR (INCLS 19, 20) (CASHMERE) DW (4AC, 4BG) 2010-2011 01
018 25769896 PLATE, RR S/D SILL TR (INCLS 19, 20) (GRAY) DW (4BF) 2010-2011 01
019 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 18) 2005-2011 04
020 25672428 RETAINER, RR S/D SILL TR PLT (PART OF 18) (7 X 14MM HOLE) (RECTANGLE) (11.175) D29 2005-2011 04
021 25769912 PANEL, CTR PLR LWR TR (INCLS 22) (EBONY) DW (4AL) 2010-2011 01
021 25769913 PANEL, CTR PLR LWR TR (INCLS 22) (CASHMERE) DW (4AC, 4BG) 2010-2011 01
021 25769914 PANEL, CTR PLR LWR TR (INCLS 22) (GRAY) DW (4BF) 2010-2011 01
021 25769915 PANEL, CTR PLR LWR TR (INCLS 22) (EBONY) DW (4AL) 2010-2011 01
021 25769916 PANEL, CTR PLR LWR TR (INCLS 22) (CASHMERE) DW (4AC, 4BG) 2010-2011 01
021 25769917 PANEL, CTR PLR LWR TR (INCLS 22) (GRAY) DW (4BF) 2010-2011 01
022 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 21) 2005-2011 16
