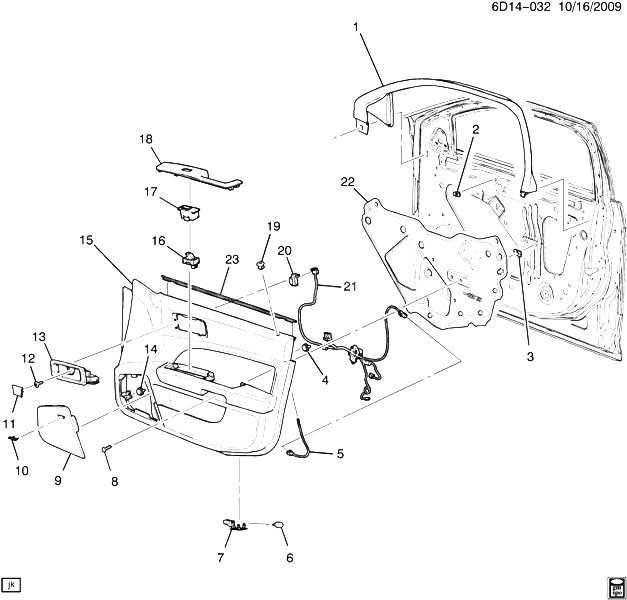

(6D14-032) 2010-2011 DW29 ОТДЕЛКА ПЕРЕДНЕЙ ДВЕРИ ПАССАЖИРА CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15265339 WEATHERSTRIP, FRT S/D WDO DW 2006-2011 01
002 11570654 NUT, FRT S/D TR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) DW29 2010-2011 02
003 20310739 NUT, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D29 2005-2011 04
004 11562044 RETAINER, FRT S/D T/PNL (PART OF 15) (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) DW 2006-2011 06
005 25799901 INDICATOR, DR LK STATUS (PART OF 15) (INCLS 19) (EBONY) D29 2005-2011 02
006 19115808 BULB, FRT S/D C/LP (PART OF 7, 15) (8.991) (ACDelco #19115808) D 2005-2011 02
007 10359030 LAMP, CTSY (PART OF 15) (INCLS 6) D 2005-2011 01
008 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (PART OF 15) 2005-2011 02
009 GRILLE, RDO FRT S/D LWR SPKR (PART OF 15) 2010-2011
010 10291759 EMBLEM, RDO FRT S/D SPKR GRL (PART OF 15) D29 2005-2011 02
011 10373148 COVER, FRT S/D I/S HDL BZL FIN (EBONY) DW29 (4AL, 4BF) 2010-2011 01
011 10373150 COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) DW (4BG) 2010-2011 01
011 15774288 COVER, FRT S/D I/S HDL BZL FIN (COCOA) DW (4AC) 2010-2011 01
012 11508231 SCREW, RD CROWNED WA HD, SELF TAP, M4.2X1.41X16, POR (FRT S/D TR) 2005-2011 02
013 HANDLE, FRT S/D I/S (PART OF 15) (4AC) 2010-2011
013 10370355 HANDLE, FRT S/D I/S (PART OF 15) (CASHMERE) DW (FFF, FFG, 1AE, 4BG) 2010-2011 01
013 10370356 HANDLE, FRT S/D I/S (PART OF 15) (EBONY) (REQUIRES QTY 2 11501793 NUT) D29 (4AL, 4BF) 2010-2011 01
014 11562043 RETAINER, FRT S/D T/PNL (PART OF 15) (W/O SEAL) (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950) DW 2010-2011 10
015 15933395 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (EBONY) DW (B20, 4AL) 2010-2011 01
015 15933396 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (GRAY) (TUSCANY LEATHER) DW (B20, 4BF) 2010-2011 01
015 15933397 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (CASHMERE) (TUSCANY LEATHER) DW (B20, 4BG) 2010-2011 01
015 20755615 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (CASHMERE) (W/BASE HANDLE) DW (4BG) (EXC B20) 2010-2011 01
015 15905914 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (GRAY) DW (4BF) (EXC B20) 2010-2011 01
015 15853637 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (EBONY) (W/WOOD HANDLE) DW (4AL) 2010-2011 01
015 25900031 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (GRAY) DW (B20, 4BF) 2010-2011 01
015 25899996 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (COCOA) (LEATHER INSERT/WOOD HANDLE) DW (B18, 4AC) 2010-2011 01
015 25900006 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (EBONY) DW (4AL) (EXC B20) 2010-2011 01
015 25900030 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (EBONY) DW (FFG, 1AH, 2A5, 4AL) 2010-2011 01
015 25900032 TRIM, FRT S/D (INCLS 4-10, 13, 14, 17-19, 21, 23) (CASHMERE) (SIMULATED LEATHER) DW (FFG, 1AE, 2A5, 4BG) 2010-2011 01
016 25746449 SWITCH, SI WDO (FRT) (EBONY) DW 2005-2011 01
017 PLATE, SI WDO SW MT (PART OF 15) 2010-2011
018 15933370 BEZEL, FRT SI WDO M/FUNC SW (PART OF 15) (LT EUCALYPTS) DW29 (4AL, 4BF, 4BG) 2010-2011 01
019 25903279 BEZEL, FRT S/D LKG ROD P/BUT (PART OF 5, 15) (9.765) D29 2005-2011 01
020 25746451 SWITCH, DR LK (EBONY) DW 2005-2011 01
021 21992959 HARNESS, FRT S/D WRG (PART OF 15) DW29 2005-2011 01
022 15291740 DEFLECTOR, FRT S/D WAT D29 2005-2011 01
023 19210364 MOLDING, FRT S/D TR UPR (PART OF 15) (EBONY) DW29 (DL7, IL3) 2005-2011 02
