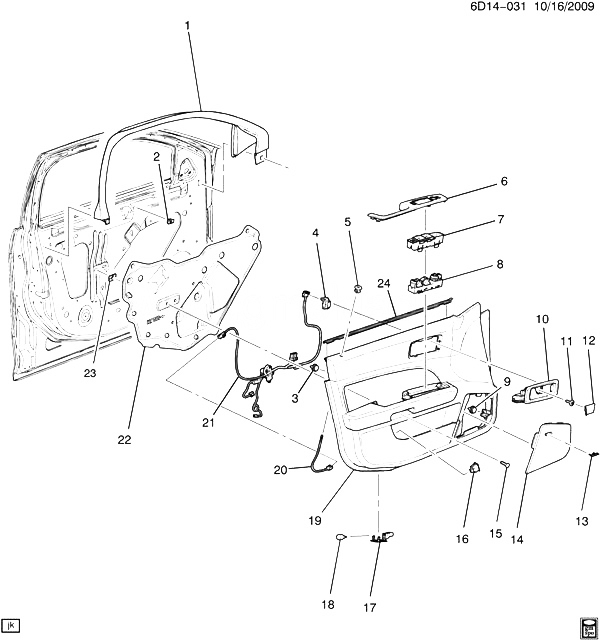

(6D14-031) 2010-2011 DW29 ОТДЕЛКА ДВЕРИ ВОДИТЕЛЯ CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15265340 WEATHERSTRIP, FRT S/D WDO DW 2006-2011 01
002 11570654 NUT, FRT S/D TR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) DW29 2010-2011 02
003 11562044 RETAINER, FRT S/D T/PNL (PART OF 19) (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) DW 2006-2011 06
004 25746453 SWITCH, DR LK (PART OF 19) (EBONY) DW 2005-2011 01
005 25903279 BEZEL, FRT S/D LKG ROD P/BUT (PART OF 19, 20) (9.765) D29 2005-2011 01
006 15933366 BEZEL, FRT SI WDO M/FUNC SW (PART OF 19) (LT EUCALYPTS) DW29 (DR2, FFE, 1BB, 2BZ, 4AC) 2010-2011 01
006 15933366 BEZEL, FRT SI WDO M/FUNC SW (PART OF 19) (LT EUCALYPTS) DW29 (DR2, 4AL, 4BF, 4BG) 2011-2011 01
006 15933368 BEZEL, FRT SI WDO M/FUNC SW (PART OF 19) (LT EUCALYPTS) DW29 (DL7, 4AL, 4BG, 4BF) 2011-2011 01
007 HOUSING, FRT S/D ACSRY SW (PART OF 19) 2010-2011
008 25746447 SWITCH, SI WDO (MAS) (PART OF 19) (EBONY) (LOCK/UNLOCK, TRUNK REL, MIRROR) DW (DL7) 2005-2011 01
008 25746448 SWITCH, SI WDO (MAS) (PART OF 19) (EBONY) (W/SW (S) 1-MIRROR, 1-WDO LOCK, 4-WDO) DW (DR2, 4AC, 4AL, 4BF, 4BG) 2010-2011 01
009 11562043 RETAINER, FRT S/D T/PNL (PART OF 19) (W/O SEAL) (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950) DW (DL7, FFF, 2A5) 2010-2011 10
010 HANDLE, FRT S/D I/S (PART OF 19) (4AC) 2010-2011
010 10370352 HANDLE, FRT S/D I/S (PART OF 19) (CASHMERE) DW (DL7, DR2, FFG, 1AE, 4BG) 2010-2011 01
010 10370353 HANDLE, FRT S/D I/S (PART OF 19) (EBONY) (REQUIRES QTY 2 11501793 NUT) DW (4AL, 4BF) 2010-2011 01
011 11508231 SCREW, RD CROWNED WA HD, SELF TAP, M4.2X1.41X16, POR (FRT S/D TR) 2005-2011 02
012 10373149 COVER, FRT S/D I/S HDL BZL FIN (EBONY) DW29 (4AL, 4BF) 2010-2011 01
012 10373151 COVER, FRT S/D I/S HDL BZL FIN (CASHMERE) DW29 (4BG) 2010-2011 01
012 15774289 COVER, FRT S/D I/S HDL BZL FIN (COCOA) DW29 (4AC) 2010-2011 01
013 10291759 EMBLEM, RDO FRT S/D SPKR GRL (PART OF 14, 19) D29 2005-2011 02
014 GRILLE, RDO FRT S/D LWR SPKR (PART OF 19) 2008-2011
015 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (FRT S/D TR) 2005-2011 01
016 25769208 SWITCH, R/CMPT LID REL (PART OF 19) (EBONY) (LABELED 25769208) (ACDelco #D1499E) DW (DR2, DL7, 4AL) 2011-2011 01
016 25769209 SWITCH, R/CMPT LID REL (PART OF 19) (CASHMERE) (ACDelco #D1400F) DW (4AC, 4BG) 2011-2011 01
016 25733723 SWITCH, R/CMPT LID REL (PART OF 19) (GRAY) (ACDelco #D1498E) DW (DL7, DR2, 4BF) 2011-2011 01
017 10359030 LAMP, CTSY (PART OF 19) (INCLS 18) D 2005-2011 04
018 19115808 BULB, FRT S/D C/LP (PART OF 17, 19) (8.991) (ACDelco #19115808) D 2005-2011 02
019 15853635 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (COCOA) DW (B18, DL7, 393) 2007-2011 01
019 15933392 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (GRAY) DW (B20, DL7, FFF, 4BF) 2010-2011 01
019 15933393 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (CASHMERE) DW (B20, DL7, FFF, 4BG) 2010-2011 01
019 25900024 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (CASHMERE) DW (DR2, FFG, 1AE, 2A5, 4BG) 2010-2011 01
019 15933391 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (EBONY) (TUSCANY LEATHER) DW (DL7, FFF, 1AH, 2A5, 4AL) 2011-2011 01
019 20755598 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (EBONY) DW (B18, DR2, 4AL) 2010-2011 01
019 25900022 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (EBONY) DW (B20, FFG, 1AH, 2A5, 4AL) 2010-2011 01
019 25899988 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (COCOA) DW (B18, DR2, 4AC) 2010-2011 01
019 15933380 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (EBONY) (SIMULATED LEATHER) DW (B20, DL7, 4AL) 2010-2011 01
019 25900023 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (GRAY) DW (DR2, FFG, 1BD, 2A5, 4BF) 2010-2011 01
019 15853632 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (EBONY) DW (B18, DL7, 4AL) 2010-2011 01
019 15933379 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (GRAY) DW (B20, DL7, 4BF) 2010-2011 01
019 15933381 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (CASHMERE) DW (B20, DL7, 4BG) 2010-2011 01
019 25899998 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (EBONY) DW (DR2, FFG, 1AH, 4AL) (EXC 2A5) 2010-2011 01
019 25899999 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (GRAY) DW (DR2, FFG, 1BD, 4BF) (EXC 2A5) 2010-2011 01
019 25900000 TRIM, FRT S/D (INCLS 3-10, 13, 14, 16-18, 20, 21, 24) (CASHMERE) DW (DR2, FFG, 1AE, 4BG) (EXC 2A5) 2010-2011 01
020 25799901 INDICATOR, DR LK STATUS (PART OF 19) (INCLS 5) (EBONY) D29 2005-2011 02
021 21992958 HARNESS, FRT S/D WRG (PART OF 19) DW29 2005-2011 01
022 15291741 DEFLECTOR, FRT S/D WAT D29 2005-2011 01
023 20310739 NUT, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D29 2005-2011 04
024 19210364 MOLDING, FRT S/D TR UPR (PART OF 19) (EBONY) DW29 (DL7, IL3) 2005-2011 02
