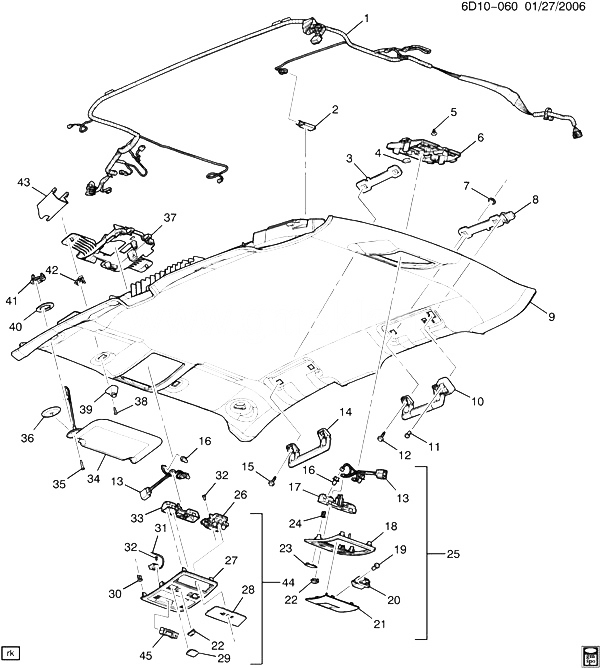

(6D10-060) 2007-2011 D29 ПОТОЛОЧНАЯ КОНСОЛЬ (SUNROOF DELETE CFN) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, W/S HDR WRG 2007-2011
002 25888495 ANTENNA, IGN LK KEY XMTR D29 2006-2011 01
003 89023248 RETAINER, ASST HDL (PUSH ON) (FRT) D29 2006-2011 02
004 SUPPORT, RF PNL (PART OF 6) 2007-2011
005 10193261 RETAINER, RF CNSL (PART OF 6) (15.100) D29 2009-2011 01
006 19169299 RETAINER, RF CNSL (PUSH IN) (INCLS 4, 5) (REAR OVERHEAD CONSOLE) D29 2006-2011 01
007 25640395 NUT, ASST HDL BRKT (M6) (WELD NUT) (UNTHREADED) (9.647) D29 2006-2011 02
008 89023249 RETAINER, ASST HDL (PUSH ON) (RR) D29 (CFN) 2007-2011 02
009 19211027 PANEL, HDLNG TR (GRAY) DW29 (CFN, UE1, UG1, YQ2, 4AL, 4BF) (EXC TQ5, UA2, W21) 2010-2011 01
009 19211028 PANEL, HDLNG TR (CASHMERE) DW29 (CFN, UE1, UG1, YQ2, 4AC, 4BG) (EXC TQ5, UA2, W21) 2010-2011 01
009 19211030 PANEL, HDLNG TR (GRAY) DW29 (CFN, TQ5, UE1, UG1, YQ4, 4AL, 4BF) (EXC UA2, UFL, W21) 2010-2011 01
009 19211031 PANEL, HDLNG TR (CASHMERE) DW29 (CFN, TQ5, UE1, UG1, YQ4, 4AC, 4BG) (EXC UA2, UFL, W21) 2010-2011 01
009 19211033 PANEL, HDLNG TR (GRAY) DW29 (CFN, UE1, UG1, YQ4, 4AL, 4BF) (EXC TQ5, UA2, UFL, W21) 2010-2011 01
009 19211034 PANEL, HDLNG TR (CASHMERE) DW29 (CFN, UE1, UG1, YQ4, 4AC, 4BG) (EXC TQ5, UA2, UFL, W21) 2010-2011 01
009 19211036 PANEL, HDLNG TR (GRAY) DW29 (CFN, TQ5, UE1, UFL, UG1, YQ4, 4AL, 4BF) (EXC W21) 2010-2011 01
009 19211037 PANEL, HDLNG TR (CASHMERE) DW29 (CFN, TQ5, UE1, UFL, UG1, YQ4, 4AC, 4BG) (EXC W21) 2010-2011 01
009 19211039 PANEL, HDLNG TR (GRAY) DW29 (CFN, T2J, YQ6, 4AL, 4BF) (EXC TQ5, UE1, UFL, UG1, W21) 2010-2011 01
009 19211040 PANEL, HDLNG TR (CASHMERE) DW29 (CFN, T2J, YQ6, 4AC, 4BG) (EXC TQ5, UE1, UFL, UG1, W21) 2010-2011 01
009 19211057 PANEL, HDLNG TR (GRAY) DW29 (CFN, T2J, YQ2, 4AL, 4BF) (EXC TQ5, UA2, UE1, UFL, UG1, W21) 2010-2011 01
009 19211058 PANEL, HDLNG TR (CASHMERE) DW29 (CFN, T2J, YQ2, 4AC, 4BG) (EXC TQ5, UA2, UE1, UFL, UG1, W21) 2010-2011 01
009 19256558 PANEL, HDLNG TR (GRAY) DW29 (CFN, UE1, YQ1, 4AL, 4BF) (EXC TQ5, T2J, UG1, W21) 2010-2011 01
009 19256559 PANEL, HDLNG TR (CASHMERE) DW29 (CFN, UE1, YQ1, 4BG) (EXC TQ5, T2J, UG1, W21) 2010-2011 01
010 HANDLE, ASST 2007-2011
011 11609460 SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (COAT HOOK) 2006-2011 01
012 11561786 BOLT, ASST HDL BRKT (M6X35) D29 2007-2011 04
013 SWITCH, ACSRY 2007-2011
014 15924315 HANDLE, R/RL FRT ASST (INCLS 15) (CASHMERE) D29 (4AC, 4AL, 4BG) 2010-2011 02
014 15924314 HANDLE, R/RL FRT ASST (INCLS 15) (GRAY) D29 (4AL, 4BF) 2011-2011 02
015 11610115 BOLT, HEX W/CON WASHER, M6X1X33, 23.37 THD, 17 OD, 8.8, GMW3200, M-PT (PART OF 14) 2006-2011 04
016 09442441 BULB, RDG LP (PART OF 25) (8.991) (ACDelco #9442441) D29 2006-2011 01
017 HOUSING, RDG LP (PART OF 25) 2007-2011
018 89023277 PLATE, RF CNSL ACSRY SW TR (PART OF 25) (GRAY) (RR OH CNSL W/RPA) DW (YQ1, 4AL, 4BF) 2010-2011 01
018 89023278 PLATE, RF CNSL ACSRY SW TR (PART OF 25) (CASHMERE) DW (YQ1, 4BG) 2010-2011 01
018 19210994 PLATE, RF CNSL ACSRY SW TR (PART OF 25) (GRAY) DW (YQ2, YQ4, YQ6, 4AL, 4BF) 2010-2011 01
018 19210995 PLATE, RF CNSL ACSRY SW TR (PART OF 25) (CASHMERE) DW (YQ2, YQ4, YQ6, 4AC, 4BG) 2010-2011 01
019 11609460 SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (PART OF 25) 2006-2011 02
020 15766504 TELLTALE, INFO CTR (PART OF 25) (ACDelco #15766504) D29 2006-2011 01
021 89023624 PLATE, RR RF CLOSEOUT (PART OF 25) (GRAY) (RPA SNAP IN PLATE) D29 (4AL, 4BF) 2010-2011 01
021 89023625 PLATE, RR RF CLOSEOUT (PART OF 25) (CASHMERE) (RPA SNAP IN PLATE) D29 (4AC, 4BG) 2010-2011 01
022 PUSHBUTTON, RDG LP SW (PART OF 44) 2007-2011
023 89023626 LENS, RDG LP (REAR CNSL) (PART OF 25) DW29 2010-2011 01
023 89024697 LENS, RDG LP (REAR CNSL) (PART OF 25) DW29 2010-2011 01
024 RETAINER, RF CNSL (PART OF 25) 2007-2011
025 89023621 CONSOLE, RF (INCLS 16-21, 23, 24) (GRAY) (RR BEZEL, MAIN HOUSING) D29 (4AL, 4BF) 2010-2011 01
025 89023622 CONSOLE, RF (INCLS 16-21, 23, 24) (CASHMERE) (RR BEZEL, MAIN HOUSING) D29 (4AC, 4BG) 2010-2011 01
026 25872956 TRANSMITTER, GARAGE DR OPENER (GRAY) (LABELED 25872956) DW29 (CFN, 4AL, 4BF) 2011-2011 01
026 25872957 TRANSMITTER, GARAGE DR OPENER (CASHMERE) (LABELED 25872957) DW29 (CFN, 4AC, 4BG) 2011-2011 01
026 19119214 TRANSMITTER, GARAGE DR OPENER (CASHMERE) (LABELED 19119214 OR 22802175) DW29 (CFN, 4AC, 4BG) 2011-2011 01
026 19119215 TRANSMITTER, GARAGE DR OPENER (GRAY) (LABELED 19119215 OR 22802174) DW29 (CFN, 4AL, 4BF) 2011-2011 01
028 19122349 PLATE, RF FRT COMPT ANC (PART OF 27, 44) (GRAY) (FRT OH CNSL FRT PLT) (W/AOS) (USED ON NON-SNRF VEHS) D29 (CFN, 4AL, 4BF) 2010-2011 01
028 19122401 PLATE, RF FRT COMPT ANC (PART OF 27, 44) (CASHMERE) (FRT OH CNSL FRT PLT) (W/AOS) (USED ON NON-SNRF VEHS) D29 (4AC, 4BG) 2010-2011 01
029 89023630 LENS, RDG LP (FRT CNSL) (PART OF 44) DW29 2010-2011 01
029 89024696 LENS, RDG LP (FRT CNSL) (PART OF 44) DW29 2010-2011 01
030 CLIP (PART OF 27, 44) 2007-2011
031 15246939 MICROPHONE, RDO VOL COMP INTR NOISE (RDO VOL COMP) DW29 (TQ5) 2010-2011 01
032 BOLT, RF CNSL (PART OF 44) 2007-2011
033 HOUSING, RDG LP (PART OF 44) 2007-2011
034 25843580 SUNSHADE, (CASHMERE) DW29 (4AC, 4AL) 2010-2011 01
034 25843581 SUNSHADE, (CASHMERE) DW29 (4AC, 4AL) 2010-2011 01
034 25843586 SUNSHADE, (CASHMERE) D29 (4AC, 4BG) 2010-2011 01
034 25843587 SUNSHADE, (CASHMERE) D29 (4AC, 4BG) 2010-2011 01
034 25843584 SUNSHADE, (GRAY) D29 (4AL, 4BF) 2011-2011 01
034 25843585 SUNSHADE, (GRAY) D29 (4AL, 4BF) 2011-2011 01
035 11516638 SCREW, TAP RND SM WASH HD TY, M4.2X1.4X25, 19.2THD, 8.5 OD (HIGH MT STOP CARGO LP OPG CVR) (8.906) 2006-2011 06
036 25856127 COVER, S/S RET BOLT (CASHMERE) (FOR VEHS BUILT 4/2/07 AFTER) D29 (4AC, 4AL, 4BG) 2010-2011 02
036 25856126 COVER, S/S RET BOLT (GRAY) (FOR VEHS BUILT 4/2/07 AFTER) D29 (4AL, 4BF) 2011-2011 02
037 19150134 RETAINER, RF CNSL (PUSH IN) (USED ON 2006 LATER OVERHEAD CNSL W/AOS) (FRT OVERHEAD CNSL) D29 2006-2011 01
037 19169299 RETAINER, RF CNSL (PUSH IN) (REAR OVERHEAD CONSOLE) D29 2006-2011 01
038 11515894 SCREW, RD WA HD, C/R, M4.2X1.41X20, 6010M, PEOR, 15.5 THD, AB PT, 8.4 OD (S/S RET) 2006-2011 02
039 25845683 SUPPORT, S/S (CASHMERE) D29 (4AC, 4BG) 2010-2011 02
039 25845682 SUPPORT, S/S (GRAY) D29 (4AL, 4BF) 2011-2011 02
040 89023299 SPACER, S/S SUPT D29 2006-2011 02
041 11561730 REINFORCEMENT, S/S SUPT (CLIP) (1 PER SIDE) D29 2006-2011 02
042 22612024 RETAINER, S/S RET (55MM LONG) (PUSH-IN) (15.394) D29 2009-2011 02
043 15887556 COVER, I/S RR VIEW MIR WRG HARN UPR (EBONY) DW29 2010-2011 01
044 20775017 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (GRAY) (INFOTAINMENT SYS 010) DW (CFN, UE1, UG1, YQ2, 4AL, 4BF) (EXC TQ5, T2J, UA2, W21) 2010-2011 01
044 20775018 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (CASHMERE) (INFOTAINMENT SYS 010) DW (CFN, UE1, UG1, YQ2, 4AC, 4BG) (EXC TQ5, T2J, UA2, W21) 2010-2011 01
044 20775020 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (GRAY) (INFOTAINMENT SYS 012) DW (CFN, UE1, UG1, YQ4, 4AL, 4BF) (EXC T2J, UA2, W21) 2010-2011 01
044 20775021 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (CASHMERE) (INFOTAINMENT SYS 012) DW (CFN, UE1, UG1, YQ4, 4AC, 4BG) (EXC T2J, UA2, W21) 2010-2011 01
044 20877263 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (GRAY) DW (CFN, T2J, YQ6, 4AL, 4BF) (EXC TQ5, UA2, UE1, UG1, W21) 2010-2011 01
044 89023596 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (GRAY) (FRT BEZEL, MAIN HOUSING) D29 (4AL, 4BF) 2010-2011 01
044 89023597 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (CASHMERE) (FRT BEZEL, MAIN HOUSING) DW29 (4AC, 4AL, 4BG) 2010-2011 01
044 20775014 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (GRAY) DW29 (CFN, UE1, YQ1, 4AL, 4BF) (EXC TQ5, T2J, UG1, W21) 2011-2011 01
044 20775015 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (CASHMERE) DW29 (CFN, UE1, YQ1, 4BG) (EXC TQ5, T2J, UG1, W21) 2011-2011 01
044 20775023 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (GRAY) (INFOTAINMENT SYS 010) DW (CFN, T2J, UE1, UG1, YQ2, 4AL, 4BF) (EXC TQ5, UA2, W21) (EXPORT) 2010-2011 01
044 20775024 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (CASHMERE) (INFOTAINMENT SYS 010) DW (CFN, T2J, UE1, UG1, YQ2, 4AC, 4BG) (EXC TQ5, UA2, W21) (EXPORT) 2010-2011 01
044 20775026 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (GRAY) (INFOTAINMENT SYS 012) DW (CFN, T2J, UE1, UG1, YQ4, 4AL, 4BF) (EXC UA2, W21) (EXPORT) 2010-2011 01
044 20775027 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (CASHMERE) (INFOTAINMENT SYS 012) DW (CFN, T2J, UE1, UG1, YQ4, 4AC, 4BG) (EXC UA2, W21) (EXPORT) 2010-2011 01
044 20775042 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (GRAY) DW (CFN, T2J, UE1, YQ1, 4AL, 4BF) (EXC TQ5, UG1, W21) (EXPORT) 2010-2011 01
044 20775043 CONSOLE, RF (INCLS 22, 27-30, 32, 33) (CASHMERE) DW (CFN, T2J, UE1, YQ1, 4AC, 4BG) (EXC TQ5, UG1, W21) (EXPORT) 2010-2011 01
045 25828898 DISPLAY, I/P AIRBAG ARMING STATUS (W/WORDS ON AND OFF FOR AIRBAG) (16.712) DW (EXC T2J) 2010-2011 01
045 25828899 DISPLAY, I/P AIRBAG ARMING STATUS (W/AIRBAG SYMBOLS FOR ON AND OFF) (16.712) DW (T2J) 2009-2011 01
