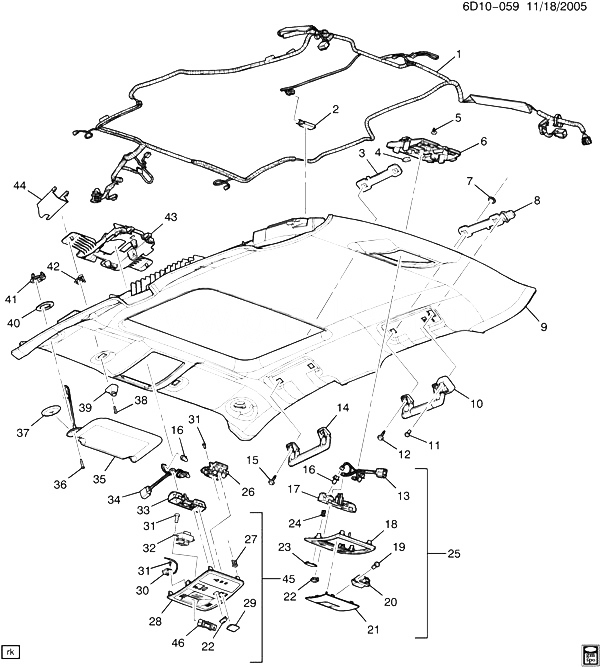

(6D10-059) 2006-2011 D29 ПОТОЛОЧНАЯ КОНСОЛЬ (SUNROOF CF5) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, W/S HDR WRG 2006-2011
004 SUPPORT, RF PNL (PART OF 6) 2006-2011
007 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (ASST HDL) 2006-2011 08
009 19256006 PANEL, HDLNG TR (GRAY) DW29 (CF5, UE1, UG1, YQ2, 4AL, 4BF) (EXC TQ5, W21) 2010-2011 01
009 19256007 PANEL, HDLNG TR (TITANIUM) DW29 (CF5, UE1, UG1, YQ2, 4BG) (EXC TQ5, W21) 2010-2011 01
009 19256009 PANEL, HDLNG TR (GRAY) DW29 (CF5, T2J, YQ2, 4AL, 4BF) (EXC TQ5, UE1, UFL, W21) 2010-2011 01
009 19256010 PANEL, HDLNG TR (CASHMERE) DW29 (CF5, T2J, YQ2, 4AL, 4BG) (EXC TQ5, UE1, UFL, W21) 2010-2011 01
009 19256012 PANEL, HDLNG TR (CASHMERE) DW29 (CF5, T2J, UA2, W21, YQ2, 4AC, 4AL) (EXC TQ5, UE1, UFL, UG1) 2010-2011 01
009 19256017 PANEL, HDLNG TR (GRAY) DW29 (CF5, T2J, YQ6, 4AL, 4BF) (EXC TQ5, UE1, UFL, UG1, W21) 2010-2011 01
009 19256018 PANEL, HDLNG TR (CASHMERE) DW29 (CF5, T2J, YQ6, 4BG) (EXC TQ5, UE1, UFL, UG1, W21) 2010-2011 01
009 19256110 PANEL, HDLNG TR (CASHMERE) DW29 (CF5, TQ5, UE1, UG1, W21, YQ4, 4AC, 4AL) (EXC UFL) 2010-2011 01
009 19256112 PANEL, HDLNG TR (CASHMERE) DW29 (CF5, T2J, W21, YQ6, 4AC, 4AL, 4AC, 4AL) (EXC TQ5, UE1, UFL, UG1) 2010-2011 01
009 19256438 PANEL, HDLNG TR (CASHMERE) DW29 (CF5, TQ5, UE1, UFL, UG1, W21, YQ4, 4AC, 4AL) 2010-2011 01
009 19256003 PANEL, HDLNG TR (GRAY) DW29 (CF5, TQ5, UE1, UG1, YQ4, 4AL, 4BF) (EXC T2J, UFL, W21) 2011-2011 01
009 19256003 PANEL, HDLNG TR (GRAY) DW29 (CF5, TQ5, T2J, UE1, UG1, YQ4, 4AL) (EXC UFL, W21) 2011-2011 01
009 19256003 PANEL, HDLNG TR (GRAY) DW29 (CF5, TQ5, T2J, UE1, UG1, YQ4, 4BF) (EXC UFL) 2011-2011 01
009 19256004 PANEL, HDLNG TR (CASHMERE) DW29 (CF5, TQ5, UE1, UG1, YQ4, 4BG) (EXC UFL, W21) 2011-2011 01
009 19256014 PANEL, HDLNG TR (GRAY) DW29 (CF5, TQ5, UE1, UFL, UG1, YQ4, 4AL, 4BF) (EXC W21) 2011-2011 01
009 19256015 PANEL, HDLNG TR (CASHMERE) DW29 (CF5, TQ5, UE1, UFL, UG1, YQ4, 4AC, 4BG) (EXC T2J, W21) 2011-2011 01
010 15924318 HANDLE, R/RL RR ASST (CASHMERE) (REAR) D29 (4AC, 4AL, 4BG) 2010-2011 01
010 15924321 HANDLE, R/RL RR ASST (CASHMERE) D29 (4AC, 4AL, 4BG) 2010-2011 01
010 15924317 HANDLE, R/RL RR ASST (GRAY) D29 (4AL, 4BF) 2011-2011 01
010 15924320 HANDLE, R/RL RR ASST (GRAY) D29 (4AL, 4BF) 2011-2011 01
011 11609460 SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (COAT HOOK) 2006-2011 01
012 11610115 BOLT, HEX W/CON WASHER, M6X1X33, 23.37 THD, 17 OD, 8.8, GMW3200, M-PT (ASST HDL) 2006-2011 04
013 SWITCH, ACSRY 2006-2011
014 15924315 HANDLE, R/RL FRT ASST (INCLS 15) (CASHMERE) D29 (4AC, 4AL, 4BG) 2010-2011 02
014 15924314 HANDLE, R/RL FRT ASST (INCLS 15) (GRAY) D29 (4AL, 4BF) 2011-2011 02
015 11610115 BOLT, HEX W/CON WASHER, M6X1X33, 23.37 THD, 17 OD, 8.8, GMW3200, M-PT (PART OF 14) 2006-2011 04
016 09442441 BULB, RDG LP (PART OF 25) (8.991) (ACDelco #9442441) D29 2006-2011 01
017 HOUSING, RDG LP (PART OF 25) 2006-2011
018 89023277 PLATE, RF CNSL ACSRY SW TR (PART OF 25) (GRAY) (RR OH CNSL W/RPA) DW (YQ1, 4AL, 4BF) 2010-2011 01
018 89023278 PLATE, RF CNSL ACSRY SW TR (PART OF 25) (CASHMERE) DW (YQ1, 4BG) 2010-2011 01
018 19210994 PLATE, RF CNSL ACSRY SW TR (PART OF 25) (GRAY) DW (YQ2, YQ4, YQ6, 4AL, 4BF) 2010-2011 01
018 19210995 PLATE, RF CNSL ACSRY SW TR (PART OF 25) (CASHMERE) DW (YQ2, YQ4, YQ6, 4AC, 4BG) 2010-2011 01
019 SCREW, RND WA, M4.2X1.41X10, 4.2 THD, 11 OD, GM6010M, GMW4205, C/R, TAP (PART OF 25) 2006-2011 AR
020 15766504 TELLTALE, INFO CTR (PART OF 25) (ACDelco #15766504) D29 2006-2011 01
021 89023624 PLATE, RR RF CLOSEOUT (PART OF 25) (GRAY) (RPA SNAP IN PLATE) D29 (4AL, 4BF) 2010-2011 01
021 89023625 PLATE, RR RF CLOSEOUT (PART OF 25) (CASHMERE) (RPA SNAP IN PLATE) D29 (4AC, 4BG) 2010-2011 01
022 PUSHBUTTON, RDG LP SW (PART OF 45) 2006-2011
024 RETAINER, RF CNSL (PART OF 25) 2006-2011
026 25872956 TRANSMITTER, GARAGE DR OPENER (GRAY) (LABELED 25872956) DW29 (CFN, 4AL, 4BF) 2011-2011 01
026 25872957 TRANSMITTER, GARAGE DR OPENER (CASHMERE) (LABELED 25872957) DW29 (CFN, 4AC, 4BG) 2011-2011 01
026 19119214 TRANSMITTER, GARAGE DR OPENER (CASHMERE) (LABELED 19119214 OR 22802175) DW29 (CFN, 4AC, 4BG) 2011-2011 01
026 19119215 TRANSMITTER, GARAGE DR OPENER (GRAY) (LABELED 19119215 OR 22802174) DW29 (CFN, 4AL, 4BF) 2011-2011 01
027 RETAINER, RF CNSL (PART OF 45) 2006-2011
030 15246939 MICROPHONE, RDO VOL COMP INTR NOISE (RDO VOL COMP) DW29 (TQ5) 2010-2011 01
030 15240415 MICROPHONE, RDO VOL COMP INTR NOISE DW29 (CF5) (EXC W21, TQ5) 2011-2011 01
031 BOLT, RF CNSL (PART OF 45) 2006-2011
032 25757276 SWITCH, SUN RF (CASHMERE) DW29 (4AC, 4AL, 4BG) 2010-2011 01
032 25745189 SWITCH, SUN RF (GRAY) DW29 2011-2011 01
032 25789091 SWITCH, SUN RF D 2011-2011 01
033 HOUSING, RDG LP (PART OF 45) 2006-2011
034 SWITCH, RDG LP (PART OF 45) 2006-2011
035 25843580 SUNSHADE, (CASHMERE) DW29 (4AC, 4AL) 2010-2011 01
035 25843581 SUNSHADE, (CASHMERE) DW29 (4AC, 4AL) 2010-2011 01
035 25843586 SUNSHADE, (CASHMERE) D29 (4AC, 4BG) 2010-2011 01
035 25843587 SUNSHADE, (CASHMERE) D29 (4AC, 4BG) 2010-2011 01
035 25843584 SUNSHADE, (GRAY) D29 (4AL, 4BF) 2011-2011 01
035 25843585 SUNSHADE, (GRAY) D29 (4AL, 4BF) 2011-2011 01
036 11516638 SCREW, TAP RND SM WASH HD TY, M4.2X1.4X25, 19.2THD, 8.5 OD (HIGH MT STOP CARGO LP OPG CVR) (8.906) 2006-2011 06
037 25856127 COVER, S/S RET BOLT (CASHMERE) (FOR VEHS BUILT 4/2/07 AFTER) D29 (4AC, 4AL, 4BG) 2010-2011 02
037 25856126 COVER, S/S RET BOLT (GRAY) (FOR VEHS BUILT 4/2/07 AFTER) D29 (4AL, 4BF) 2011-2011 02
038 11515894 SCREW, RD WA HD, C/R, M4.2X1.41X20, 6010M, PEOR, 15.5 THD, AB PT, 8.4 OD (S/S RET) 2006-2011 02
039 25845683 SUPPORT, S/S (CASHMERE) D29 (4AC, 4BG) 2010-2011 02
039 25845682 SUPPORT, S/S (GRAY) D29 (4AL, 4BF) 2011-2011 02
040 89023299 SPACER, S/S SUPT D29 2006-2011 02
041 11561730 REINFORCEMENT, S/S SUPT (CLIP) (1 PER SIDE) D29 2006-2011 02
042 22612024 RETAINER, S/S RET (55MM LONG) (PUSH-IN) (15.394) D29 2009-2011 02
043 19122401 PLATE, RF FRT COMPT ANC (CASHMERE) (FRT OH CNSL FRT PLT) (W/AOS) (USED ON NON-SNRF VEHS) D29 (4AC, 4BG) 2010-2011 01
043 19208352 PLATE, RF FRT COMPT ANC (GRAY) (FRT RECESSED SNRF PLT W/AOS, RECESSED SNRF SW) D29 (CF5, 4AL, 4BF) (EXC TQ5) 2010-2011 01
043 19208353 PLATE, RF FRT COMPT ANC (CASHMERE) (FRT RECSD SNRF PLT W/AOS, W/RECSD SNRF SW) D29 (CF5, 4AC, 4AL, 4BG) 2010-2011 01
044 15887556 COVER, I/S RR VIEW MIR WRG HARN UPR (EBONY) DW29 2010-2011 01
045 20775017 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) (INFOTAINMENT SYS 010) DW (CFN, UE1, UG1, YQ2, 4AL, 4BF) (EXC TQ5, T2J, UA2, W21) 2011-2011 01
045 20775018 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) (INFOTAINMENT SYS 010) DW (CFN, UE1, UG1, YQ2, 4AC, 4BG) (EXC TQ5, T2J, UA2, W21) 2011-2011 01
045 20775020 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) (INFOTAINMENT SYS 012) DW (CFN, UE1, UG1, YQ4, 4AL, 4BF) (EXC T2J, UA2, W21) 2011-2011 01
045 20775021 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) (INFOTAINMENT SYS 012) DW (CFN, UE1, UG1, YQ4, 4AC, 4BG) (EXC T2J, UA2, W21) 2011-2011 01
045 20775032 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) (W/PLT SW ASM) D29 (CF5, UE1, UG1, 4AL, 4BF) (EXC T2J) 2011-2011 01
045 20775033 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) DW (CF5, TQ5, UE1, UG1, YQ4, 4AC, 4AL, 4BG) (EXC T2J, UA2) 2011-2011 01
045 20877260 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) DW (CF5, UE1, UG1, YQ4, 4AL) (EXC TQ5, T2J, UA2, UFL, W21) 2011-2011 01
045 20877261 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) DW (CF5, UE1, UG1, 4AL, 4BF, 4BG) (EXC TQ5, T2J, UA2, UFL, W21) 2011-2011 01
045 20877263 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) DW (CFN, T2J, YQ6, 4AL, 4BF) (EXC TQ5, UA2, UE1, UG1, W21) 2011-2011 01
045 20877264 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) DW (CF5, T2J, YQ6, 4AC, 4BG) (EXC TQ5, UA2, UE1, UG1, W21) 2011-2011 01
045 25912701 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) DW (CF5, T2J, YQ2, 4AC, 4BG) (EXC TQ5, UE1, UG1, W21) 2011-2011 01
045 89023596 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) (FRT BEZEL, MAIN HOUSING) D29 (4AL, 4BF) 2011-2011 01
045 89023597 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) (FRT BEZEL, MAIN HOUSING) DW29 (4AC, 4AL, 4BG) 2011-2011 01
045 20775014 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) DW29 (CFN, UE1, YQ1, 4AL, 4BF) (EXC TQ5, T2J, UG1, W21) 2011-2011 01
045 20775015 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) DW29 (CFN, UE1, YQ1, 4BG) (EXC TQ5, T2J, UG1, W21) 2011-2011 01
045 25912700 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) (W/O SWITCH ASM) DW (CF5, T2J, YQ2, 4AL, 4BF) (EXC TQ5, UE1, UG1, W21) 2011-2011 01
045 20775023 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) (INFOTAINMENT SYS 010) DW (CFN, T2J, UE1, UG1, YQ2, 4AL, 4BF) (EXC TQ5, UA2, W21) (EXPORT) 2011-2011 01
045 20775024 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) (INFOTAINMENT SYS 010) DW (CFN, T2J, UE1, UG1, YQ2, 4AC, 4BG) (EXC TQ5, UA2, W21) (EXPORT) 2011-2011 01
045 20775026 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) (INFOTAINMENT SYS 012) DW (CFN, T2J, UE1, UG1, YQ4, 4AL, 4BF) (EXC UA2, W21) (EXPORT) 2011-2011 01
045 20775027 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) (INFOTAINMENT SYS 012) DW (CFN, T2J, UE1, UG1, YQ4, 4AC, 4BG) (EXC UA2, W21) (EXPORT) 2011-2011 01
045 20775036 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) DW (CF5, T2J, UE1, UG1, YQ2, 4AL, 4BF) (EXC TQ5, UA2, W21) (EXPORT) 2011-2011 01
045 20775037 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) DW (CF5, T2J, UE1, UG1, YQ2, 4BG) (EXC TQ5, UA2, W21) (EXPORT) 2011-2011 01
045 20775039 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) D29 (CF5, T2J, UE1, UG1, YQ4, 4AL, 4BF) (EXC UA2, W21) (EXPORT) 2011-2011 01
045 20775040 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) D29 (CF5, T2J, UE1, UG1, YQ4, 4AC, 4AL, 4BG) (EXC UA2, W21) (EXPORT) 2011-2011 01
045 20775048 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) (S/R, EXP, UGDO) DW (CF5, T2J, UG1, YQ2, 4AL, 4BF) (EXC TQ5, UE1, UFL, W21) (EXPORT) 2011-2011 01
045 20775049 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) (S/R, EXP, UGDO) DW (CF5, T2J, UG1, YQ2, 4AC, 4BG) (EXC TQ5, UE1, UFL, W21) (EXPORT) 2011-2011 01
045 20877269 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) D29 (CF5, T2J, YQ6, 4AL, 4BF) (EXC TQ5, UA2, UE1, UG1, W21) (EXPORT) 2011-2011 01
045 20877270 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) D29 (CF5, T2J, YQ6, 4AC, 4AL, 4BG) (EXC TQ5, UA2, UE1, UG1) (EXPORT) 2011-2011 01
045 25950806 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) (W/O VNC MIC) (INCLS SWITCH ASM) D29 (CF5, T2J, YQ2, 4AL, 4BF) (EXC TQ5, UE1, UG1, W21) (EXPORT) 2011-2011 01
045 25950807 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) D29 (CF5, T2J, YQ2, 4AC, 4AL, 4BG) (EXC TQ5, UE1, UG1) (EXPORT) 2011-2011 01
045 20775042 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (GRAY) DW (CFN, T2J, UE1, YQ1, 4AL, 4BF) (EXC TQ5, UG1, W21) (EXPORT) 2011-2011 01
045 20775043 CONSOLE, RF (INCLS 22, 27-29, 31, 33, 34) (CASHMERE) DW (CFN, T2J, UE1, YQ1, 4AC, 4BG) (EXC TQ5, UG1, W21) (EXPORT) 2011-2011 01
046 25828898 DISPLAY, I/P AIRBAG ARMING STATUS (W/WORDS ON AND OFF FOR AIRBAG) (16.712) DW (EXC T2J) 2010-2011 01
046 25828899 DISPLAY, I/P AIRBAG ARMING STATUS (W/AIRBAG SYMBOLS FOR ON AND OFF) (16.712) DW (T2J) 2009-2011 01
