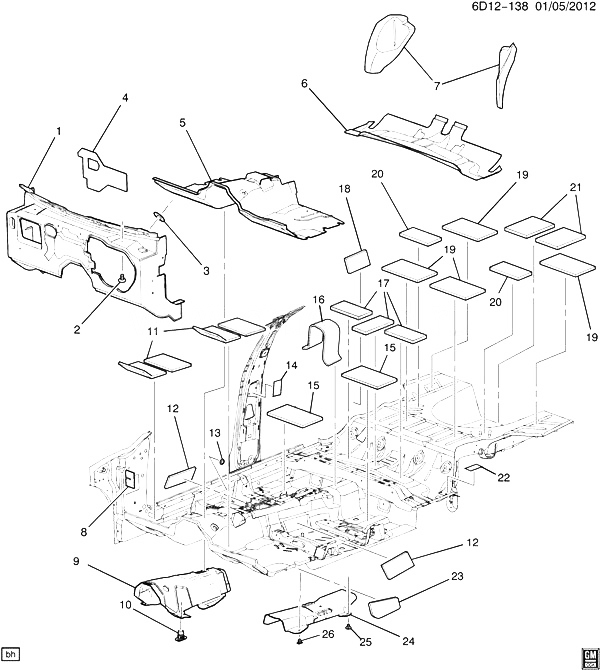

(6D12-138) 2009-2011 D29 ИЗОЛЯЦИЯ КУЗОВА CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20840956 BARRIER, DA PNL INTR SND DW29 2009-2011 01
002 20030401 RETAINER, DA PNL SND BARR (BLACK) D29 2009-2011 AR
003 10009923 NUT, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (DA PNL SND BARR) 2009-2011 02
004 DEADENER, DA PNL 2009-2011
005 15250712 BARRIER, F/FLR PNL F/FLR CNSL SND (RWD) D29 2009-2011 01
005 15263003 BARRIER, F/FLR PNL F/FLR CNSL SND (AWD) D29 2009-2011 01
006 25925125 INSULATOR, FLR PNL R/SEAT D29 2009-2011 01
007 25904719 BARRIER, RR W/H INR PNL SND D29 2009-2011 01
007 25904720 BARRIER, RR W/H INR PNL SND D29 2009-2011 01
008 25722024 BARRIER, DA PNL INTR SND (1 LH SI OF TUNNEL) (1 RH SI - PASS THRU DR) (TWO PIECE) DW 2010-2011 02
009 20987570 INSULATOR, EXH H/SHLD (INCLS 10) DW29 (MX0) 2011-2011 01
009 20987571 INSULATOR, EXH H/SHLD (INCLS 10) DW29 (MX7) 2009-2011 01
010 11570585 RETAINER, EXH MANIF PIPE HNGR INSL (PART OF 9) D 2009-2011 04
011 DEADENER, FLR PNL FRT 2009-2011
012 25757810 DEADENER, FLR PNL TUN FRT (390X150) (W/O HOLE) (RECTANGULAR IN SHAPE) D29 2009-2011 04
013 25652432 BARRIER, RKR INR PNL SND (35MM DIA) (FITS 25MM HOLE) (ROUND) DW29 2010-2011 02
014 11515174 INSULATOR, BODY SI INR PNL (4 1/4 X 7 1/2) (TRIM AS REQD) (OUTBOARD) DW29 2010-2011 01
015 25757810 DEADENER, FLR PNL RR (390X150) (W/O HOLE) (RECTANGULAR IN SHAPE) D29 2009-2011 01
016 25757810 DEADENER, FLR PNL RR (390X150) (W/O HOLE) (RECTANGULAR IN SHAPE) D29 2009-2011 01
017 25757810 DEADENER, FLR PNL R/SEAT (390X150) (W/O HOLE) (RECTANGULAR IN SHAPE) D29 2009-2011 03
018 10376174 BARRIER, RR W/H INR PNL UPR SND DW29 2010-2011 02
019 DEADENER, R/CMPT FLR PNL 2009-2011
020 25757810 DEADENER, R/CMPT FLR PNL (390X150) (W/O HOLE) (RECTANGULAR IN SHAPE) (12.980) D29 2009-2011 02
021 DEADENER, R/CMPT FLR PNL 2009-2011
022 11515174 SEALING STRIP, FLR PNL DRN HOLE CVR (4 1/4 X 7 1/2) (TRIM AS REQD) (OUTBOARD) (12.941) D29 2009-2011 02
023 25757810 DEADENER, FLR PNL TUN PNL OTR (390X150) (W/O HOLE) (RECTANGULAR IN SHAPE) D29 2009-2011 01
024 20971705 INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 25, 26) (FOR VEH BUILT ON AFTER 09/15/10) (1ST DES SEE 25964069) DW29 (MYB) (2ND DES) 2011-2011 01
024 25964069 INSULATOR, EXH H/SHLD (AT INTER FLR PNL) (INCLS 25, 26) (FOR VEH BUILT PRIOR TO 09/15/10) (2ND DES SEE 20971705) D29 (1ST DES) 2011-2011 01
025 24501057 RETAINER, EXH H/SHLD (PART OF 24) (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) DW29 (MYB) 2009-2011 02
026 11570586 RETAINER, EXH H/SHLD (PART OF 24) (PUSH IN 13 MM HOLE W/ 20 X 36 MM HEAD) DW29 (MYB) 2009-2011 02
