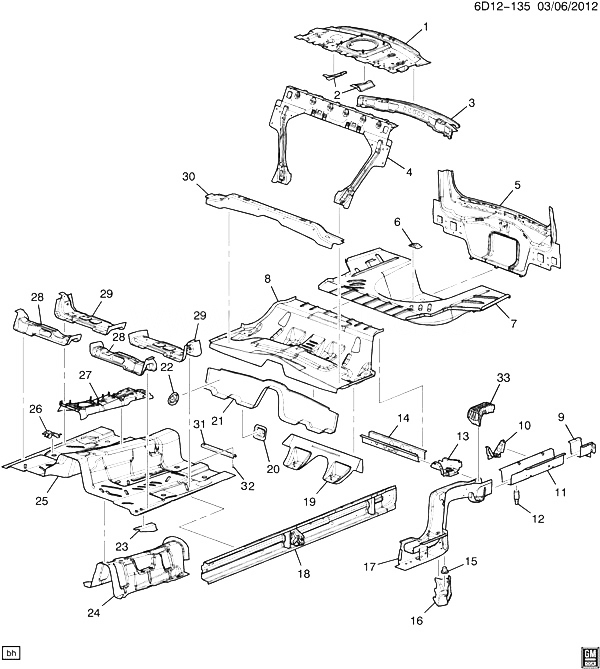

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25719291 |
PANEL, R/WDO (INCLS 2) |
D29 |
2007-2011 |
01 |
| 002 |
|
BRACE, R/WDO PNL (PART OF 1) |
|
2007-2011 |
|
| 003 |
25719307 |
PANEL, R/WDO DRN |
D29 |
2007-2011 |
01 |
| 004 |
|
SUPPORT, R/SEAT H/RST |
|
2007-2011 |
|
| 005 |
15872663 |
PANEL, R/END |
D29 |
2007-2011 |
01 |
| 006 |
25650571 |
BRACKET, SPA WHL STOW (55.1X84.5X126) (3 RECTANGULAR ATTACH BOLT HOLES) |
D |
2007-2011 |
01 |
| 007 |
88891833 |
PANEL KIT, R/CMPT FLR (12.980) |
D29 |
2007-2011 |
01 |
| 008 |
|
PANEL, R/CMPT |
|
2007-2011 |
|
| 009 |
25939952 |
EXTENSION, R/CMPT FLR PNL RL (PART OF 11) (FOR RH OR LH) |
D29 |
2007-2011 |
02 |
| 010 |
15217298 |
EXTENSION, R/FLR PNL RR |
D29 |
2007-2011 |
02 |
| 011 |
22745742 |
RAIL, R/CMPT FLR PNL (W/RR SUSP SUPT) (INCLS 9, 12) |
D29 |
2007-2011 |
01 |
| 011 |
22745743 |
RAIL, R/CMPT FLR PNL (W/RR SUSP SUPT) (INCLS 9, 12) |
D29 |
2007-2011 |
01 |
| 012 |
11519001 |
NUT, RR SUSP FRM (PART OF 11) (HEX, M16X2.0X37.9, OD 50, SAE1010, PLAIN.TEFLON) (8.899) |
D |
2007-2011 |
02 |
| 013 |
10369747 |
EXTENSION, FLR PNL #5 C/BAR |
D29 |
2007-2011 |
02 |
| 014 |
20884792 |
BAR, FLR PNL #5 |
D29 |
2007-2011 |
01 |
| 015 |
11519001 |
NUT, HEX M16X2.0X37.9, OD 50, SAE1010, PLAIN.TEFLON PER GM6076M (PART OF 17) (8.899) |
|
2007-2011 |
02 |
| 016 |
25911674 |
REINFORCEMENT, RR SUSP SUPT (PART OF 17) |
D |
2008-2011 |
01 |
| 016 |
25911675 |
REINFORCEMENT, RR SUSP SUPT (PART OF 17) |
D |
2008-2011 |
01 |
| 017 |
19206662 |
RAIL, R/CMPT FLR PNL RR (INCLS 15, 16) |
D29 |
2007-2011 |
01 |
| 017 |
19206663 |
RAIL, R/CMPT FLR PNL RR (INCLS 15, 16) |
DW29 |
2011-2011 |
01 |
| 018 |
25774227 |
PANEL, RKR INR |
D29 |
2007-2011 |
01 |
| 018 |
25774228 |
PANEL, RKR INR |
D29 |
2007-2011 |
01 |
| 019 |
|
PLATE, R/SEAT BELT ANC (BKL SI) |
|
2007-2011 |
|
| 020 |
25675853 |
BRACKET, F/TNK |
D |
2007-2011 |
02 |
| 021 |
|
BAR, FLR PNL #4 CR |
|
2007-2011 |
|
| 022 |
|
PLATE, CHILD ST RST SYS BELT BRKT ANC |
|
2007-2011 |
|
| 023 |
25689604 |
BRACKET, PARK BRK CBL (218 X 83 X 59) (ATTACHES TO F/FLR PANEL) |
D |
2007-2011 |
01 |
| 024 |
|
REINFORCEMENT, FLR PNL CTR |
|
2007-2011 |
|
| 025 |
|
PANEL, F/FLR |
|
2007-2011 |
|
| 026 |
|
BRACKET, VEH YAW SEN LATL ACCLRM |
|
2007-2011 |
|
| 027 |
|
REINFORCEMENT, FLR PNL CTR UPR |
|
2007-2011 |
|
| 028 |
|
BAR, FLR PNL #2 CR |
|
2007-2011 |
|
| 029 |
|
BAR, FLR PNL #3 CR |
|
2007-2011 |
|
| 030 |
|
BAR, FLR PNL #4 CR |
|
2007-2011 |
|
| 031 |
15952419 |
REINFORCEMENT, FLR PNL #4 C/BAR |
D29 |
2007-2011 |
01 |
| 032 |
11519387 |
BOLT, HWASH, M8X1.25X20, 14 THD, 24 OD, GMW25 (8.8)STEEL, GMW3359, M-POINT. (FLR PNL #4 C/BAR REINF) |
|
2007-2011 |
02 |
| 033 |
25859827 |
REINFORCEMENT KIT, R/CMPT FLR PNL RL INTER (INSTRUCTION #19120709) |
D29 |
2011-2011 |
01 |
| 033 |
25859828 |
REINFORCEMENT KIT, R/CMPT FLR PNL RL INTER |
D29 |
2011-2011 |
01 |
