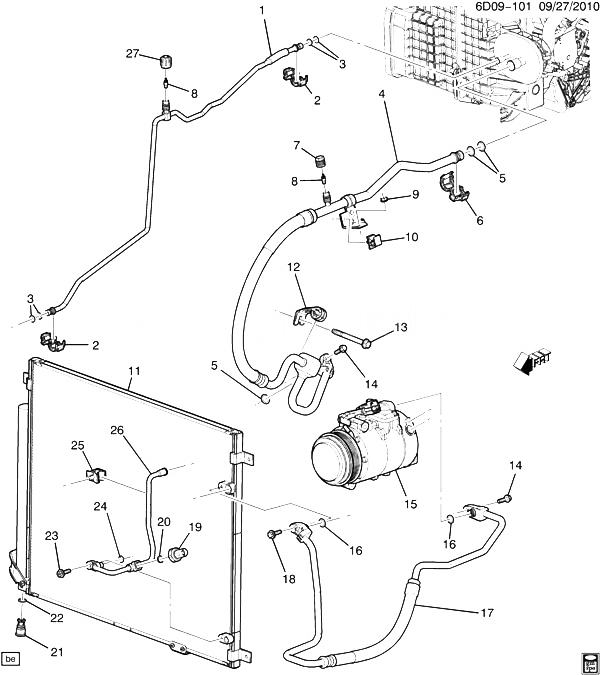

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25815299 |
TUBE, A/C CNDSR (INCLS 3, 8, 27) (ACDelco #15-33801) |
DW29 |
2006-2011 |
01 |
| 002 |
25728831 |
CLAMP, A/C CNDSR EVPR TUBE (L=35M W=31M H=32M) |
D |
2005-2011 |
02 |
| 003 |
25740418 |
SEAL, A/C EVPR TUBE (PART OF 1) (8MM) (ACDelco #15-31874) |
DW29 |
2008-2011 |
01 |
| 004 |
25815298 |
HOSE, A/C CMPR (INCLS 5, 7, 8, 10, 12) (ACDelco #15-33803) |
DW29 (LLT) |
2008-2011 |
01 |
| 005 |
25740419 |
SEAL, A/C CMPR HOSE (5/8IN) (PART OF 4) (ACDelco #15-31873) |
D |
2008-2011 |
03 |
| 006 |
25728832 |
CLAMP, A/C CMPR CNDSR HOSE (L=38M W=32M H=39M) |
D |
2005-2011 |
01 |
| 007 |
88957401 |
CAP, A/C REFRIG SERV VLV (PART OF 4) (NON-TETHERED) (ACDelco #15-32562) |
D29 |
2005-2011 |
01 |
| 008 |
88958095 |
VALVE, A/C REFRIG SERV (PART OF 1, 4) (ACDelco #15-50154) |
D |
2005-2011 |
01 |
| 009 |
11561645 |
NUT, HFH, M6X1X6.45, 13.5 OD, 10 STL, GMW3200 (A/C TUBE BRKT) |
|
2005-2011 |
01 |
| 010 |
88958096 |
CLIP, A/C CMPR CNDSR HOSE (PART OF 4) (BRACKET IS NOT INCLUDED) |
D29 |
2008-2011 |
01 |
| 011 |
88957420 |
CONDENSER, A/C (ACDelco #15-63038) |
DW29 (LLT) (EXC V03) |
2010-2011 |
01 |
| 011 |
89022521 |
CONDENSER, A/C (ACDelco #15-63058) |
DW29 (LLT, V03) |
2008-2011 |
01 |
| 012 |
|
CLIP, A/C CMPR CNDSR HOSE (PART OF 4) |
|
2011-2011 |
|
| 013 |
11588734 |
BOLT, HFH, M8X1.25X90, 21.6 THD, 18 O.D., 8.8, GMW3359 (A/C CMPR) |
|
2005-2011 |
02 |
| 014 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/C CMPR HOSE) |
|
2005-2011 |
02 |
| 015 |
89023452 |
COMPRESSOR, A/C (SEE GROUP 09.000 A/C COMPRESSOR ASM FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-21200) |
DW29 (LLT) |
2008-2011 |
01 |
| 016 |
25740416 |
SEAL, A/C CMPR CNDSR HOSE (1/2IN) (PART OF 17) (ACDelco #15-31872) |
D29 |
2009-2011 |
02 |
| 017 |
25837289 |
HOSE, A/C CMPR CNDSR (INCLS 16) (ACDelco #15-33842) |
DW29 (LLT) |
2008-2011 |
01 |
| 018 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (A/C CMPR CNDSR HOSE) |
|
2005-2011 |
01 |
| 019 |
88958089 |
SWITCH, A/C CMPR REFRIG PRESS (PART OF 26) (INCLS 20) (MATING CONN W/LEADS USE 88988301) (ACDelco #15-50153) |
D29 |
2005-2011 |
01 |
| 020 |
88958090 |
SEAL, A/C CMPR HIGH PRESS CUTOFF SW (O RING) (PART OF 19, 26) (ACDelco #15-32579) |
D29 |
2009-2011 |
01 |
| 021 |
89023442 |
PLUG, A/C RCVR DEHYDR (INCLS PLUG, O-RING DESSICANT BAG) (ACDelco #15-10636) |
DW29 |
2009-2011 |
01 |
| 022 |
89022474 |
SEAL, A/C RCVR DEHYDR CVR (O RING) (ACDelco #15-32578) |
DW29 |
2009-2011 |
01 |
| 023 |
19130331 |
BOLT, A/C CNDSR TUBE |
D |
2005-2011 |
01 |
| 024 |
25740418 |
SEAL, A/C EVPR TUBE (PART OF 26) (8MM) (ACDelco #15-31874) |
DW29 |
2008-2011 |
01 |
| 025 |
|
CLIP, A/C CNDSR TUBE |
|
2011-2011 |
|
| 026 |
15932848 |
TUBE, A/C CNDSR OTLT (INCLS 19, 20, 24) (ACDelco #15-33827) |
DW29 |
2008-2011 |
01 |
| 027 |
88957402 |
CAP, A/C REFRIG SERV VLV (LIQUID) (PART OF 1) (NON-TETHERED) (ACDelco #15-32563) |
D29 |
2005-2011 |
01 |
