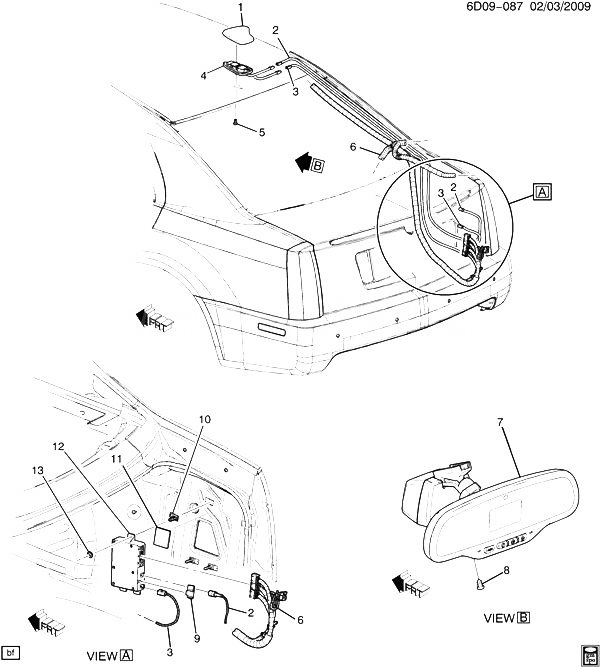

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25831349 |
ANTENNA, M/TEL DIGITAL (ACDelco #25831349) |
DW (GBO, UE1) |
2010-2011 |
01 |
| 001 |
25831349 |
ANTENNA, M/TEL DIGITAL (9.647) (ACDelco #25831349) |
DW (GBO, UE1) |
2010-2011 |
01 |
| 001 |
25831351 |
ANTENNA, M/TEL DIGITAL (ACDelco #25831351) |
DW (GAN, UE1) |
2010-2011 |
01 |
| 001 |
25831351 |
ANTENNA, M/TEL DIGITAL (9.647) (ACDelco #25831351) |
DW (GAN, UE1) |
2010-2011 |
01 |
| 001 |
25831352 |
ANTENNA, M/TEL DIGITAL (ACDelco #25831352) |
DW (GKP, UE1) |
2010-2011 |
01 |
| 001 |
25831352 |
ANTENNA, M/TEL DIGITAL (9.647) (ACDelco #25831352) |
DW (GKP, UE1) |
2010-2011 |
01 |
| 001 |
25831354 |
ANTENNA, M/TEL DIGITAL (ACDelco #25831354) |
DW (GLH, UE1) |
2010-2011 |
01 |
| 001 |
25831354 |
ANTENNA, M/TEL DIGITAL (9.647) (ACDelco #25831354) |
DW (GLH, UE1) |
2010-2011 |
01 |
| 001 |
25831358 |
ANTENNA, M/TEL DIGITAL (ACDelco #25831358) |
DW (GBE, UE1) |
2010-2011 |
01 |
| 001 |
25831358 |
ANTENNA, M/TEL DIGITAL (9.647) (ACDelco #25831358) |
DW (GBE, UE1) |
2010-2011 |
01 |
| 001 |
25831359 |
ANTENNA, M/TEL DIGITAL (ACDelco #25831359) |
DW (GBN, UE1) |
2010-2011 |
01 |
| 001 |
25831359 |
ANTENNA, M/TEL DIGITAL (9.647) (ACDelco #25831359) |
DW (GBN, UE1) |
2010-2011 |
01 |
| 001 |
25831349 |
ANTENNA, M/TEL DIGITAL (ACDelco #25831349) |
DW (GGU, UE1) |
2011-2011 |
01 |
| 001 |
25831349 |
ANTENNA, M/TEL DIGITAL (9.647) (ACDelco #25831349) |
DW (GGU, UE1) |
2011-2011 |
01 |
| 001 |
25831355 |
ANTENNA, M/TEL DIGITAL (PAINT TO MATCH) (ACDelco #25831355) |
DW29 (GBA, UE1) |
2010-2011 |
01 |
| 001 |
25831355 |
ANTENNA, M/TEL DIGITAL (PAINT TO MATCH) (ACDelco #25831355) |
DW29 (GGX, UE1) |
2010-2011 |
01 |
| 002 |
25749070 |
CABLE, NAVIGATION ANT COAX EXTN (PART OF 6) (2930MM) (PLUGS INTO ONSTAR CELLULAR CONNECTOR) |
D29 |
2009-2011 |
01 |
| 003 |
25752930 |
CABLE, NAVIGATION ANT COAX (VEHICLE RIGHT SIDE) (PART OF 6) (2715MM) (PLUGS INTO GPS PORT) |
D29 |
2009-2011 |
01 |
| 004 |
20815150 |
BASE, M/TEL VEH LOC ANT (INCLS 5) (ACDelco #20815150) |
DW (UE1) (EXC U2K) |
2010-2011 |
01 |
| 004 |
20815152 |
BASE, DIGITAL RDO M/TEL VEH LOC (INCLS 5) (LABELED 20815152) |
DW (UE1, U2K) |
2010-2011 |
01 |
| 005 |
|
BOLT, RDO ANT (PART OF 4) |
|
2009-2011 |
|
| 006 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) (INCLS 2, 3) |
|
2009-2011 |
|
| 007 |
|
MIRROR, I/S RR VIEW (SEE GROUP 10.000 WINDSHIELD TRIM AND HARDWARE FOR DETAILED ILLUSTRATED VIEW) (INCLS 8) |
|
2009-2011 |
|
| 008 |
19207911 |
BOLT, I/S RR VIEW MIR (PART OF 7) (BLACK) (M10X24X12.7) |
DW (DD8, UE1) (EXC TQ5) |
2009-2011 |
01 |
| 009 |
15938939 |
ANTENNA, WIRELESS COMN INTERFACE (BLUETOOTH) (ACDelco #15938939) |
DW (UE1, YQ1, YQ2) |
2010-2011 |
01 |
| 010 |
11517641 |
STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (COMMUNICATION INTERFACE MDL) |
|
2009-2011 |
03 |
| 011 |
11515174 |
INSULATOR, COMMUNICATION INTERFACE MDL (4 1/4 X 7 1/2) (TRIM AS REQD) (OUTBOARD) (12.941) |
DW |
2009-2011 |
03 |
| 012 |
20837491 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #20837491) |
DW (UE1, YQ4, YQ1) |
2010-2011 |
01 |
| 012 |
20837492 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #20837492) |
DW29 (UE1, YQ2) |
2011-2011 |
01 |
| 013 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (COMN INTERFACE MDL) |
|
2009-2011 |
03 |
