| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

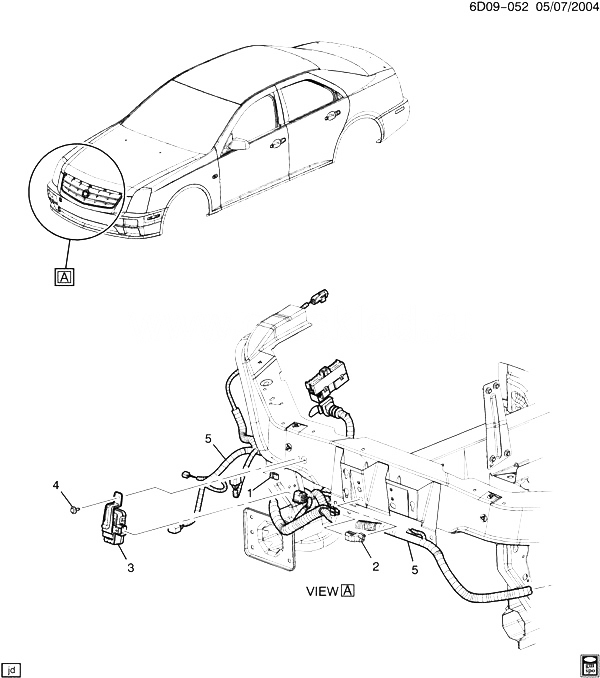

| 001 |
11518121 |
NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (O/S AIR QUALITY SEN) |
|
2005-2011 |
01 |
| 002 |
15826773 |
SENSOR, AMB AIR TEMP (WITH PUSH-IN/ATTACHMENT) (ACDelco #15-51150) |
D |
2005-2011 |
01 |
| 003 |
25731293 |
SENSOR, O/S AIR QUALITY (ACDelco #213-1697) |
DW (K14) |
2010-2011 |
01 |
| 004 |
11517484 |
BOLT, HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (O/S AIR QUALITY SEN) |
|
2005-2011 |
01 |
| 005 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMPS FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
