| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

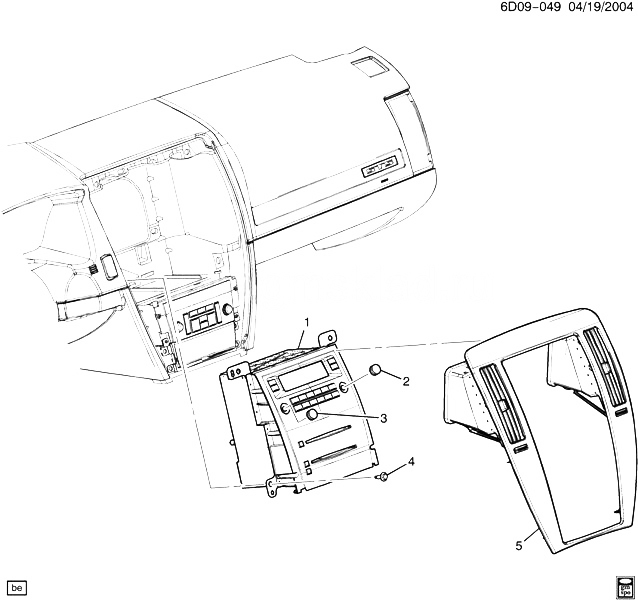

| 001 |
15924801 |
RADIO, AM/FM STEREO CLK AUDIO DISC PLYR (INCLS 2, 3) (ACDelco #15924801) |
DW29 (YQ1) |
2010-2011 |
01 |
| 001 |
15924802 |
RADIO, AM/FM STEREO CLK AUDIO DISC PLYR (INCLS 2, 3) (INCLS COMPARTMENT DOOR) (ACDelco #15924802) |
DW29 (JJD, YQ2) |
2011-2011 |
01 |
| 002 |
19116545 |
KNOB, RDO TUNING CONT (PART OF 1) |
D29 (YQ1, YQ2) |
2005-2011 |
01 |
| 003 |
19116545 |
KNOB, RDO VOL CONT (PART OF 1) |
DW (YQ1, YQ2) |
2010-2011 |
01 |
| 004 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RDO R/Q TR PNL SPKR) |
|
2005-2011 |
04 |
| 005 |
|
PLATE, I/P ACSRY CTR TR (SEE GROUP 10.000 INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
