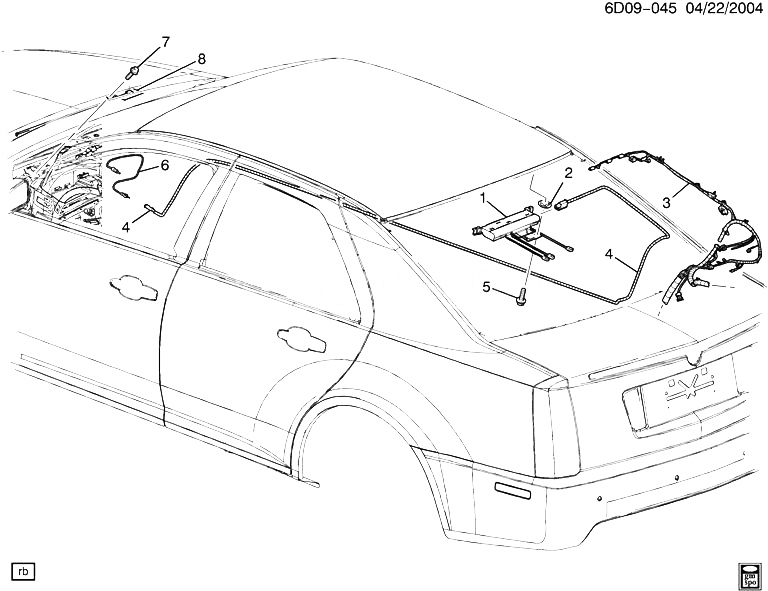

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25943068 |
MODULE, RDO ANT (ACDelco #25943068) |
DW29 (YQ1, YQ2, YQ4) |
2010-2011 |
01 |
| 001 |
15224694 |
MODULE, RDO ANT (ACDelco #15224694) |
DW29 |
2010-2011 |
01 |
| 002 |
11514517 |
NUT, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (RDO ANT) |
|
2005-2011 |
01 |
| 003 |
|
HARNESS, BODY WRG (INCLS 4) (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
| 004 |
25749068 |
CABLE, RDO ANT (PART OF 3) (ACDelco #25749068) |
D29 |
2005-2011 |
01 |
| 005 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO ANT MDL) |
|
2005-2011 |
02 |
| 006 |
25749071 |
CABLE, RDO ANT CBL EXTN RDO END (ACDelco #25749071) |
DW |
2010-2011 |
01 |
| 007 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (RDO ANT MDL) |
|
2005-2011 |
01 |
| 008 |
15828833 |
ANTENNA, ELEK NAVIGATION (ACDelco #15828833) |
DW (JJD, YQ4, YQ6) |
2011-2011 |
01 |
