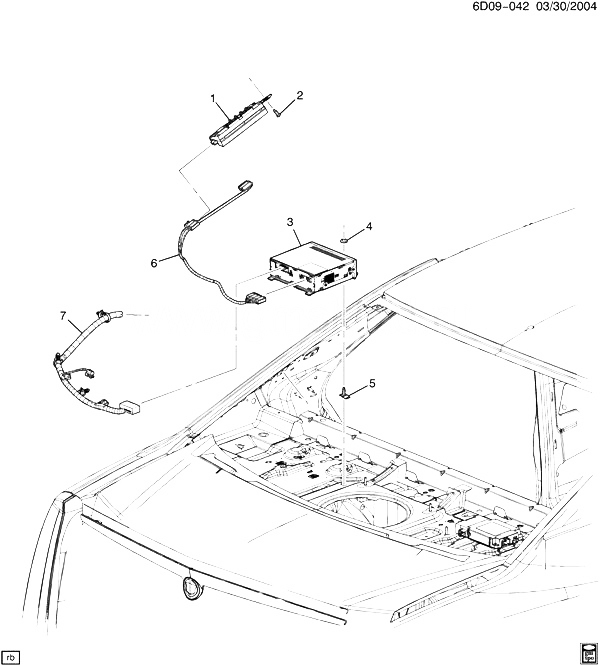

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25726556 |
MODULE, VIDEO ANT (ACDelco #25726556) |
DW29 (YQ6) |
2010-2011 |
01 |
| 002 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (TV ANT MDL) |
|
2005-2011 |
01 |
| 003 |
25805573 |
TUNER, TV (ACDelco #25805573) |
DW29 (YQ6) |
2011-2011 |
01 |
| 004 |
25640395 |
NUT, VIDEO TUNER DIGITAL RDO RCVR BRKT (M6) (WELD NUT) (UNTHREADED) (9.647) |
D29 |
2005-2011 |
01 |
| 005 |
11609599 |
STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (TV TUNER DIGITAL RDO RCVR BRKT) |
|
2005-2011 |
02 |
| 006 |
25749066 |
CABLE, VIDEO ANT AMPF COAX (ACDelco #25749066) |
DW29 (YQ6) |
2011-2011 |
01 |
| 007 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2011 |
|
