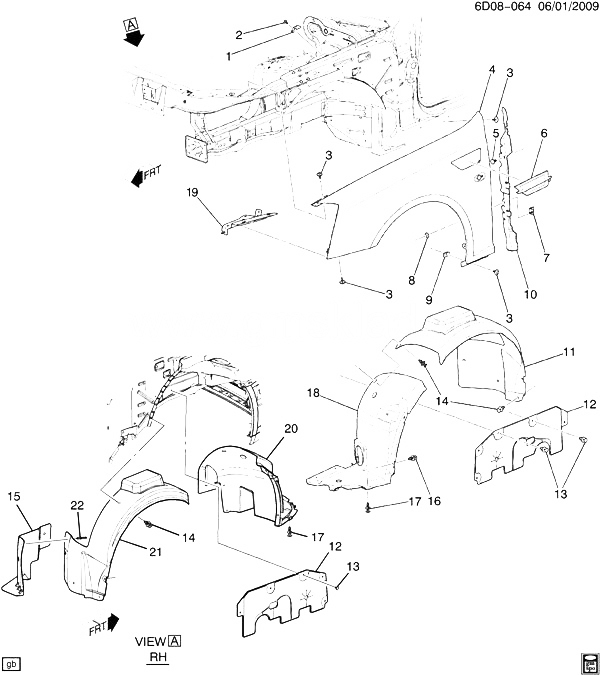

(6D08-064) 2009-2011 D29 КРЫЛО И КОЛЕСНАЯ АРКА/ПЕРЕДНЯЯ ЧАСТЬ CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15210125 BRACKET, F/FDR UPR (CENTER FENDER ATTACH) DW 2009-2011 02
002 11609540 BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (F/FDR UPR) (8.977) 2009-2011 02
003 11609540 BOLT, HWH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (F/FDR) (8.977) 2009-2011 14
004 89025516 FENDER, FRT (INCLS 19) D29 2009-2011 01
004 89025517 FENDER, FRT (INCLS 19) D29 2009-2011 01
005 RETAINER, F/FDR INSL (PART OF 10) 2009-2011
006 25892841 ORNAMENT, F/FDR DW 2009-2011 01
006 25892842 ORNAMENT, F/FDR DW 2009-2011 01
007 25724779 BRACKET, F/FDR RR CTR DW 2009-2011 02
008 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (F/FDR RR CTR BRKT) 2009-2011 02
009 11570097 NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (F/FDR RR LWR BRKT) 2009-2011 04
010 15274120 INSULATOR, F/FDR (INCLS 5) D29 2009-2011 01
010 15274121 INSULATOR, F/FDR (INCLS 5) D29 2009-2011 01
011 25817025 LINER, FRT W/H D29 2009-2011 01
012 25898939 SHIELD, FRT W/H SPH DW (MX7) 2010-2011 02
012 25898940 SHIELD, FRT W/H SPH DW (MX0, MN6) 2009-2011 02
013 11589293 RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (FRT W/H PNL SPH SHLD (PUSH IN)) 2009-2011 08
014 10185925 RETAINER, FRT W/H LNR (PAINT TO MATCH) (7.1 DIA, 33MM) (15.100) DW 2009-2011 02
015 SHIELD, ENG FRT SPH (PART OF 21) 2009-2011
016 11589293 RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (FRT BPR FASCIA EXTN) 2009-2011 06
017 11589291 RETAINER, PUSH-IN, FITS 6.5 HOLE IN 7-9.5 THK PNL, NYLON 6/6 (FRT BPR FASCIA EXTN) 2009-2011 04
018 25911105 EXTENSION, FRT BPR FASCIA DW 2009-2011 01
019 REINFORCEMENT, F/FDR FRT (PART OF 4) 2009-2011
020 25911106 EXTENSION, FRT BPR FASCIA DW 2009-2011 01
021 25842417 LINER, FRT W/H (INCLS 15, 22) (INCLUDES LINER FRT ENG SPH SHIELD) D29 2009-2011 01
022 11588308 RIVET, FRT W/H LWR RR PNL (PART OF 21) (48MM) (7.831) D29 2009-2011 03
