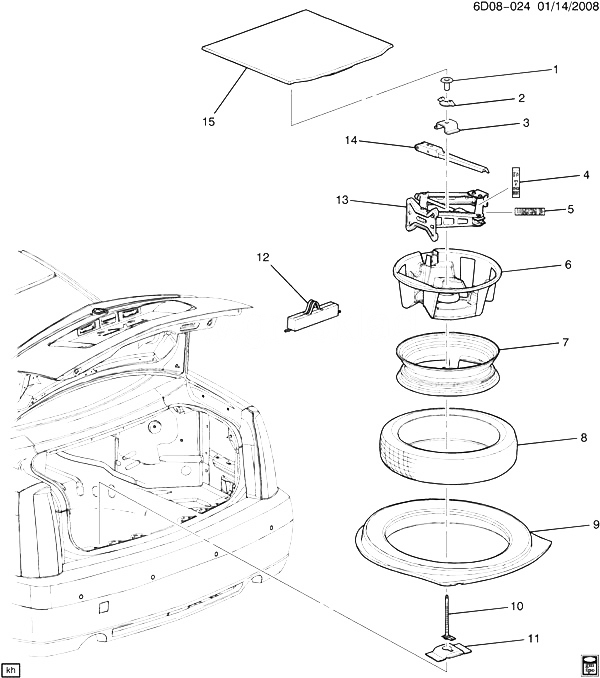

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11570541 |
CAP, SPA WHL STOW BOLT |
D29 |
2007-2011 |
01 |
| 002 |
11561358 |
NUT, WING, M8X1.25X21, 72 OD, 90 LENGTH, GM510M STL CLASS 9, GMW3044 (JK STOW) |
(ZAA) |
2009-2011 |
01 |
| 002 |
11562183 |
RETAINER, JK STOW (M8X1.25X90) (7.633) |
DW (EXC ZAA) |
2009-2011 |
01 |
| 003 |
25718733 |
WASHER, JK STOW (*KIT1) |
DW29 |
2010-2011 |
01 |
| 004 |
|
LABEL, JK LOCATION INFO (PART OF 13) (*KIT1) |
|
2010-2011 |
|
| 005 |
22722565 |
LABEL, JK WRNG (PART OF 13) (BILINGUAL) (TEXT SYMBOLS ON WHITE BACKGROUND) (*KIT1) |
DW29 |
2007-2011 |
01 |
| 006 |
15943527 |
CONTAINER, JK STOW (*KIT1) |
D29 (JE5) (EXC ZAA) |
2008-2011 |
01 |
| 006 |
15943527 |
CONTAINER, JK STOW (*KIT1) |
D29 (ZAA) |
2008-2011 |
01 |
| 007 |
19180509 |
WHEEL, 17X4 COMPACT SPA (17X4) (CODE JWL) (SPA) (*KIT1) |
DW (ZAA) |
2009-2011 |
01 |
| 008 |
|
TIRE, SPARE |
|
2010-2011 |
|
| 009 |
25743724 |
SUPPORT, SPA WHL (*KIT1) |
DW29 (JE5) |
2011-2011 |
01 |
| 010 |
11588355 |
BOLT, JK STOW (SQHD, M8X1.25X225, 110 THD, 5.8, GMW3044, 9 MM P-POINT, FLAT WASHER) |
DW29 |
2010-2011 |
01 |
| 011 |
25650571 |
BRACKET, SPA WHL STOW (55.1X84.5X126) (3 RECTANGULAR ATTACH BOLT HOLES) |
D |
2007-2011 |
01 |
| 012 |
15218694 |
BAG, ACSRY TOOL KIT (EXPORT ONLY) |
DW29 (VR5) |
2010-2011 |
01 |
| 013 |
13500358 |
JACK, (INCLS 4, 5) (*KIT1) |
DW29 (JE5, JL9) |
2010-2011 |
01 |
| 014 |
25841839 |
HANDLE, JK/WHL WRENCH (*KIT1) |
DW29 (ZAA) |
2010-2011 |
01 |
| 014 |
25841839 |
HANDLE, JK/WHL WRENCH (*KIT1) |
DW29 (JE5) (EXC ZAA) |
2010-2011 |
01 |
| 015 |
25721255 |
PANEL, R/CMPT SPA WHL STOW CVR |
DW |
2010-2011 |
01 |
| K01 |
09598606 |
TIRE KIT, SPARE (INCLS 3-7, 9, 13-14) |
DW (JE5) (EXC ZAA) |
2010-2011 |
01 |
