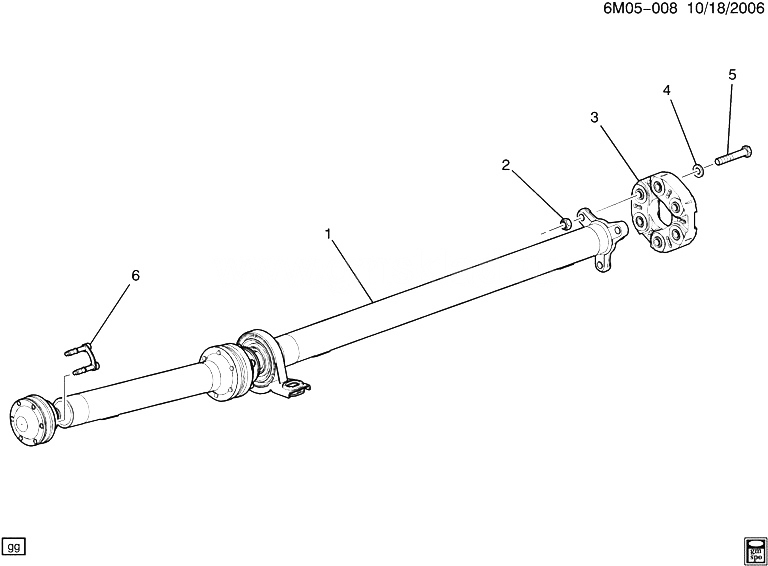

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15235576 |
SHAFT, PROP (INCLS 2-6) (INCLS CTR SUPT BRG) |
DW (LLT, MX7) |
2008-2011 |
01 |
| 002 |
11516078 |
NUT, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (PART OF 1) |
|
2005-2011 |
03 |
| 003 |
|
COUPLING, PROP SHF (PART OF 1) |
|
2011-2011 |
|
| 004 |
11588689 |
WASHER, PROP SHF FLG (PART OF 1) (ID 12.25, OD 23.0, THK 3.38MM) |
D |
2005-2011 |
06 |
| 005 |
11588658 |
BOLT-HEX, M12X1.75X70, 24 THD, 10.9, GMW3359, ADHESIVE PER GM6194M (PART OF 1) |
|
2005-2011 |
03 |
| 006 |
10363385 |
RETAINER, FRT PROP SHF (PART OF 1) (CONTAINS 2 M8X1.25X45 TORX HD BOLTS AND 1 CURVED FLAT WASHER) |
DW (LLT, MX7) |
2008-2011 |
03 |
