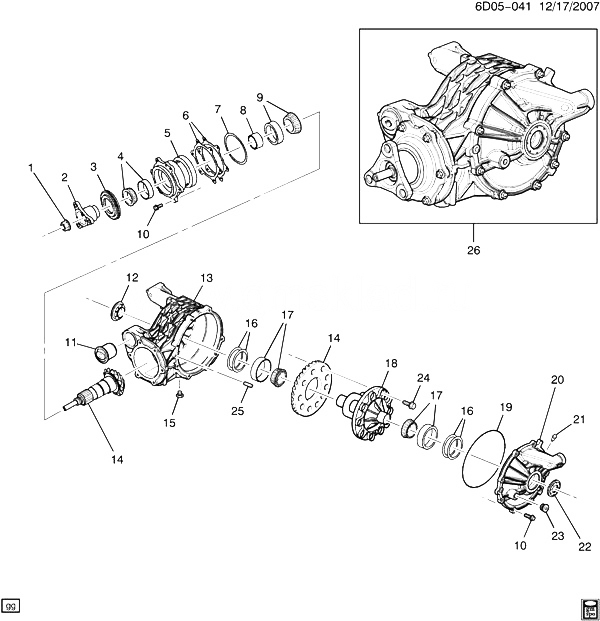

(6D05-041) 2010-2011 DW29 КОРПУС ДИФФЕРЕНЦИАЛА PART 1 CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89058614 NUT, DIFF DRV P/GR DW 2011-2011 01
002 25861285 FLANGE, RR WHL DRV SHF DW 2008-2011 01
003 25861283 SEAL, DIFF DRV P/GR D 2008-2011 01
004 BEARING, FRT DIFF DRV P/GR INR (PART OF 5) 2010-2011
005 HOUSING, DIFF DRV P/GR BRG (INCLS 4, 8, 9)) 2011-2011
007 88984427 SEAL, DIFF DRV P/GR (O RING) DW (GU5, JJM, G80, MX0) 2009-2011 01
007 88984427 SEAL, DIFF DRV P/GR (O RING) DW (LH2, GU5, JJM, G80, MX0) 2009-2011 01
007 88984427 SEAL, DIFF DRV P/GR (O RING) DW (LLT, GU5, JJM, G80, MX0) 2009-2011 01
007 88984427 SEAL, DIFF DRV P/GR (O RING) DW (MYB, GU5) (EXC G80) 2009-2011 01
007 88984427 SEAL, DIFF DRV P/GR (O RING) DW (GU2, MX0) (EXC G80) 2009-2011 01
008 SPACER, DIFF DRV P/GR BRG (PART OF 5) 2010-2011
009 BEARING, DIFF DRV P/GR INR (PART OF 5) 2010-2011
010 89058602 BOLT, DIFF CARR CVR (M8X1.25X30, 24THD) (FLANGE HEAD) (17OD) (5.476) D 2008-2011 14
011 89058605 BUSHING, DIFF CARR SUPT (BUSHING W/METAL SLEEVE) D29 (MYB, MX0) 2008-2011 01
012 25968537 SEAL, R/AXL SHF (ACDelco #291-331) DW (MYB, GU5) (EXC G80) 2009-2011 02
012 25968537 SEAL, R/AXL SHF (ACDelco #291-331) DW (MYB, MX7) (EXC G80) 2009-2011 02
012 25968537 SEAL, R/AXL SHF (ACDelco #291-331) DW (LLT, GU5, G80, MX0) 2009-2011 02
013 CARRIER, DIFF 2010-2011
014 GEAR SET, DIFF RING DRV PINION 2010-2011
015 PLUG, R/AXL HSG MAG DRN 2010-2011
018 DIFFERENTIAL, (SEE GROUP 05.000 DIFFERENTIAL CARRIER PART 2 FOR DETAILED ILLUSTRATED VIEW) (5.505) 2008-2011
019 89058617 SEAL, DIFF CARR CVR D29 2008-2011 01
020 COVER, DIFF CARR 2009-2011
021 VENT, R/AXL HSG 2010-2011
022 25968537 SEAL, R/AXL SHF (ACDelco #291-331) DW (MYB, GU5) (EXC G80) 2009-2011 02
022 25968537 SEAL, R/AXL SHF (ACDelco #291-331) DW (MYB, MX7) (EXC G80) 2009-2011 02
022 25968537 SEAL, R/AXL SHF (ACDelco #291-331) DW (LLT, GU5, G80, MX0) 2009-2011 02
023 19256068 PLUG, DIFF CARR FILL (M20X1.5X16) D 2010-2011 01
024 89048225 BOLT, RR DIFF R/GR (M12 X 25 MM) DW 2008-2011 10
025 PIN, DIFF CARR LOC 2009-2011
026 25978161 CARRIER, DIFF (3.23 RATIO) (INCLS 1-25) (ALSO NEED TO ORDER R/AXLE HSG VENT 19132947 WHEN ORDERING DIFF CARRIER) DW (MYB, GU5) (EXC G80) 2008-2011 01
026 25978162 CARRIER, DIFF (3.23 RATIO) (INCLS 1-25) DW (LLT, GU5, G80, MX0) 2009-2011 01
