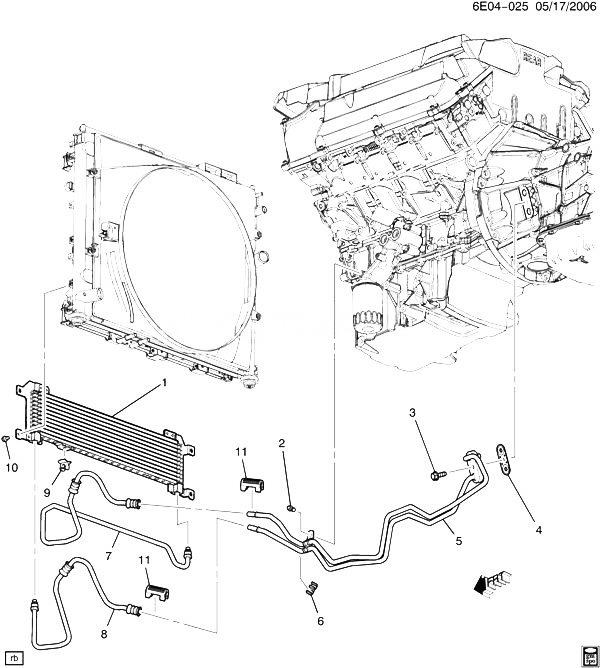

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19130449 |
COOLER, TRANS FLUID (INCLS 7-10) (ACDelco #19130449) |
DW29 (LLT, V03) |
2010-2011 |
01 |
| 002 |
11515758 |
BOLT, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (TRANS FLUID CLR PIPE BRKT) |
|
2007-2011 |
01 |
| 003 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (TRANS FLUID CLR PIPE BRKT) (ACDelco #11570082) |
|
2007-2011 |
01 |
| 004 |
15251488 |
SEAL, TRANS FLUID CLR PIPE FTG (PART OF 5) (SEALS TWO PIPES) (ACDelco #15251488) |
DW29 (LLT) |
2011-2011 |
01 |
| 005 |
15875389 |
PIPE, TRANS FLUID CLR INL OTLT (INCLS 4, 6) (ACDelco #15875389) |
DW29 (LLT, V03) |
2010-2011 |
01 |
| 006 |
10405874 |
CLIP, TRANS FLUID CLR PIPE (PART OF 5) (LESS MNTG TAB) (HOLDS TWO 9.5 DIA TUBES) |
DW29 (LLT) |
2008-2011 |
AR |
| 007 |
|
PIPE, TRANS FLUID CLR LWR (PART OF 1) |
|
2011-2011 |
|
| 008 |
|
PIPE, TRANS FLUID CLR UPR (PART OF 1) |
|
2011-2011 |
|
| 009 |
|
CLIP, TRANS FLUID CLR PIPE (PART OF 1) |
|
2011-2011 |
|
| 010 |
|
BOLT, TRANS FLUID CLR (PART OF 1) |
|
2011-2011 |
|
| 011 |
15921020 |
CLIP, TRANS FLUID AUX CLR PIPE (CYLINDRICAL) (1 PIPE) |
D |
2007-2011 |
02 |
