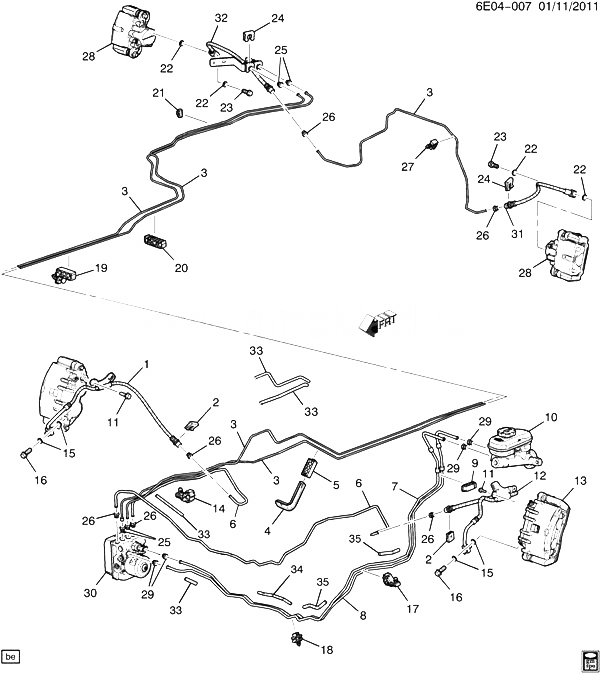

(6E04-007) 2010-2011 DW29 ТОРМОЗНЫЕ ШЛАНГИ И ТРУБКИ CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15933095 HOSE, FRT BRK (INCLS 15, 16) (ACDelco #176-1499) DW29 2010-2011 01
002 11569742 RETAINER, FRT BRK HOSE (28X25X4.7) (1 SIDED RETAINER) D 2005-2011 02
003 88983905 PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) D 2008-2011 AR
004 25761218 BRACKET, FUEL PIPE D 2005-2011 01
005 25867887 CLIP, FUEL FEED EVAP EMIS FRT PIPE (62X28X15) (3.162) D 2008-2011 01
005 25867887 CLIP, FUEL FEED EVAP EMIS FRT PIPE (62X28X15) D 2008-2011 01
006 12547207 TUBING, BULK, 3/16 X 20 FT ROLL, STL (BRK FUEL FEED FUEL RTN EVAP EMIS) (8.964) 2005-2011 AR
007 25904722 PIPE, BRK PRESS MOD VLV FRT (INCLS 29) DW29 (LLT) 2009-2011 01
008 25904723 PIPE, BRK PRESS MOD VLV RR (INCLS 29) (ACDelco #25904723) DW29 (LLT) 2009-2011 01
009 15904915 SPACER, FRT BRK PIPE DW (LLT) 2011-2011 01
010 CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) 2005-2011
011 11516521 BOLT, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE) 2005-2011 04
012 15933094 HOSE, FRT BRK (INCLS 15, 16) (ACDelco #176-1477) DW29 2010-2011 01
013 CALIPER, FRT BRK (SEE GROUP 04.000 BRAKE CALIPER/FRONT FOR DETAILED ILLUSTRATED VIEW) 2005-2011
014 15904903 RETAINER, FRT BRK PIPE (UPSIDE DOWN 3 TUBE WITH TREE) DW29 (LLT) 2011-2011 01
015 GASKET, FRT BRK HOSE FTG (PART OF 1, 12) 2010-2011
016 FITTING, FRT BRK PIPE (PART OF 1, 12) 2010-2011
017 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2)4.68-4.82 TUBES) DW 2008-2011 02
018 15904901 RETAINER, FRT BRK PIPE (STAR SHAPED 3 TUBE W/TREE) DW29 (LLT) 2011-2011 02
019 25867884 RETAINER, BRK FUEL PIPE (HOLDS (3) LINES, L-SHAPED W/PINLOK) DW29 (JE5, JL9, J56) 2010-2011 02
020 25867886 RETAINER, BRK FUEL PIPE (CLIP - HOLDS (5) TUBES) DW (JE5, JL9, J56) 2008-2011 01
021 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2)4.68-4.82 TUBES) DW29 2006-2011 02
022 GASKET, RR BRK HOSE FTG (PART OF 31, 32) 2010-2011
023 FITTING, RR BRK FRT PIPE (PART OF 31, 32) 2010-2011
024 11569742 RETAINER, RR BRK HOSE (28X25X4.7) (1 SIDED RETAINER) D 2005-2011 02
025 11588819 NUT, TUBE, 9/16-18X0.40, 0.32 THD, 0.62 LONG, 1/4 TUBE, 1010, GMW4707 (BRK PIPE) 2005-2011 AR
026 11588819 NUT, TUBE, 9/16-18X0.40, 0.32 THD, 0.62 LONG, 1/4 TUBE, 1010, GMW4707 (BRK PIPE) 2005-2011 AR
027 25693890 RETAINER, RR BRK PIPE (HOLDS (1) 4.76 LINE) (W/TREE) D 2005-2011 04
028 CALIPER, RR BRK (SEE GROUP 04.000 BRAKE CALIPER/REAR FOR DETAILED ILLUSTRATED VIEW) 2005-2011
029 FITTING, BRK PRESS MOD VLV FRT BRK PIPE (PART OF 7, 8) 2010-2011
030 VALVE, BRK PRESS MOD (SEE GROUP 04.000 BRAKE PRESSURE MODULATOR VALVE FOR DETAILED ILLUSTRATED VIEW) 2005-2011
031 15875844 HOSE, RR BRK (INCLS 22, 23) (ACDelco #176-1471) DW (J56) 2009-2011 01
031 15933091 HOSE, RR BRK (INCLS 22, 23) (ACDelco #15933091) DW (JL9) 2010-2011 01
031 15933091 HOSE, RR BRK (INCLS 22, 23) (ACDelco #15933091) DW (JE5) 2010-2011 01
032 15875843 HOSE, RR BRK (INCLS 22, 23) (ACDelco #176-1470) DW (J56) 2009-2011 01
032 15933092 HOSE, RR BRK (INCLS 22, 23) (ACDelco #15933092) DW (JL9) 2010-2011 01
032 15933092 HOSE, RR BRK (INCLS 22, 23) (ACDelco #15933092) DW (JE5) 2010-2011 01
033 88964150 PROTECTOR, FRT BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) D 2005-2011 AR
034 12477665 PROTECTOR, BRK PIPE (FOR 1/4 PIPE) (HT SHRINK) D 2005-2011 AR
