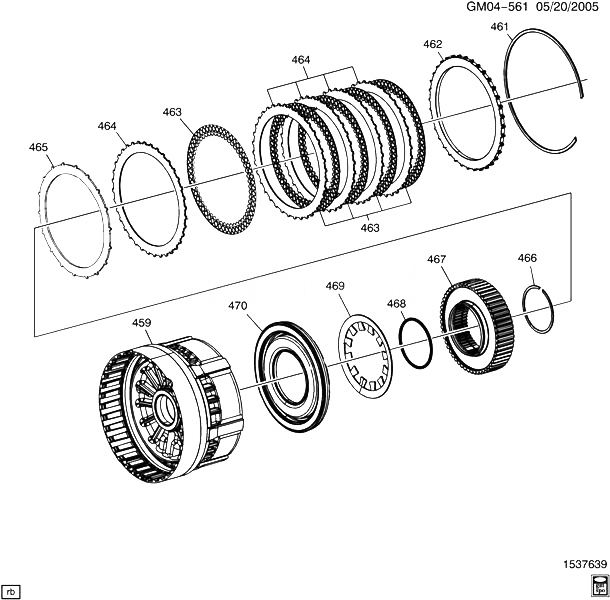

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 459 |
|
SUPPORT, CTR (SEE GROUP 04.000 AUTOMATIC TRANSMISSION CLUTCH ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2011 |
|
| 461 |
24231937 |
RING, LOW REV CLU BKG PLT RET (2.33MM +/- 0.05) (MUST BE USED T/W 24247402) (4.166) (ACDelco #24231937) |
DW (MYB) |
2011-2011 |
01 |
| 461 |
24231938 |
RING, LOW REV CLU BKG PLT RET (2.63MM +/- 0.05) (MUST BE USED T/W 24247402) (ACDelco #24231938) |
DW (MYB) |
2011-2011 |
01 |
| 461 |
24247408 |
RING, LOW REV CLU BKG PLT RET (3.23MM +/- 0.05) (MUST BE USED T/W 24247402) (ACDelco #24247408) |
DW (MYB) |
2011-2011 |
01 |
| 462 |
24247402 |
PLATE, LOW REV CLU BKG (MUST BE USED T/W 24231937/38/38, AND 24247407/08) (ACDelco #24247402) |
DW (MYB) |
2011-2011 |
01 |
| 463 |
24236664 |
PLATE, LOW REV CLU (PKG OF 6) (FIBER) (*KIT2) (ACDelco #24236664) |
DW (MYB) |
2008-2011 |
01 |
| 464 |
24258079 |
PLATE, LOW REV CLU (STEEL) (PART PKG CONTAINS 1 PART) (ACDelco #24258079) |
DW (MYB) |
2008-2011 |
06 |
| 465 |
24237971 |
PLATE, LOW REV CLU (WAVED) (ACDelco #24237971) |
DW (MYB) |
2008-2011 |
01 |
| 466 |
24225517 |
RING, LOW REV CLU SPR RET (ACDelco #24225517) |
DW29 (MYB) |
2007-2011 |
01 |
| 467 |
24238921 |
SPRAG, LOW CLU (INCLS 468) |
DW (MYB) |
2008-2011 |
01 |
| 468 |
|
SEAL, LOW CLU SPRAG (PART OF 467) (*KIT1) |
|
2008-2011 |
|
| 469 |
24225562 |
SPRING, LOW REV CLU (ACDelco #24225562) |
DW (MYB) |
2008-2011 |
01 |
| 470 |
24225525 |
PISTON, LOW REV CLU (ACDelco #24225525) |
DW (MYB) |
2008-2011 |
01 |
| K01 |
24238922 |
SEAL KIT, A/TRNS SERV (INCLS 468) (INCL SERVICEABLE SEALS FOR EACH OF THE 5 CLUTCH ASMS) (ACDelco #24238922) |
DW (MYB) |
2010-2011 |
01 |
| K02 |
24252458 |
PLATE KIT, CLU (INCLS 463) (ACDelco #24252458) |
DW (MYB) |
2011-2011 |
01 |
