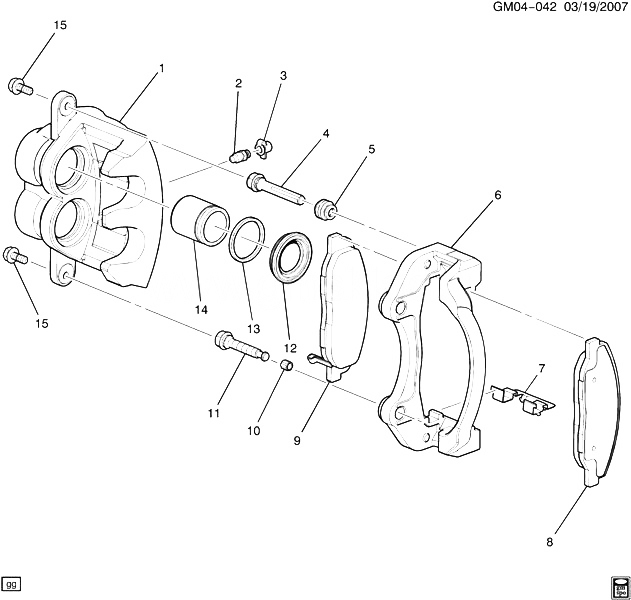

(GM04-042) 2010-2011 DW29 ТОРМОЗНОЙ СУППОРТ/ПЕРЕДНИЙ (JE5,JL9) CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15851351 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (ACDelco #15851351) DW29 (JE5, JL9) 2009-2011 01
001 15853359 CALIPER, FRT BRK (INCLS 2, 3, 12-14) (ACDelco #15853359) DW29 (JE5, JL9) 2009-2011 01
002 88935776 VALVE, FRT BRK CLPR BLEDR (PART OF 1) (M10X1.0) (ACDelco #88935776) DW29 (JE5, JL9) 2009-2011 02
003 88935785 CAP, FRT BRK CLPR BLEDR VLV (PART OF 1) D (JE5, JL9) 2009-2011 02
004 13504030 PIN, FRT BRK CLPR GDE DW29 (JE5, JL9, MX0) 2009-2011 02
004 13504030 PIN, FRT BRK CLPR GDE DW29 (JE5, MX7) 2009-2011 02
005 SEAL, FRT BRK CLPR GDE PIN (*KIT3) 2010-2011
006 19209289 BRACKET, FRT BRK CLPR DW29 (JE5, JL9) 2009-2011 02
007 SPRING, FRT DISC BRK PAD RET (*KIT2) 2010-2011
008 PAD, FRT DISC BRK OTR (*KIT2) 2010-2011
009 PAD, FRT DISC BRK INR (*KIT2) 2010-2011
010 BUSHING, FRT BRK CLPR GDE PIN (PART OF 11) (*KIT3) 2010-2011
011 13504030 PIN KIT, FRT BRK CLPR GDE (INCLS 10) DW29 (JE5, JL9, MX0) 2009-2011 02
011 13504030 PIN KIT, FRT BRK CLPR GDE (INCLS 10) DW29 (JE5, MX7) 2009-2011 02
012 BOOT, FRT BRK CLPR PSTN (PART OF 1) (*KIT1) 2010-2011
013 SEAL, FRT BRK CLPR PSTN (PART OF 1) (*KIT1) 2010-2011
014 15926281 PISTON, FRT BRK CLPR (PART OF 1) DW29 (JE5, JL9) 2009-2011 04
015 89027183 BOLT, FRT BRK CLPR GDE PIN (M8X1.0) (14MM SOCKET) DW (JE5, JL9) 2009-2011 04
K01 25814701 SEAL KIT, FRT BRK CLPR PSTN (INCLS 12, 13) (CONTAINS 2 PISTON BOOTS 2 PISTON SEALS) DW29 (JE5, JL9, MX0) 2009-2011 02
K01 25814701 SEAL KIT, FRT BRK CLPR PSTN (INCLS 12, 13) (CONTAINS 2 PISTON BOOTS 2 PISTON SEALS) DW29 (JE5, MX7) 2009-2011 02
K02 22825195 PAD KIT, FRT DISC BRK (INCLS 7-9) (ACDelco #171-1088) DW29 (JE5, JL9) 2009-2011 01
K03 25814700 SEAL KIT, FRT BRK CLPR GDE PIN (INCLS 5, 10) (INCLS (4)SEALS (2)BUSHINGS) DW29 (JE5, JL9) 2009-2011 01
