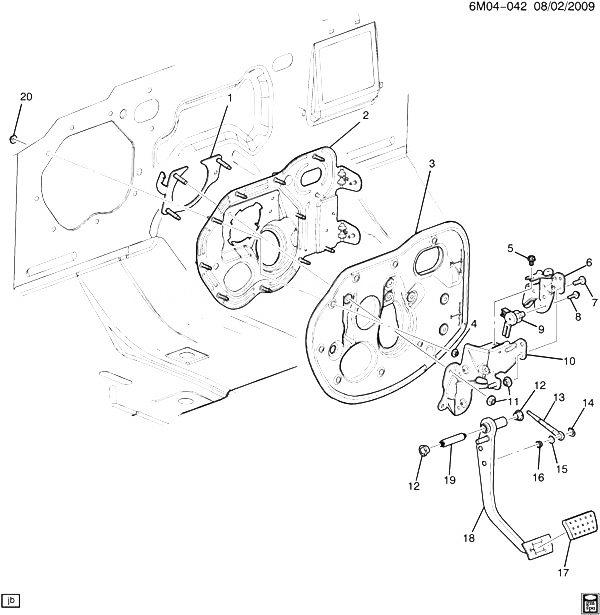

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25675835 |
BRACKET, BRK PED BRKT |
DW29 |
2010-2011 |
01 |
| 002 |
25737951 |
REINFORCEMENT, DA PNL BRK PED BRKT |
DW |
2011-2011 |
01 |
| 003 |
25789356 |
BARRIER, BRK PED BRKT SND |
DW |
2011-2011 |
01 |
| 004 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR) |
|
2005-2011 |
05 |
| 005 |
|
BOLT, BRK PED BRKT BR (PART OF 18) |
|
2007-2011 |
|
| 006 |
|
BRACKET, BRK PED (PART OF 18) |
|
2007-2011 |
|
| 007 |
|
BOLT, BAT HOLDN RET (PART OF 18) |
|
2007-2011 |
|
| 008 |
11609999 |
SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (PART OF 18) |
|
2005-2011 |
01 |
| 009 |
89047699 |
SENSOR KIT, BRK PED POSN (ACDelco #89047699) |
DW29 |
2010-2011 |
01 |
| 010 |
|
BRACKET, BRK PED (PART OF 18) |
|
2007-2011 |
|
| 011 |
11514519 |
NUT, BRK PED BRKT (M8X1.25, 7.32 THK) (9510M, ZF) (8.915) |
D |
2008-2011 |
02 |
| 012 |
14004821 |
BUSHING, BRK PED PIV (PART OF 18) (0.831) |
D |
2005-2011 |
02 |
| 013 |
|
ROD, BRK PED PUSH (PART OF 18) |
|
2007-2011 |
|
| 014 |
03817880 |
RETAINER, BRK PED PUSH ROD (PART OF 18) (0.80 IN) (PUSH IN) |
D29 |
2008-2011 |
01 |
| 015 |
00410230 |
WASHER, SPRING 29/64 I.D., 11/16 O.D., 5/64 THK, PL (PART OF 18) |
|
2005-2011 |
01 |
| 016 |
10434956 |
BUSHING, BRK PED PUSH ROD (PART OF 18) |
D |
2005-2011 |
01 |
| 017 |
25771615 |
COVER, BRK PED (PART OF 18) |
DW29 |
2010-2011 |
01 |
| 018 |
25980365 |
PEDAL, BRK (INCLS 5-8, 10, 12-17, 19) |
DW |
2010-2011 |
01 |
| 019 |
|
PIN, BRK PED PIV (PART OF 18) |
|
2007-2011 |
|
| 020 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA PNL REINF) |
|
2005-2011 |
09 |
