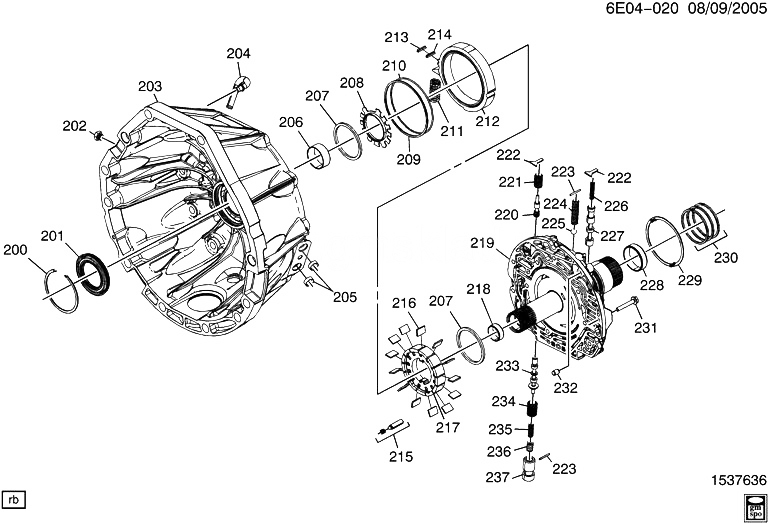

(6E04-020) 2008-2011 D АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYB) (6L50) TORQUE CONVERTER HOUSING FLUID PUMP CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
200 24218963 RING, T/CV FLUID SEAL RET (ACDelco #24218963) DW (MYB) 2008-2011 01
201 24237531 SEAL, T/CV FLUID (PART OF 217, 219) (ACDelco #24237531) D (MYB) 2007-2011 01
202 00444613 PLUG, HEX HD, 1/8-27 NPTF, STL (LINE PRESS TEST HOLE) (ACDelco #444613) 2007-2011 01
203 24255513 HOUSING, T/CV (MCHG) (INCLS 206) (ACDelco #24255513) DW29 (LLT, LY7, MYB) 2008-2011 01
204 24225422 PIPE, A/TRNS VENT (ACDelco #24225422) DW29 (MYB) 2008-2011 01
205 15251488 SEAL, TRANS FLUID CLR PIPE FTG (PART OF 217, 219) (SEALS TWO PIPES) (*KIT1) (ACDelco #15251488) DW29 (LLT) 2011-2011 01
206 BUSHING, T/CV (PART OF 203) 2008-2011
207 RING, A/TRNS FLUID PUMP VANE (PART OF 217) 2008-2011
208 GUIDE, A/TRNS FLUID PUMP ROT (PART OF 217) 2008-2011
209 RING, A/TRNS FLUID PUMP SLIDE FLUID SEAL (PART OF 217) 2008-2011
210 SEAL, A/TRNS O/PMP SLIDE (O RING) (PART OF 217) (*KIT1) 2008-2011
211 SPRING, A/TRNS FLUID PUMP SLIDE OTR (PART OF 217) 2008-2011
212 24222668 SLIDE, A/TRNS FLUID PUMP (17.948MM-17.961MM) (ACDelco #24222668) DW (MYB) 2008-2011 01
212 24224131 SLIDE, A/TRNS FLUID PUMP (17.961MM-17.974MM) (ACDelco #24224131) DW (MYB) 2008-2011 01
212 24224132 SLIDE, A/TRNS FLUID PUMP (17.974MM-17.987MM) (ACDelco #24224132) DW (MYB) 2008-2011 01
213 SEAL, A/TRNS FLUID PUMP SLIDE (PART OF 217) 2008-2011
214 SUPPORT, A/TRNS FLUID PUMP SLIDE SEAL (PART OF 217) (*KIT1) 2008-2011
215 PIN, A/TRNS FLUID PUMP SLIDE PIV (PART OF 217) 2008-2011
216 VANE, A/TRNS FLUID PUMP (PART OF 217) 2008-2011
217 24238915 ROTOR PKG, A/TRNS FLUID PUMP (INCLS CONTROL VLV SEAL KIT) (INCLS 201, 205, 207-211, 213-216, 230) (17.948MM-17.961MM) (ACDelco #24238915) DW (MYB) 2008-2011 01
217 24238916 ROTOR PKG, A/TRNS FLUID PUMP (INCLS CONTROL VLV SEAL KIT) (INCLS 201, 205, 207-211, 213-216, 230) (17.961MM-17.974MM) (ACDelco #24238916) DW (MYB) 2010-2011 01
217 24238917 ROTOR PKG, A/TRNS FLUID PUMP (INCLS CONTROL VLV SEAL KIT) (INCLS 201, 205, 207-211, 213-216, 230) (17.974MM-17.987MM) (ACDelco #24238917) DW (MYB) 2010-2011 01
218 BUSHING, TURB SHF FRT (PART OF 219) 2008-2011
219 24253061 COVER KIT, A/TRNS FLUID PUMP (INCLS CONTROL VLV SEAL KIT) (INCLS 201, 205, 218, 220-230, 232-237) (ACDelco #24253061) DW (MYB) 2010-2011 01
220 VALVE, CONV FEED LIM (PART OF 219) 2008-2011
221 SPRING, PRESS RLF BALL VLV (PART OF 219) 2008-2011
222 SPRING, CONV FEED LIM VLV (PART OF 219) 2008-2011
223 PIN, PRESS RLF BALL VLV SPR (PART OF 219) 2008-2011
224 SPRING, PRESS RLF BALL VLV (PART OF 219) 2008-2011
225 00147500 VALVE, PRESS RLF BALL (PART OF 219) (ACDelco #00147500) D (MYB) 2007-2011 01
226 SPRING, TCC C/VLV (PART OF 219) 2008-2011
227 VALVE, TCC CONT (PART OF 219) 2008-2011
228 BUSHING, TURB SHF RR (PART OF 219) 2008-2011
229 24224692 WASHER, 1-2-3-4 3-5 REV CLU HSG THR (PART OF 219) (ACDelco #24224692) DW (MYB) 2008-2011 01
230 24239151 RING, 1-2-3-4 3-5 REV CLU FLUID SEAL (PART OF 217, 219) (*KIT1, KIT2) (ACDelco #24239151) DW29 (MYB) 2010-2011 03
231 24227061 BOLT, A/TRNS FLUID PUMP CVR (ACDelco #24227061) DW (MYB) 2008-2011 13
232 90351709 PIN, A/TRNS FLUID PUMP LOC (PART OF 219) (8MM HOLLOW SPLIT PIN) (1.639) D (MYB) 2007-2011 01
233 VALVE, PRESS REG (PART OF 219) 2008-2011
234 SPRING, PRESS REG VLV OTR (PART OF 219) 2008-2011
235 SPRING, PRESS REG VLV INR (PART OF 219) 2008-2011
236 VALVE, ISOLATOR (PART OF 219) 2008-2011
237 SLEEVE, ISOLATOR VLV (PART OF 219) 2008-2011
K01 24238912 SEAL KIT, A/TRNS SERV (INCLS 205, 210, 214, 230) (FULL TRANS) (ACDelco #24238912) DW (MYB) 2010-2011 01
K02 24239151 RING KIT, 1-2-3-4 3-5 REV CLU FLUID SEAL (INCLS 230) (ACDelco #24239151) DW (MYB) 2008-2011 01
