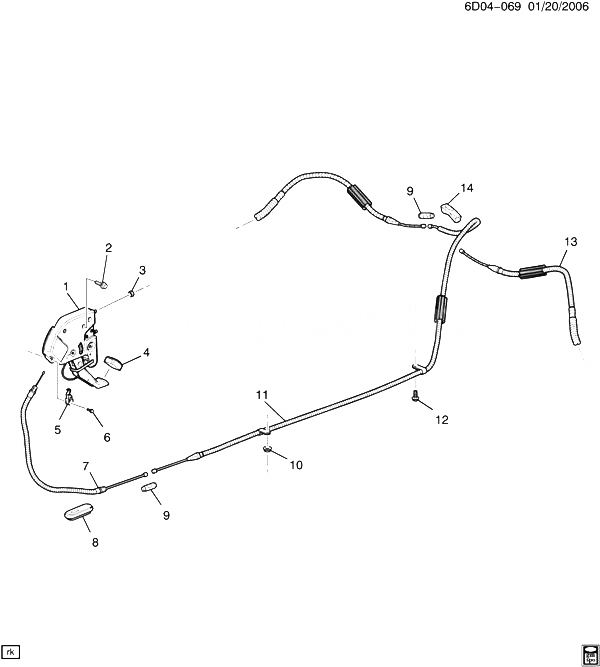

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15906841 |
LEVER, PARK BRK (INCLS 4-8) |
DW |
2010-2011 |
01 |
| 002 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (PARK BRK LVR) |
|
2005-2011 |
01 |
| 003 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (PARK BRK LVR) (8.915) (ACDelco #11514596) |
|
2005-2011 |
02 |
| 004 |
|
COVER, PARK BRK LVR PED (PART OF 1) |
|
2005-2011 |
|
| 005 |
22654577 |
SWITCH, PARK BRK IND (PART OF 1) (ACDelco #22654577) |
DW29 (JJD) |
2011-2011 |
01 |
| 006 |
10369646 |
BOLT, PARK BRK IND SW (PART OF 1) |
D29 |
2009-2011 |
01 |
| 007 |
|
CABLE, PARK BRK FRT (PART OF 1) |
|
2005-2011 |
|
| 008 |
|
GROMMET, PARK BRK FRT CBL (PART OF 1) |
|
2005-2011 |
|
| 009 |
|
CONNECTOR, PARK BRK CBL (PART OF 11) |
|
2005-2011 |
|
| 010 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (PARK BRK INTER CBL GDE) |
|
2005-2011 |
01 |
| 011 |
25904929 |
CABLE, PARK BRK INTER (INCLS 9, 14) (ACDelco #25904929) |
DW29 |
2010-2011 |
01 |
| 012 |
11518623 |
BOLT, PARK BRK INTER CBL GDE (HFH, M10X1.5X25, 15.3 THD, 22.3 OD, 10.9, MATPOINT) (14.870) |
DW29 |
2010-2011 |
01 |
| 013 |
20772270 |
CABLE, PARK BRK RR (775X28X28) (ACDelco #20772270) |
DW29 |
2005-2011 |
02 |
| 014 |
|
EQUALIZER, PARK BRK CBL (PART OF 11) |
|
2005-2011 |
|
