| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

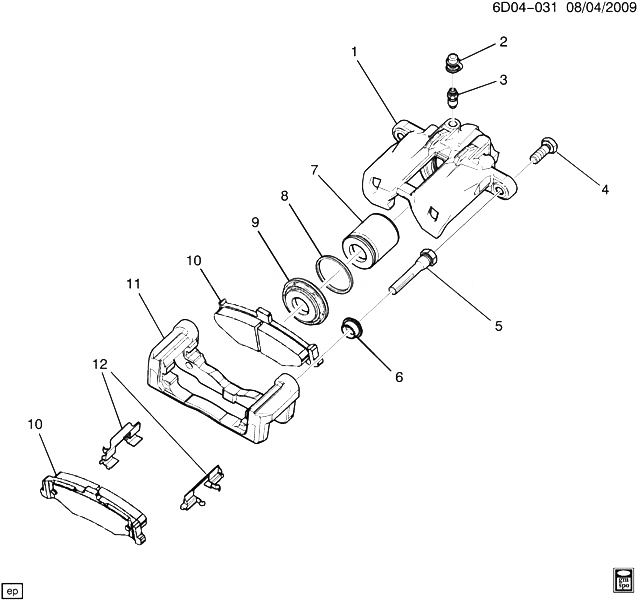

| 001 |
89060218 |
CALIPER, RR BRK (INCLS 2-4, 7-9) (ACDelco #172-2345) |
DW29 (JL9) |
2005-2011 |
01 |
| 001 |
89060219 |
CALIPER, RR BRK (INCLS 2-4, 7-9) (ACDelco #172-2346) |
DW29 (JL9) |
2005-2011 |
01 |
| 001 |
89060221 |
CALIPER, RR BRK (INCLS 2-4, 7-9) (ACDelco #172-2307) |
DW29 (JE5) |
2005-2011 |
01 |
| 002 |
88951992 |
CAP, RR BRK BLEDR VLV (PART OF 1) |
DW29 (JE5, JL9) |
2005-2011 |
02 |
| 003 |
88957158 |
VALVE, RR BRK CLPR BLEDR (PART OF 1) (ACDelco #88957158) |
DW29 (JE5, JL9) |
2005-2011 |
02 |
| 004 |
|
BOLT, RR BRK CLPR GDE PIN (PART OF 1, 10) (*KIT1, KIT2) |
|
2005-2011 |
|
| 005 |
|
PIN, RR BRK CLPR GDE (*KIT1) |
|
2005-2011 |
|
| 006 |
|
BOOT, RR BRK CLPR GDE PIN (*KIT1, KIT2) |
|
2005-2011 |
|
| 007 |
|
PISTON, RR BRK CLPR (PART OF 1) |
|
2005-2011 |
|
| 008 |
|
SEAL, RR BRK CLPR PSTN (PART OF 1) (*KIT2) |
|
2005-2011 |
|
| 009 |
|
BOOT, RR BRK CLPR PSTN (PART OF 1) (*KIT2) |
|
2005-2011 |
|
| 010 |
89047757 |
PAD KIT, RR DISC BRK (INCLS 4, 12) (ACDelco #171-859) |
DW (JE5) |
2005-2011 |
01 |
| 010 |
89060217 |
PAD KIT, RR DISC BRK (INCLS 4, 12) (ACDelco #171-0883) |
DW29 (JL9) |
2005-2011 |
01 |
| 011 |
88957163 |
BRACKET, RR BRK CLPR |
DW (JE5) |
2008-2011 |
02 |
| 011 |
89047767 |
BRACKET, RR BRK CLPR |
D (JL9) |
2005-2011 |
02 |
| 012 |
|
SHIM, RR DISC BRK PAD (PART OF 10) |
|
2005-2011 |
|
| K01 |
89047759 |
PIN KIT, RR BRK CLPR GDE (INCLS 4-6) (INCLS 2 PINS, 2 SEALS 2 (2.75) BOLTS) (ACDelco #179-2044) |
DW (JE5, JL9) |
2008-2011 |
02 |
| K02 |
89060223 |
CALIPER KIT, RR BRK (INCLS 4, 6, 8, 9) (4.667) |
DW (JL9) |
2010-2011 |
02 |
| K02 |
89060223 |
CALIPER KIT, RR BRK (INCLS 4, 6, 8, 9) (4.667) |
DW (JE5) |
2010-2011 |
02 |
