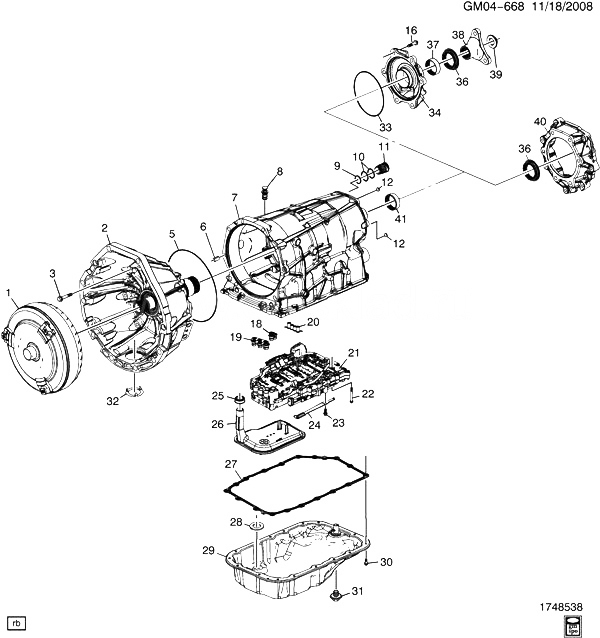

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24240017 |
CONVERTER, TORQ |
DW29 (LLT, MYB) |
2009-2011 |
01 |
| 002 |
|
HOUSING, T/CV (W/ FLUID PUMP) (SEE GROUP 04.000 TORQUE CONVERTOR HOUSING AND FLUID PUMP FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2011 |
|
| 003 |
11515762 |
BOLT, HFH, M8X1.25X50, 18 OD, 22 THD, 10.9, PZO (T/CV HSG) |
|
2009-2011 |
08 |
| 005 |
24225543 |
SEAL, A/TRNS FLUID PUMP (ACDelco #24225543) |
DW (MYB) |
2009-2011 |
01 |
| 006 |
|
PIN, T/CV HSG LOC (PART OF 7) |
|
2009-2011 |
|
| 007 |
96043342 |
CASE, A/TRNS (INCLS 6, 12) (ACDelco #96043342) |
DW (MYB, JJB, MX7) |
2010-2011 |
01 |
| 007 |
96043343 |
CASE, A/TRNS (INCLS 6, 12) (ACDelco #96043343) |
DW (MYB) |
2009-2011 |
01 |
| 008 |
24226020 |
PLUG, TRANS FLUID FIL TUBE (ACDelco #24226020) |
DW29 (MYB) |
2009-2011 |
01 |
| 009 |
|
SEAL, A/TRNS WRG CONN (*KIT1, KIT2) |
|
2009-2011 |
|
| 010 |
|
SEAL, A/TRNS WRG CONN (O RING) (*KIT1, KIT2) |
|
2009-2011 |
|
| 011 |
24239878 |
SLEEVE, A/TRNS ELEC CONN PASG (ACDelco #24239878) |
DW29 (MYB) |
2010-2011 |
01 |
| 012 |
|
PLUG, A/TRNS CASE (PART OF 7) |
|
2009-2011 |
|
| 016 |
24225788 |
BOLT, A/TRNS CASE EXTN (M10X1.5X34) (ACDelco #24225788) |
DW (MYB) |
2009-2011 |
06 |
| 018 |
|
SEAL, A/TRNS FLUID PUMP (*KIT2) |
|
2009-2011 |
|
| 019 |
|
SEAL, A/TRNS FLUID PUMP (*KIT2) |
|
2009-2011 |
|
| 020 |
|
SEAL, CTR SUPT FLUID PASG (*KIT2) |
|
2009-2011 |
|
| 021 |
|
VALVE, CONT (W/BODY VLV) (SEE GROUP 04.000 AUTOMATIC TRANSMISSION CONTROL VALVE ASSEMBLY FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2011 |
|
| 022 |
24224822 |
BOLT, C/VLV LWR BODY (M5X0.8X55) |
DW (MYB) |
2009-2011 |
06 |
| 023 |
24231074 |
BOLT, MAN SHFT DTNT (M10X1X14.5) |
D (MYB) |
2009-2011 |
01 |
| 024 |
24222646 |
DETENT, MAN SHFT (W/8MM DIA. ROLLER) (ACDelco #24222646) |
DW (MYB) |
2009-2011 |
01 |
| 025 |
|
SEAL, A/TRNS FLUID FLTR (PART OF 26) |
|
2009-2011 |
|
| 026 |
24236933 |
FILTER KIT, A/TRNS FLUID (INCLS 25) (ACDelco #24236933) |
DW29 (MYB) |
2010-2011 |
01 |
| 027 |
24225800 |
GASKET, A/TRNS FLUID PAN (ACDelco #24225800) |
DW29 (MYB) |
2009-2011 |
01 |
| 028 |
29535617 |
MAGNET, A/TRNS FLUID PAN (4.105) (ACDelco #29535617) |
D (MYB) |
2009-2011 |
01 |
| 029 |
24242410 |
PAN, A/TRNS FLUID (INCLS 31) (ACDelco #24242410) |
D (MYB) |
2009-2011 |
01 |
| 030 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (A/TRNS FLUID PAN) |
|
2009-2011 |
17 |
| 031 |
24234212 |
PLUG, A/TRNS FLUID PAN DRN (PART OF 29) (ACDelco #24234212) |
DW29 (MYB) |
2009-2011 |
01 |
| 032 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) |
DW (MYB) |
2009-2011 |
01 |
| 033 |
24225783 |
SEAL, A/TRNS CASE EXTN (ACDelco #24225783) |
DW (MYB) |
2010-2011 |
01 |
| 034 |
24249873 |
EXTENSION, A/TRNS CASE (ACDelco #24249873) |
DW (MYB) |
2010-2011 |
01 |
| 036 |
24228876 |
SEAL, OUTPUT SHF (5.556) |
DW (MYB) |
2009-2011 |
01 |
| 037 |
24214158 |
BEARING, OUTPUT SHF (DRAWN CUP) (4.131) (ACDelco #24214158) |
DW29 (MYB) |
2009-2011 |
01 |
| 038 |
24262396 |
FLANGE, PROP SHF TRANS |
D (MYB, MX0) |
2009-2011 |
01 |
| 039 |
24256278 |
NUT, FRT PROP SHF FLG (M22X1.5X14) |
D (MX0) |
2009-2011 |
01 |
| 040 |
24245885 |
EXTENSION, A/TRNS CASE (MCHG) |
DW (MYB) |
2009-2011 |
01 |
| 041 |
24242995 |
BEARING, OUTPUT SHF (ACDelco #24242995) |
DW (MYB) |
2009-2011 |
01 |
| K01 |
24236928 |
SEAL KIT, A/TRNS ELEC CONN PASG SLEV (INCLS 9, 10) (ACDelco #24236928) |
DW29 (MYB) |
2009-2011 |
01 |
| K02 |
24238913 |
SEAL KIT, A/TRNS SERV (FAILURE TO FOLLOW GM SERVICE BULLETIN 09-07-30-005 MAY RESULT IN THEREJECTION OF A WARRANTY CLAIM) (INCLS 9, 10, 18-20) (INCLS CONTROL VLV SOL ASM) (ACDelco #24238913) |
DW (MYB) |
2010-2011 |
01 |
