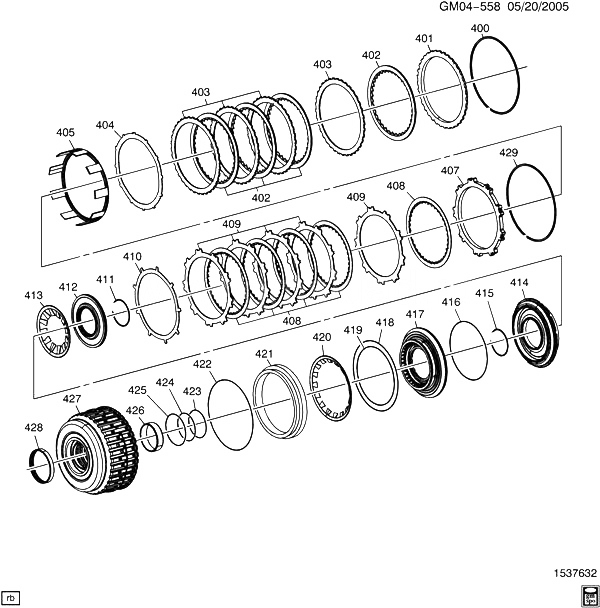

(GM04-558) 2008-2011 D АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MYB) (6L50) 1-2-3-4 3-5 REVERSE CLUTCH ASSEMBLY CADILLAC - STS 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
408 24243586 PLATE, 1-2-3-4 CLU (*KIT4) (ACDelco #24243586) DW29 (LLT, MYB) 2011-2011 05
409 24258077 PLATE, 1-2-3-4 CLU (STEEL) (PART PKG CONTAINS 1 PART) (ACDelco #24258077) DW (MYB) 2008-2011 05
410 24236434 PLATE, 1-2-3-4 CLU (WAVED) (ACDelco #24236434) DW (MYB) 2008-2011 01
411 RING, 1-2-3-4 CLU PSTN DAM RET (*KIT1, KIT2) 2008-2011
412 24225522 DAM, 1-2-3-4 CLU PSTN (ACDelco #24225522) DW (MYB) 2008-2011 01
413 24225559 SPRING, 1-2-3-4 CLU (ACDelco #24225559) DW (MYB) 2008-2011 01
414 24241073 PISTON, 1-2-3-4 CLU (ACDelco #24241073) DW (MYB) 2008-2011 01
415 RING, 1-2-3-4 CLU PSTN HSG RTN (*KIT1, KIT2) 2008-2011
416 SEAL, 1-2-3-4 CLU PSTN (PART OF 417) 2008-2011
417 24238558 HOUSING, 1-2-3-4 CLU PSTN (INCLS 416, 418, 419) (ACDelco #24238558) DW (MYB) 2008-2011 01
417 24238558 HOUSING, 1-2-3-4 CLU PSTN (INCLS 416, 418, 419) (ACDelco #24238558) D (MYB) 2008-2011 01
418 SEAL, 3-5/REV CLU PSTN DAM (O RING) (PART OF 417) 2008-2011
419 SEAL, 3-5-REV CLU PSTN INR (PART OF 417) 2008-2011
420 24236051 SPRING, 3-5-REV CLU (ACDelco #24236051) DW (MYB) 2008-2011 01
421 24238560 PISTON, 3-5/REV CLU (INCLS 422) (4.164) (ACDelco #24238560) DW (MYB) 2008-2011 01
422 SEAL, 3-5-REV CLU PSTN OTR (PART OF 421) (*KIT3) 2008-2011
423 SEAL, 1-2-3-4 CLU PSTN INR (*KIT1, KIT3) 2008-2011
424 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2008-2011
425 SEAL, 1-2-3-4 CLU PSTN HSG (*KIT1, KIT3) 2008-2011
426 BUSHING, 1-2-3-4 3-5/REV CLU HSG RR (PART OF 427) 2008-2011
427 24263589 HOUSING, 1-2-3-4 3-5 REV CLU (INCLS 426) (W/ BUSHING BEARINGS) (ACDelco #24263589) (CONTAINS REQUIRED 1-2-3-4 3-5-REV CLUTCH HOUSING BEARING ASM) (DOES NOT INCL CLU DAM, PSTN, SPRINGS, SEALS, PLTS, OR RETAINERS) DW (MYB) 2008-2011 01
428 24226393 BEARING, 1-2-3-4 3-5-REV CLU (ACDelco #24226393) DW (MYB) 2008-2011 01
429 24240626 RING, 1-2-3-4 CLU BKG PLT RET (GRAY) (2.47-2.57MM) (ACDelco #24240626) DW (MYB) 2007-2011 01
429 24240627 RING, 1-2-3-4 CLU BKG PLT RET (YELLOW) (2.69-2.79MM) (ACDelco #24240627) DW (MYB) 2007-2011 01
429 24240628 RING, 1-2-3-4 CLU BKG PLT RET (ORANGE) (2.93-3.01MM) (ACDelco #24240628) DW (MYB) 2007-2011 01
429 24240629 RING, 1-2-3-4 CLU BKG PLT RET (LT BLUE) (3.13-3.23MM) (ACDelco #24240629) DW (MYB) 2007-2011 01
429 24240630 RING, 1-2-3-4 CLU BKG PLT RET (WHITE) (3.35-3.45MM) (ACDelco #24240630) DW (MYB) 2007-2011 01
429 24240631 RING, 1-2-3-4 CLU BKG PLT RET (YELLOW/PURPLE) (3.57-3.67MM) (ACDelco #24240631) DW (MYB) 2007-2011 01
429 24240632 RING, 1-2-3-4 CLU BKG PLT RET (LT BLUE/PURPLE) (3.79-3.89MM) (ACDelco #24240632) DW (MYB) 2007-2011 01
K01 24238913 SEAL KIT, A/TRNS SERV (FAILURE TO FOLLOW GM SERVICE BULLETIN 09-07-30-005 MAY RESULT IN THEREJECTION OF A WARRANTY CLAIM) (INCLS 411, 415, 423-425) (INCLS CONTROL VLV SOL ASM) (ACDelco #24238913) DW (MYB) 2010-2011 01
K02 24238920 RING KIT, RET (INCLS 411, 415) (ACDelco #24238920) DW (MYB) 2008-2011 01
K03 24238922 SEAL KIT, A/TRNS SERV (INCLS 422-425) (INCL SERVICEABLE SEALS FOR EACH OF THE 5 CLUTCH ASMS) (ACDelco #24238922) DW (MYB) 2010-2011 01
K04 24252458 PLATE KIT, CLU (INCLS 402, 408) (ACDelco #24252458) DW (MYB) 2011-2011 01
400 24240625 RING, 3-5 REV CLU BKG PLT RET (LT GREEN) (2.25-2.35MM) (ACDelco #24240625) DW (MYB) 2007-2011 01
400 24240626 RING, 3-5 REV CLU BKG PLT RET (GRAY) (2.47-2.57MM) (ACDelco #24240626) DW (MYB) 2007-2011 01
400 24240627 RING, 3-5 REV CLU BKG PLT RET (YELLOW) (2.69-2.79MM) (ACDelco #24240627) DW (MYB) 2008-2011 01
400 24240628 RING, 3-5 REV CLU BKG PLT RET (ORANGE) (2.93-3.01MM) (ACDelco #24240628) DW (MYB) 2007-2011 01
400 24240629 RING, 3-5 REV CLU BKG PLT RET (LT BLUE) (3.13-3.23MM) (ACDelco #24240629) DW (MYB) 2007-2011 01
400 24240630 RING, 3-5 REV CLU BKG PLT RET (WHITE) (3.35-3.45MM) (ACDelco #24240630) DW (MYB) 2007-2011 01
400 24240631 RING, 3-5 REV CLU BKG PLT RET (YELLOW/PURPLE) (3.57-3.67MM) (ACDelco #24240631) DW (MYB) 2007-2011 01
401 24225654 PLATE, 3-5 REV CLU BKG (ACDelco #24225654) DW (MYB) 2008-2011 01
402 24225569 PLATE, 3-5/REV CLU (PKG OF 4) (FIBER) (*KIT4) (ACDelco #24225569) DW (MYB) 2007-2011 01
403 24258078 PLATE, 3-5 REV CLU (STEEL) (PART PKG CONTAINS 1 PART) (ACDelco #24258078) DW (MYB) 2008-2011 01
404 24225564 PLATE, 3-5 REV CLU (WAVED) (ACDelco #24225564) DW (MYB) 2008-2011 01
405 24225748 RING, 3-5-REV CLU APPLY (ACDelco #24225748) DW (MYB) 2007-2011 01
407 24265954 PLATE, 1-2-3-4 CLU BKG (KIT) DW (MYB) 2008-2011 01
